Sharp R-9H58 - Appearance View

R-9H58
3

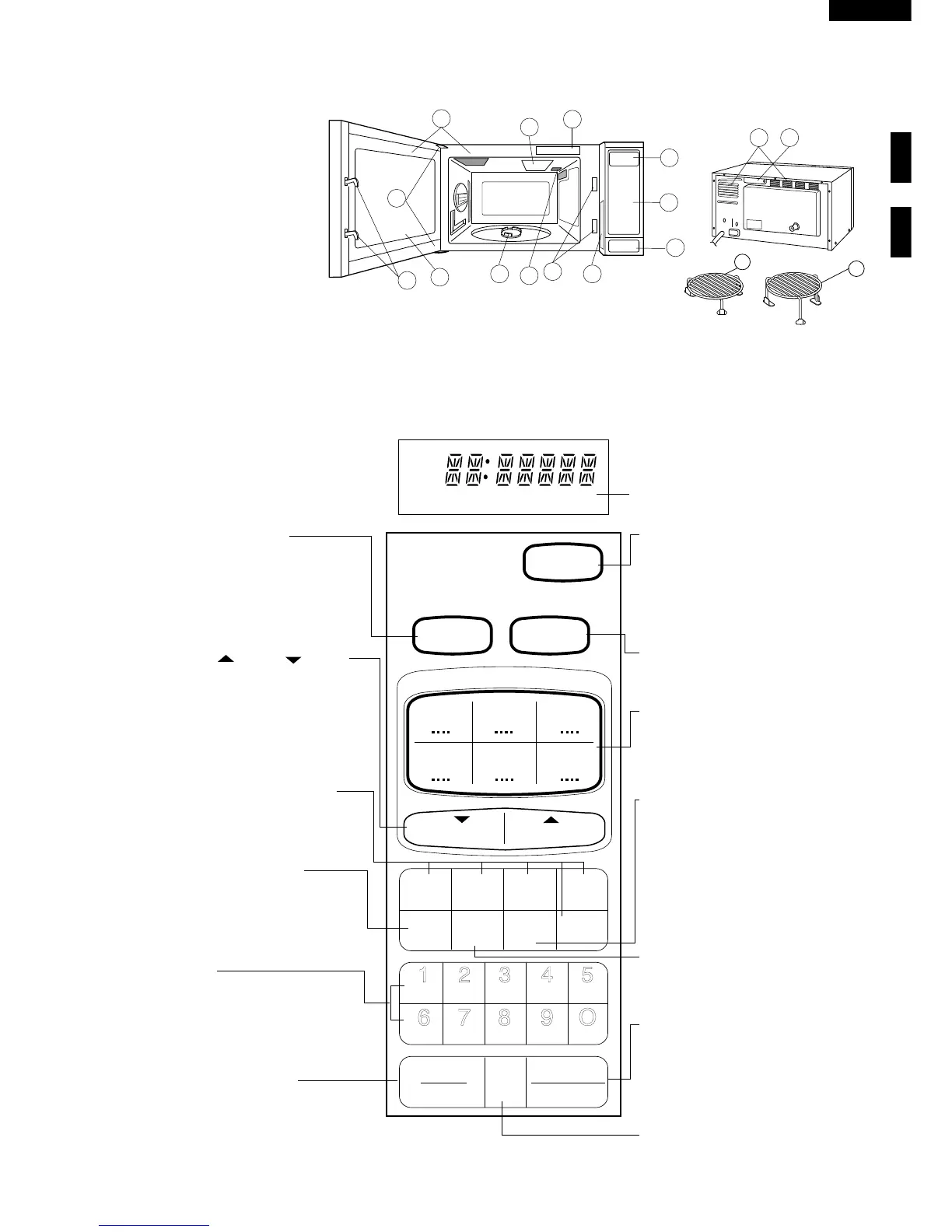

APPEARANCE VIEW
1. Ventilation opening
2. Oven lamp
3. Door hinges
4. Door safety latches
5. See through door
6. Door seal and sealing surfaces
7. Door open button
8. Touch control panel
9. Digital readout
10. Wave guide cover
11. Coupling
12. Access cover for oven lamp replacement
13. Menu label
14. Rating label
15. low rack
16. High rack
TOUCH CONTROL PANEL
15
16
3
4
4
11

7
9
8
5
2
13

1

12

10

6

14

HELP
MULTI
COOK
REHEAT
SENSOR
SENSOR INSTANT ACTION
POWER
LEVEL
EASY
DEFROST
STOP
CLEAR
CLOCK
LOW MIX HIGH MIX
GRILL CONVEC
LESS MORE
MEMORY PREHEAT
Fresh
Vegetables
Frozen
Vegetables
Casseroles Desserts
Reheat
Pie
Jacket
Potato
Info Display
1 2 3 4 5
6 7 8 9 O
I NSTANT COOK 
START
MULTI COOK PAD
Press to select Multi Cook
mode.  





MORE ( ), LESS ( ) PADS 
Press to increase/decrease the
time in one minute increments
during cooking or to alter the
doneness for the Sensor In-
stant Action, Reheat Sensor,
Multi Cook or Easy Defrost
modes.

CONVECTION COOKING
FUNCTION PADS
Press to cook for each func-
tion.

POWER LEVEL PAD
Press to select microwave
power setting.
If not pressed, HIGH is au-
tomatically selected.

NUMBER AND TEMPERATURE
PADS
Press to enter cooking times, clock
time, convection temperature or to
select the Multi Cook menus.



STOP/CLEAR PAD
Press to clear during program-
ming.
Press once to stop operation
of oven during cooking; press
twice to cancel cooking pro-
gram.
HELP PAD
Press to select auto start, in-
formation guide on/off, child
lock, demonstration modes or
info on pad.
Press to get cooking informa-
tion.

REHEAT SENSOR PAD
Press to select 3 popular Reheat
menu.

SENSOR INSTANT ACTION
PADS
Press once to cook or reheat 6
popular menus.


MEMORY PAD
Press to enter the frequently used
cooking program.
Press to recall the memorized pro-
gram.





EASY DEFROST PAD
Press to defrostmeat by enter-
ing weight only.


INSTANT COOK/START PAD
Press once to cook for 1 minute at
HIGH or increase by 1 minute
multiples each time this pad is
pressed during Microwave, Con-
vection, Grill or Mix cooking.

CLOCK PAD
Press to set Clock

Indicator
MIX CONV
DEFROST
SENSOR
COOK KG HELP

40˚C 70˚C 130˚C 150˚C 160˚C
180˚C 200˚C 220˚C 230˚C 250˚C
