Sharp R-CD1200M Service Manual

RCD1200M
6 – 3
SPECIFICATION OF ERROR
Outline Operation when error occurs Display in operation usually
When a basic performance and the function are ruined Displaying and heating stop EE0, EE1, EE2, EE3, EE8
When the dangers of the state of the high temperature and the ignition, etc. are
foreseen
Displaying and heating stop EE7
When you mistake the setting of the heating time Operation stop EE9
When neither the power supply nor the environmental condition are proper Operation stop EE4, EE6
When informing of the exchange time of parts Display Only CC1, CC2, CC3, CC4
Display for
maintenance
Error his-
tory display
Content of maintenance Check item
Parts to be
replaced
CC1 – MG1 exchange time information Using time of MG1 MG1
CC2 – MG2 exchange time information Using time of MG2 MG2
CC3 – Exhaust Fan motor exchange time information Using time of Exhaust motor Exhaust motor
CC4 – T/C unit exchange time information Using number of times of RY2/RY3 Relay unit

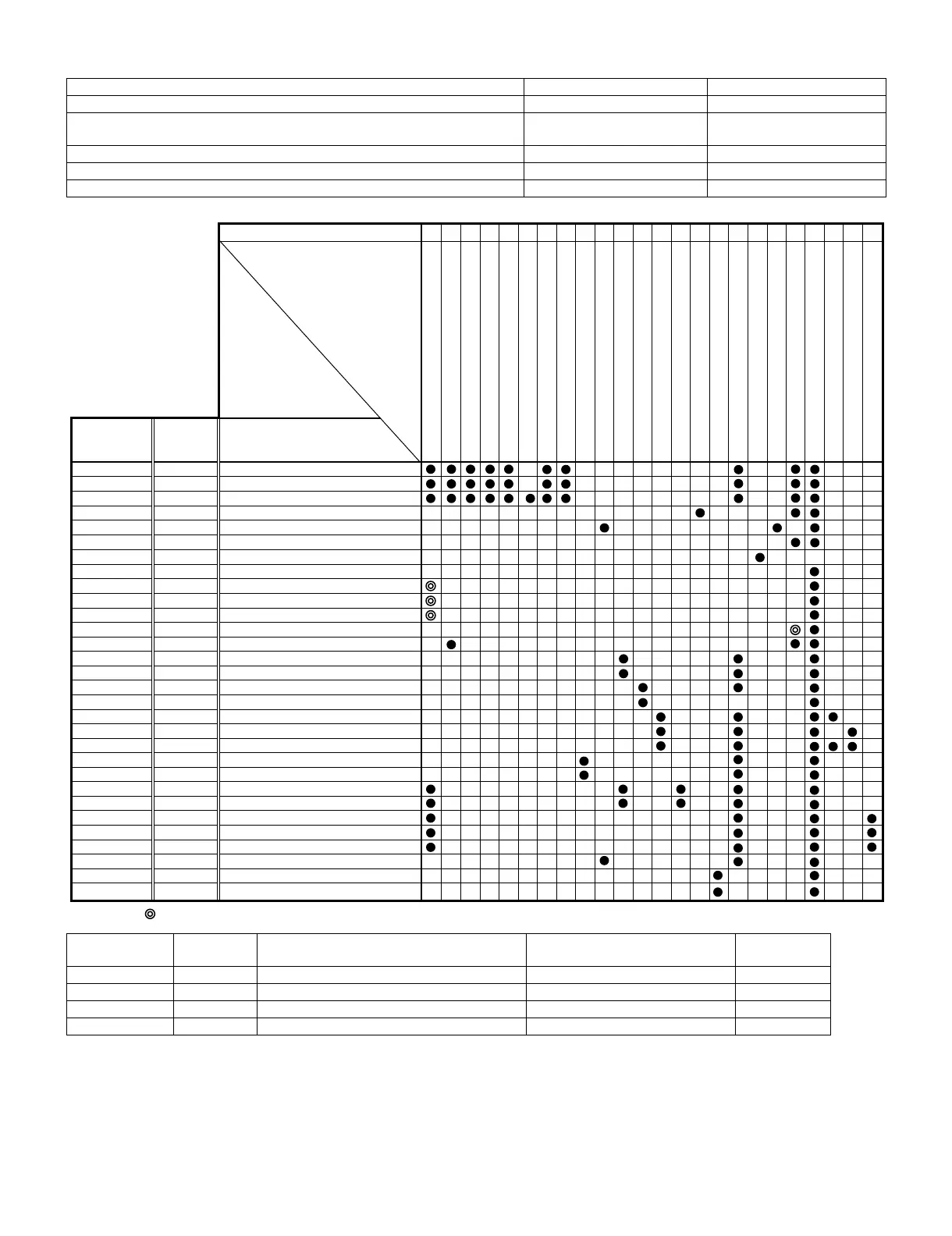

ATEST PROCEDURE
POSSIBLE CAUSE
AND
DEFECTIVE PARTS
BDC E F I JK L QORR S
EE1
EE1
EE2
EE3
EE2
EE3
EE3
EE0
EE0
EE0
EE0
EE0
EE0
EE0
EE8
EE8
EE8
EE8
EE8
EE6
EE6
EE8
EE4
EE7
EE7
EE7
EE8
EE8
EE8
EE9
Magnetron 1and /or 2 Power transformer 1 & 2 High voltage capacitor 1 and /or 2 H.V.rectifier assembly 1 and/or 2 Secondary interlock switch 1 and/or Primary interlock system Fuse 12A 1 and/or 2 Magnetron temp. fuse 1 and/or 2 Magnetron thermistor 1 and/or 2 Exhaust thermistor Fan motors Exhaust motor Antenna motor 1 and/or 2 Air flow blocked High power supply voltage No load or small load operation Loose wiring Exceeding of maxmum cooking time Burned food Relay unit Control unit Antenna sensor (1) (Upper) Antenna sensor (2) (Lower) Microwave sensor
EE 1
Failer of high voltage circuit 1
EE 2
Failer of high voltage circuit 2
EE 3
Failer of high voltage circuit 1&2
EE 4
Too high of input voltage
EE 7
Food burned (temp., too high)
EE 8
Melted contacts of relays
EE 9
Over maximum cooking time
EE 10
EEPROM error
EE 11
Life end of magnetron 1
EE 21
Life end of magnetron 2
EE 31
Life end of magnetron 1&2
EE 81
Life end of relays RY2/RY3
EE 83
Over Current error
EE 14
MG1 Cooling Fan lock judge
EE 24
MG2 Cooling Fan lock judge
EE 44
Exhaust motor lock judge
EE 54
Life end of exhaust motor
EE 15
MG1 antenna rotation error
EE 25
MG2 antenna rotation error
EE 35
MG1/2 antenna rotation error
EE 16
MG1 thermistor open
EE 26
MG2 thermistor open
EE 17
MG1 temperature, too high
EE 27
MG2 temperature, too high
EE 18
Magnetron 1
EE 28
Magnetron 2
EE 38
Magnetron 1& 2
EE 29
Exhaust thermistor open/short
EE 19
No food
EE 39
small food
Error history
display
Usual error
display
Content of error
" " means that the parts should be replaced when EE11, EE21, EE31 or EE81 is indicated on the display.NOTE:
