RCD1200M
10 – 8
8. DOOR CASE REMOVAL
After removing door panel;
1. Remove the five (5) screws holding the key fixing plate to the door
frame.
2. Remove the key fixing plate from the door frame.
3. Remove the front door glass from the door frame, referring to
“FRONT DOOR GLASS REMOVAL”.
4. Remove the door handle, the door lever with the handle cover from
the door frame, referring to “DOOR HANDLE, DOOR LEVER AND
HANDLE COVER REMOVAL”.
5. Remove the one (1) screw holding the latch angle assembly to the
door frame.
6. Remove the latch angle assembly with the door latches from the
door frame.
7. Bend up all nails of the door case.
8. Remove door case from the door frame.
9. Now, the door case is free
9. NOTE FOR POSITION OF HARNESS AND PIPE
Before the door panel is reinstalled, make sure that the pipe should be
positioned at the correct place. And the harness should pass through
the holder of the door frame and the pipe, as shown in Fig.C-7.

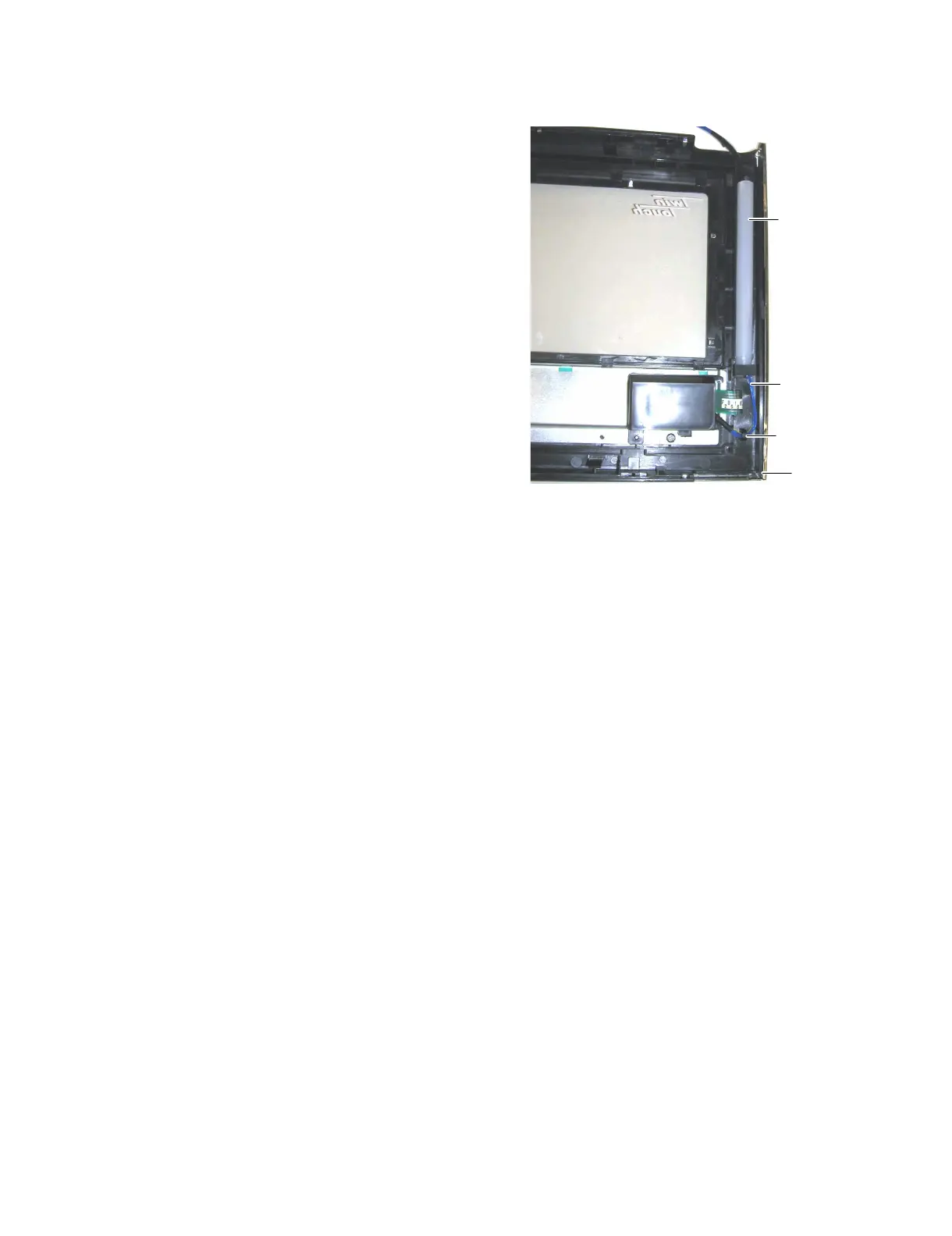

Figure C-7. Inside of door
Pipe
Harness
Holder
Door frame
To Next Page
