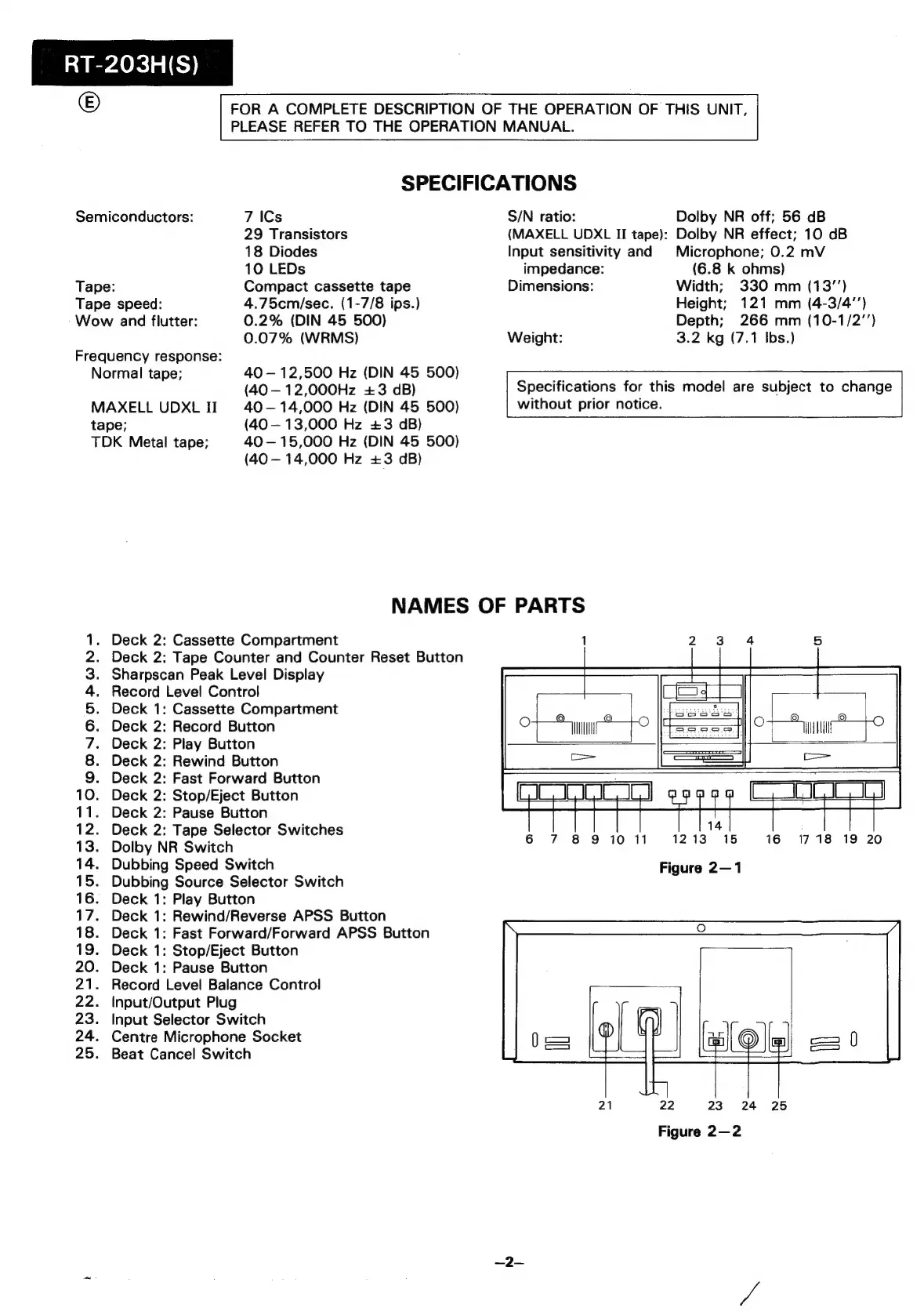

RT-203H(S)
© FOR A COMPLETE DESCRIPTION OF THE OPERATION OF THIS UNIT,
PLEASE REFER TO THE OPERATION MANUAL.
SPECIFICATIONS
Semiconductors: 7 ICs S/N ratio: Dolby NR off; 56 dB
29 Transistors (MAXELL UDXL II tape): Dolby NR effect; 10 dB
18 Diodes Input sensitivity and Microphone; 0.2 mV
10 LEDs impedance: (6.8 k ohms)
Tape: Compact cassette tape Dimensions: Width; 330 mm (13’’)
Tape speed: 4.75cm/sec. (1-7/8 ips.) Height; 121 mm (4-3/4’')
Wow and flutter: 0.2% (DIN 45 500) Depth; 266 mm (10-1/2’’)
0.07% (WRMS) Weight: 3.2 kg (7.1 Ibs.)
Frequency response:
Normal tape; 40— 12,500 Hz (DIN 45 500)
(40—12,000Hz +3 dB) Specifications for this model are subject to change
MAXELL UDXL II 40-—14,000 Hz (DIN 45 500) without prior notice.
tape; (40 — 13,000 Hz +3 dB)
TDK Metal tape; 40— 15,000 Hz (DIN 45 500)
(40— 14,000 Hz +3 dB)
NAMES OF PARTS
Deck 2: Cassette Compartment 1 26-414 | 34 5
Deck 2: Tape Counter and Counter Reset Button
Sharpscan Peak Level Display
Record Level Control
Deck 1: Cassette Compartment
Deck 2: Record Button
Deck 2: Play Button
Deck 2: Rewind Button
Deck 2: Fast Forward Button
10. Deck 2: Stop/Eject Button PIL ILL IL) saesoq LSI
11. Deck 2: Pause Button
12. Deck 2: Tape Selector Switches
13. Dolby NR Switch
14. Dubbing Speed Switch Figure 2—1
15. Dubbing Source Selector Switch
16. Deck 1: Play Button
17. Deck 1: Rewind/Reverse APSS Button
18. Deck 1: Fast Forward/Forward APSS Button
19. Deck 1: Stop/Eject Button
20. Deck 1: Pause Button
21. Record Level Balance Control
22. Input/Output Plug
23. Input Selector Switch
24. Centre Microphone Socket
25. Beat Cancel Switch
SP NOUS ON >
14
6 7891011 1213 15 16 1718 19 20
21 22 23. 24 25
Figure 2—2
pa 1a
