Sharp SJ-44L-WH1 - Cooling Unit

21
SJ-44L
SJ-48L
COOLING UNIT

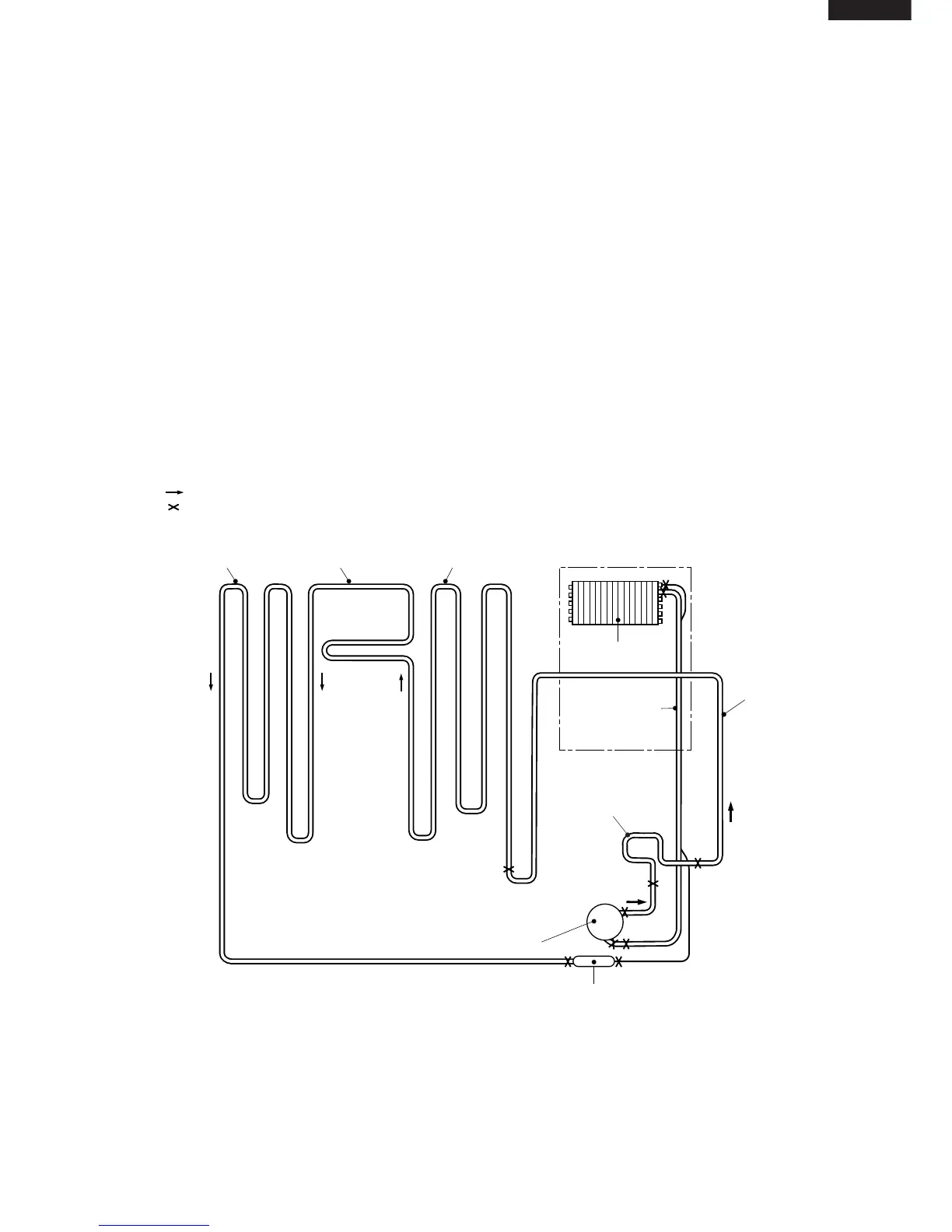

Figure C-1. Cooling unit
Hot pipe L
(Side condenser)
Hot pipe
(DP-condenser)
Hot pipe R
(Side condenser)
Evaporator
Suction pipe
Compressor
Capillary tube
Dryer
Back condens
er
Mark: Refrigerant flow
Mark: Brazing portion
Eva-pan pipe
(3) Installing of Evaporator
(3)-1. Install Evaporator as shown in Fig. A-16 in the
reverse order of Fig. A-17.
(3)-2. Correct the deformed fin.
NOTE
1. When installing Evaporator, take care not to
deform significantly and break the pipes.
2. Take care not to damage the lead wires and hurt
yourself by the fin of Evaporator.
