11 – 4

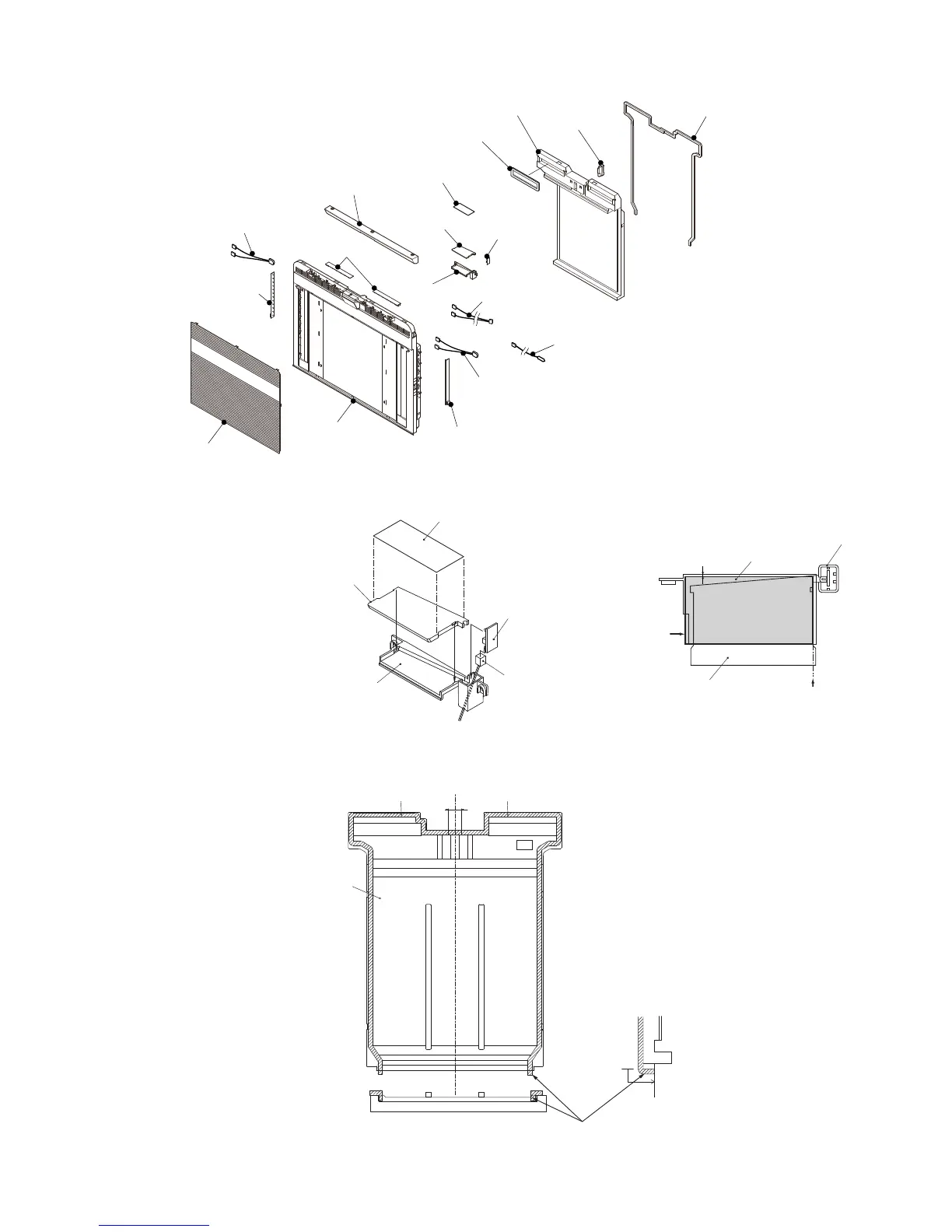

3. Assembling procedures of R-louver ass’y.
1. Connect Pci indicator harness to
Pci pwb ass'y.
2. Insert Pci pwb ass'y into Led holder.
3. Fix Light guide on Led holder.
4. Stick Al sheet l-guide to Light guide
and Led holder.
5. Stick A-sealer r-lv a to R-louver
insu.
A- sealer r-lv a
Plasmacluster
unit
R-louver insu
Pci indicator harness
Lr led harness
Lr led harness
R lamp cover t
Top led pwb ass’y
Lr led pwb ass’y
Al panel
R-louver
LIght guide
Led holder
Pci pwb ass’y
Lr led pwb ass’y
Al sheet l-guide
R thermistor
A-sealer r-lv b
Light guide
Pci pwb ass’y
Pci indicator harness
Pass the harness
through the hole.
Led holder
Al sheet l-guide
Light guide
Al sheet l-guide
40x90mm
Led holder
0~2
Standard for affixing of
Al sheet l-guide
Put the tape which
protruded in the side
A-sealer r-lv a
A-sealer r-lv a
R-louver insu
>PS<
B886
extention
Stick A-sealer r-lv a to
the bottom side.
(Both right and left side)
