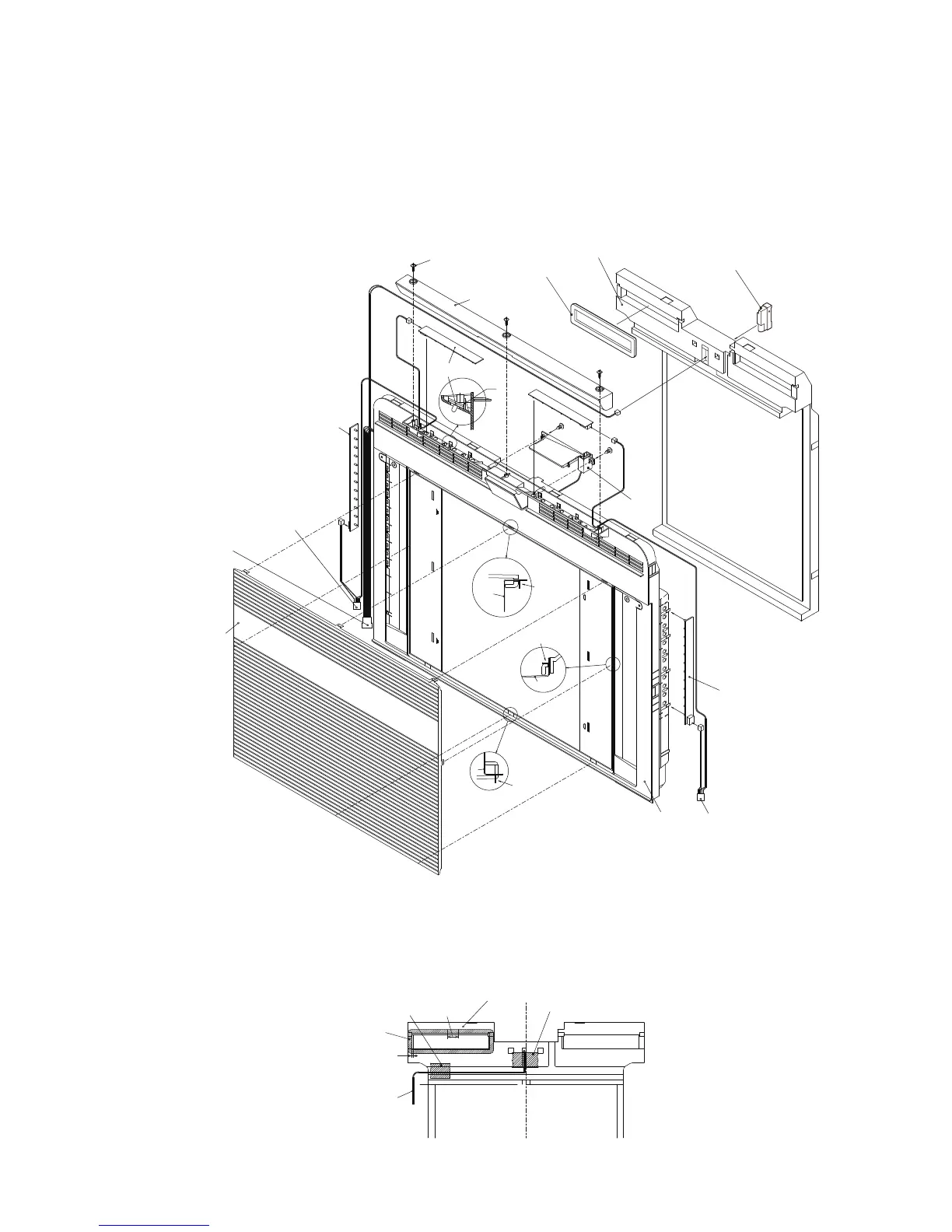

6. Fix Al panel to R-louver.
7. Fix 4) ass'y on the R-louver with tapping screw.
8. Connect Lr led harness to Lr led pwb ass'y and Top led pwb ass'y.
9. Fix 8) ass'y on R-louver.
10.Connect Pci indicator harness to plasmacluster unit.
11.Insert Plasmacluster unit into 5) ass'y.
12.Fix 5) ass'y to R-louver.
13.Fix R lamp cover t by taping screw to R-louver.
14.Fix Plasmacluter unit and Pci indicator harness by buffalo tape to R-louver insu.
15.Stick A-sealer r-lv b to R-louver insu.
?P
?Q
?R?S
R-louver
Al panel
Al panel
Al panel
Al panel
Bend hook
of Al panel
Bend hook
of Al panel
Bend hook
of Al panel
Lr led harness
Pci indicator harness
Lr led harness
Lr led pwb ass’y
T op led pwb ass’y
Hook
T
apping screw
R lamp cover t
Lr led pwb ass’y
Plasmacluter
unit
5) ass'y
4) ass'y
A-sealer r-lv b
Pci indicator harness
R-louver insu
Buffalo tape
30x40
Buffalo tape
30x40
over lap
All around
3
A-sealer r-lv b
