Sharp SJ-P47N-SL

19
SJ-P43N/43N
SJ-P47N/47N

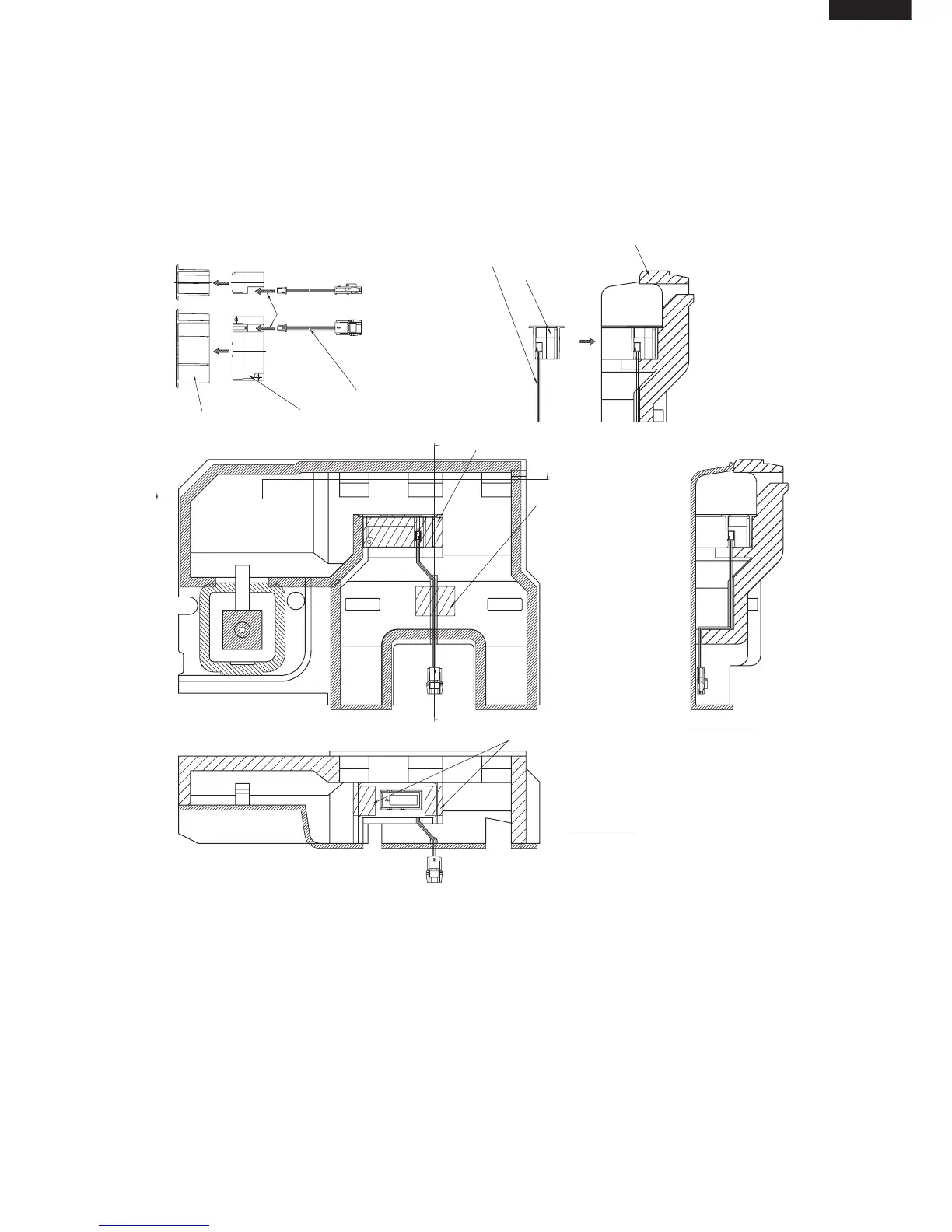

(3) Fixing of the Ionizer-K.(Only for SJ-P43N,P47N)
(3)-1 Connect Ionizer-K and connector of the lead wire.
(3)-2 Insert Ionizer-K to Plasma holder.
(3)-3 Insert the (3)-2 assembly to R air guider A.
２Ｐ
２Ｐ
２Ｐ
２Ｐ
Ionizer-K
R air guider A
Plasma harness
Paper tape W30×100mm
Paper tape W30×40mm
Paper tape W30×40mm
Plasma holder
Ionizer-K
Plasma harness
Connector should insert surely.
SEC. A—A
SEC. B—B
A
B
B
A
