Sharp SMD2470ASY User Manual

5
A
D
G
H
E
C
J
F
I
B
A
B
D
F
G
E
H
P
K
N
O
J
I
I
L
C
M
Q



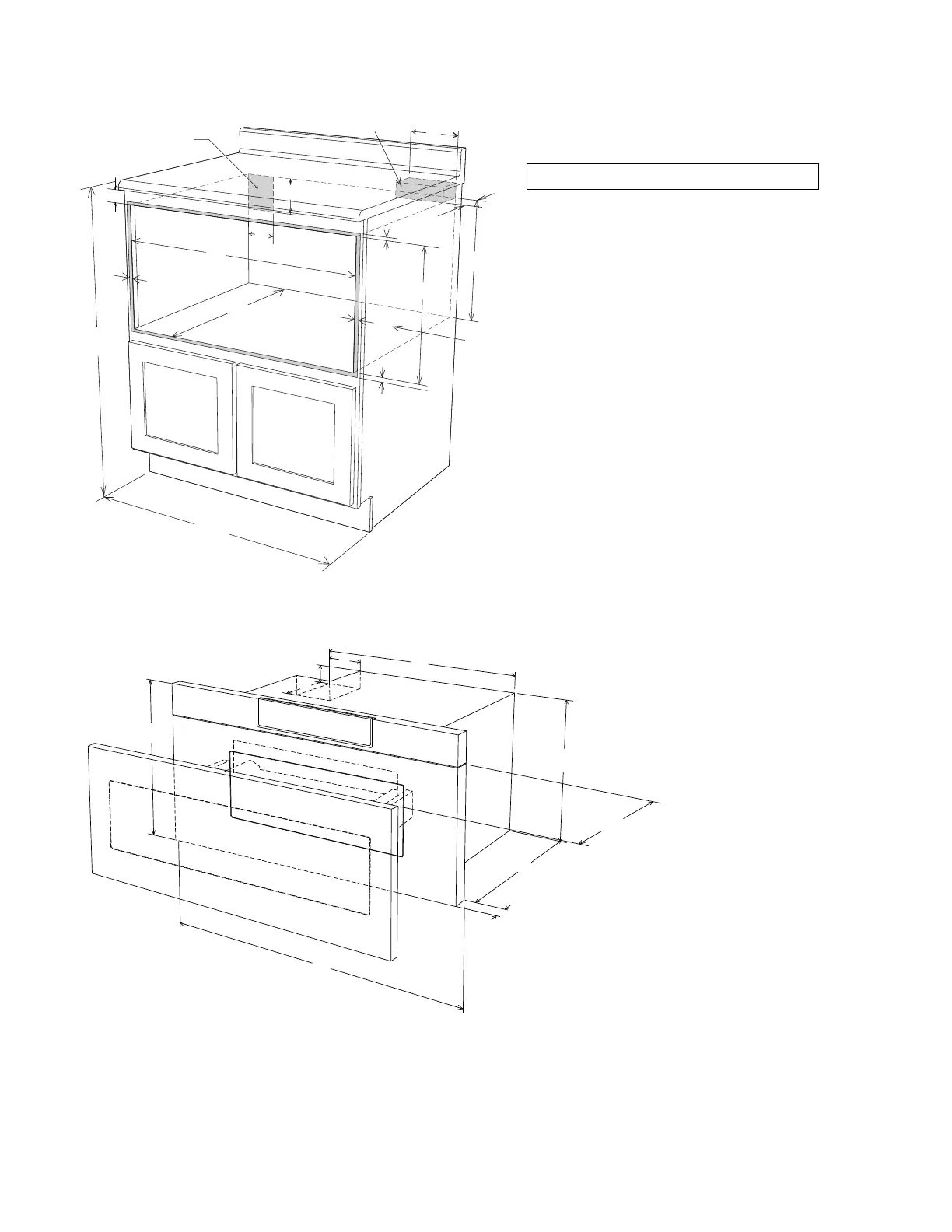

A. 6"
B. Suggested electrical outlet location*
C. Anti-Tip block
D. 5"
E. 3-1/2"
F. 4"
G. 28-7/16" opening
H. 14-13/16" to bottom of Anti-Tip block
I. Allow 23/32" overlap
J. 23-1/2" minimum depth
K. Allow 3/16" overlap
L. 36" countertop height
M. Allow 7/16" overlap
N. Floor must support 100 lb
O. 30" cabinet minimum
P. 15-9/16" opening
Q. Allow 1/8" overlap
A. 21-5/8"
B. 4-11/16"
C. 1-3/4"
D. 21-7/8"
E. 29-7/8"
F. 15-7/8"
G. 14-19/32"
H. 1-9/64" door thickness
I. 15" auto drawer opening
J. 4"
Cutout Dimension 28
7
/16" x 15
9
/16"

Sharp SMD2470ASY Specifications

General

Style	drawer
Color	stainless steel
Total Capacity	1.2 cu. ft.
Convection	no
Sensor Cooking	yes
Quick Start	no
Defrost	6
Control Type	digital front-mounted touch controls
Child Lock	yes
Timer	yes
Interior Light	yes
Microwave Power	950
Electrical Requirements	120v, 60hz / 1.67kw
Voltage	120 volts
Current	14.5a

Weight and Dimensions

Depth	23 1/64 inch
Height	15 7/8 inch
Width	23 7/8 inch
Net Weight	74.0 lbs.
