Preparation
Connecting Peripheral Equipment
Caution
• Be sure to turn off the power and disconnect the plug from the power outlet before connecting/
disconnecting cables. Also, read the manual of the equipment to be connected.
• Be careful not to mix up the input terminal with the output terminal when connecting cables. Mixing up the
input and output terminals may cause malfunctions and other problems.
• After making all connections, turn on the monitor and then the other pieces of equipment. When
connecting a computer, ensure that it is the last equipment to be turned on after all the connections are
made.
• You may need other cables or connectors not listed below.
S-VIDEO IN
VIDEO IN
AUDIO
COMPUTER IN 1 COMPUTER IN 2
MONITOR OUT
HDMI
DVI IN

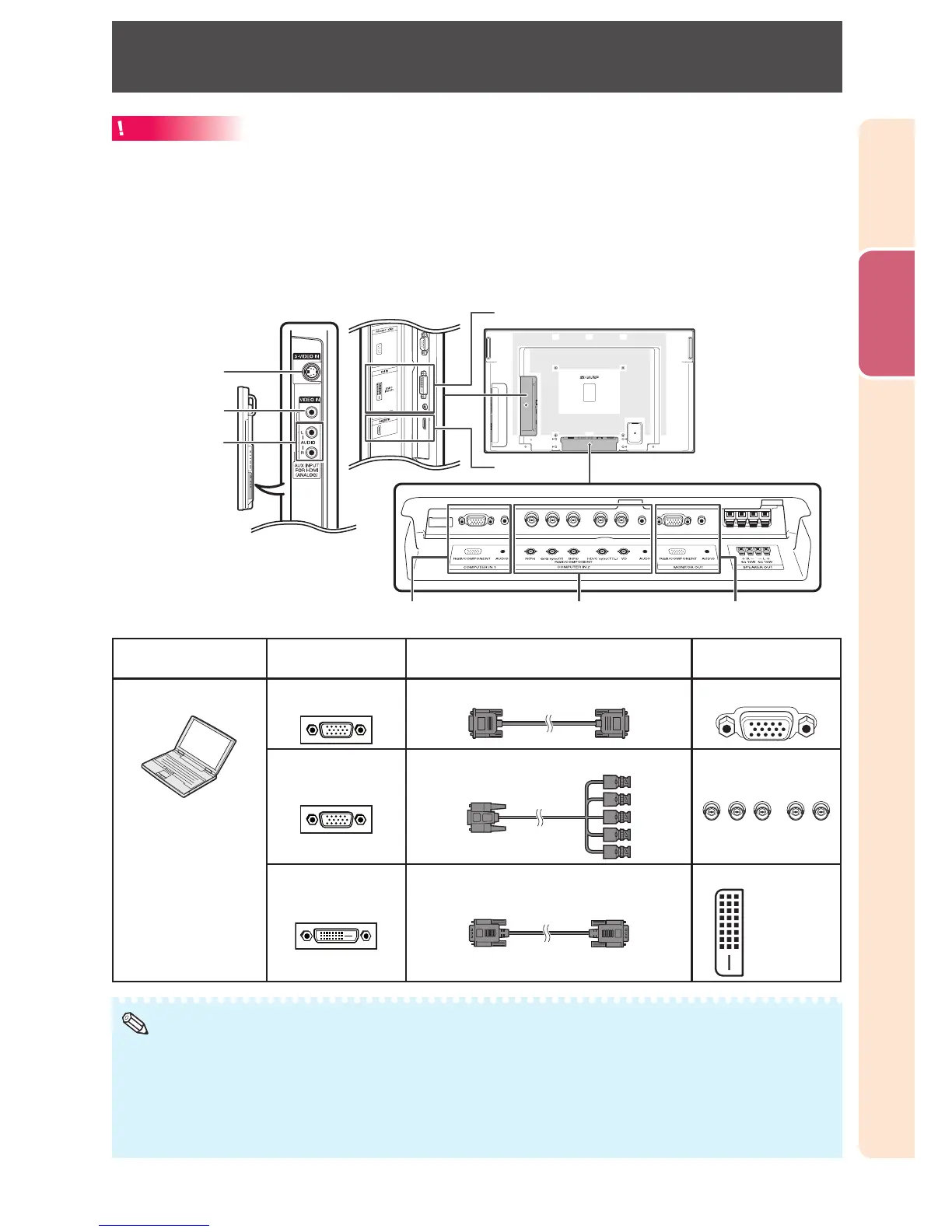

Equipment
Terminal on connected
equipment
Cable (commercially available)
Terminal on the
monitor
Computer RGB output
terminal
RGB cable COMPUTER IN 1
RGB output
terminal
5 BNC to 15-pin D-sub cable COMPUTER IN 2
DVI digital output
terminal
DVI Digital cable DVI IN
DVI-D
(HDCP)
• Images may not be displayed properly depending on the computer (graphics board) to be connected.
• See page
48
“Computer compatibility chart” for a list of computer signals compatible with the monitor.
Use with computer signals other than those listed may cause some of the functions to not work.
• A Macintosh adaptor may be required for use with some Macintosh computers. Contact your nearest Macintosh Dealer.
• Depending on the computer you are using, an image may not be displayed unless the computer’s external output port is
switched on (e.g. Press “Fn” and “F5” keys simultaneously when using a SHARP notebook computer). Refer to the specific
instructions in your computer’s operation manual to enable your computer’s external output port.
