Sharp VC-90ET

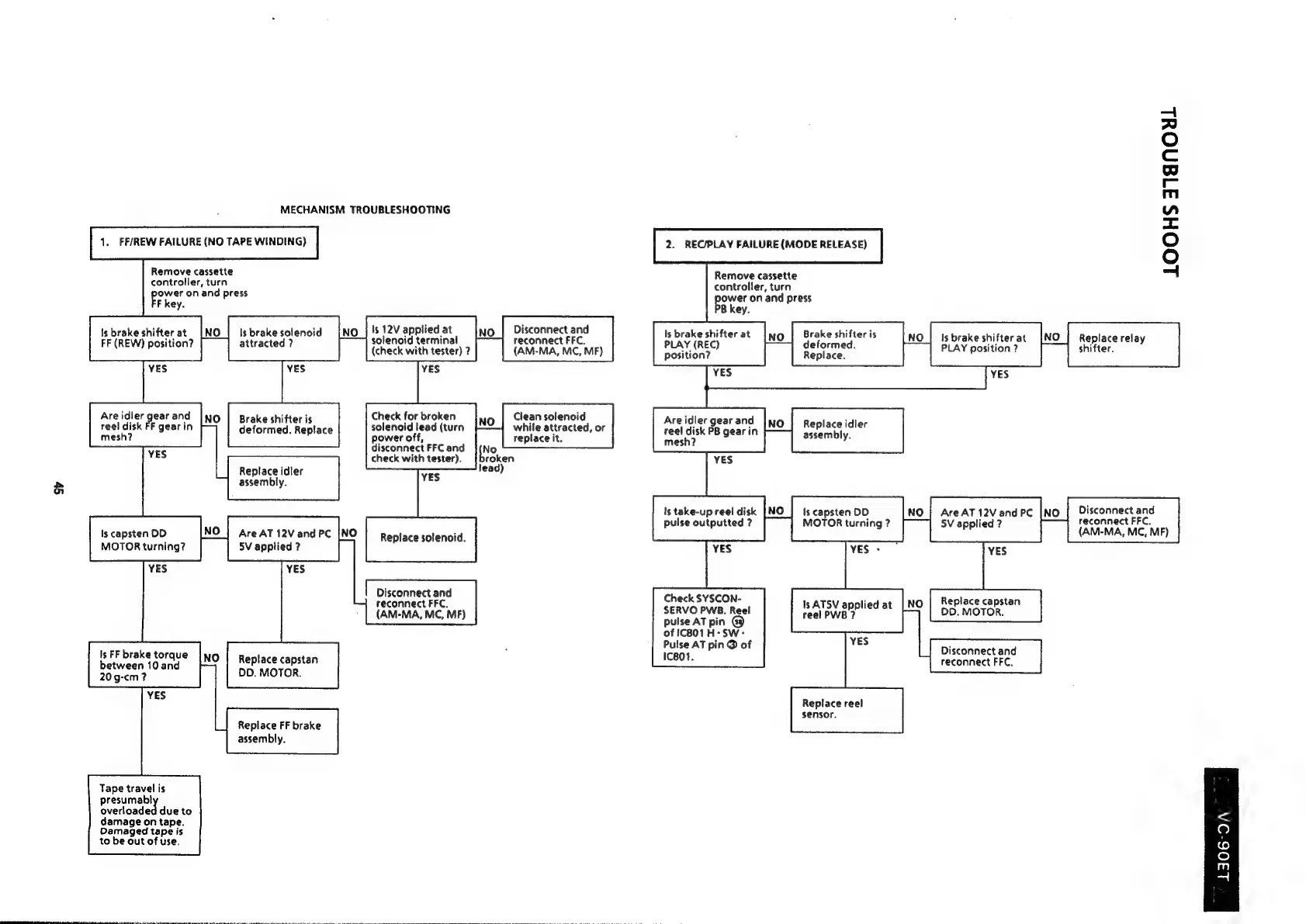

MECHANISM TROUBLESHOOTING
1. FF/REW FAILURE (NO TAPE WINDING)
Remove cassette
controller, turn
pepe on and press
F key.
Disconnect and
reconnect FFC.
(AM-MA, MC, MF)
Is
brake
shifter
at
ts
12V
applied
at
FF (REW) position?
Is brake solenoid
attracted ? solenoid terminal
(check with tester) ?
YES
Areidiergearand [yo
reel disk FF gear in
mesh?
Check for broken
solenoid lead (turn
power off,
disconnect FFC and
check with tester).
Clean solenoid
Brake shifter i
i while attracted, or
deformed. Replace
replace it.
YES
roken
lead)
Replace idler
assembly.
Are AT 12V and PC [NO
5V applied ?
Is capsten OD
f Reptace solenoid.
MOTOR turning?
YES YES
Disconnect and
reconnect FFC,
(AM-MA, MC, MF)
ls FF brake torque
between 10 and
20 g-cm?
Replace capstan
DD. MOTOR.
Replace FF brake
assembly.
Tape travel is
presumabl
overloaded due to
damage on tape.
Damaged tape is
to be out of use.
