11
Dimensions: 257 ⳯ 182 mm
FLE (M) Sdn. Bhd.VC-A420U (10-15)
ANT/CABLE
VCR Rear (Hi-Fi model)
From CATV system
TV Rear
OUTIN
Cable Box

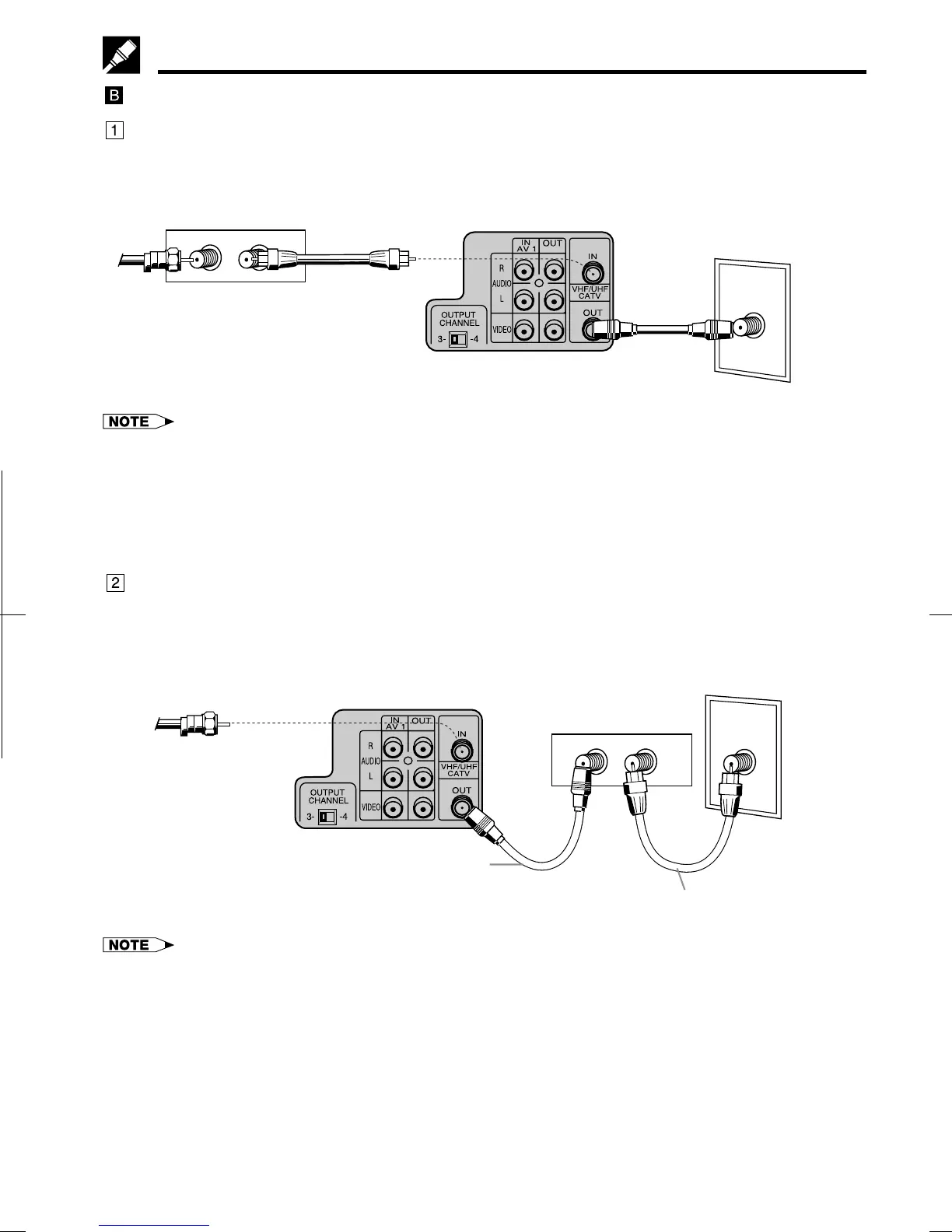

Cable TV Connections
Connection with cable box
• Connect as shown. With this connection, it is possible to record descrambled CATV signals. Then go to “After
the Connection”.
• If the cable box is turned off, it will not output any signals, thus making it impossible to record or view a program from the
CATV system.
• In the case of the above connections, it is not possible to change channels using the VCR remote control. Only the cable
box can be used to change channels.
• Only one channel at a time can be programmed for recording programs with the timer. It is not possible to watch a TV
program different from the one being recorded.
• Depending on which terminals the TV has, a separate combiner (mixer) or separator (splitter) may be necessary.
•Connect as shown. With this connection, it is not possible to record CATV programs which have been
scrambled, but is possible to record one channel and watch the other one. Then go to “After the
Connection”.
Coaxial cable
(Not supplied)
Coaxial cable
(Supplied)
Coaxial
cable
(Supplied)
• With the above connection, ∂/ƒ of the VCR or the numbered buttons on the remote control can be used to select channels.
• Depending on which terminals the TV has, a combiner (mixer) or separator (splitter) may be necessary.
• To record one channel and watch another, the VCR must be set to the TV mode.
Coaxial cable
(Not supplied)
ANT/CABLE
VCR Rear (Hi-Fi model)
Cable Box
TV Rear
OUTIN
From
CATV
system
To Next Page
