Sharp VC-H810U - Page 30

30
VC-A410U
VC-H810U

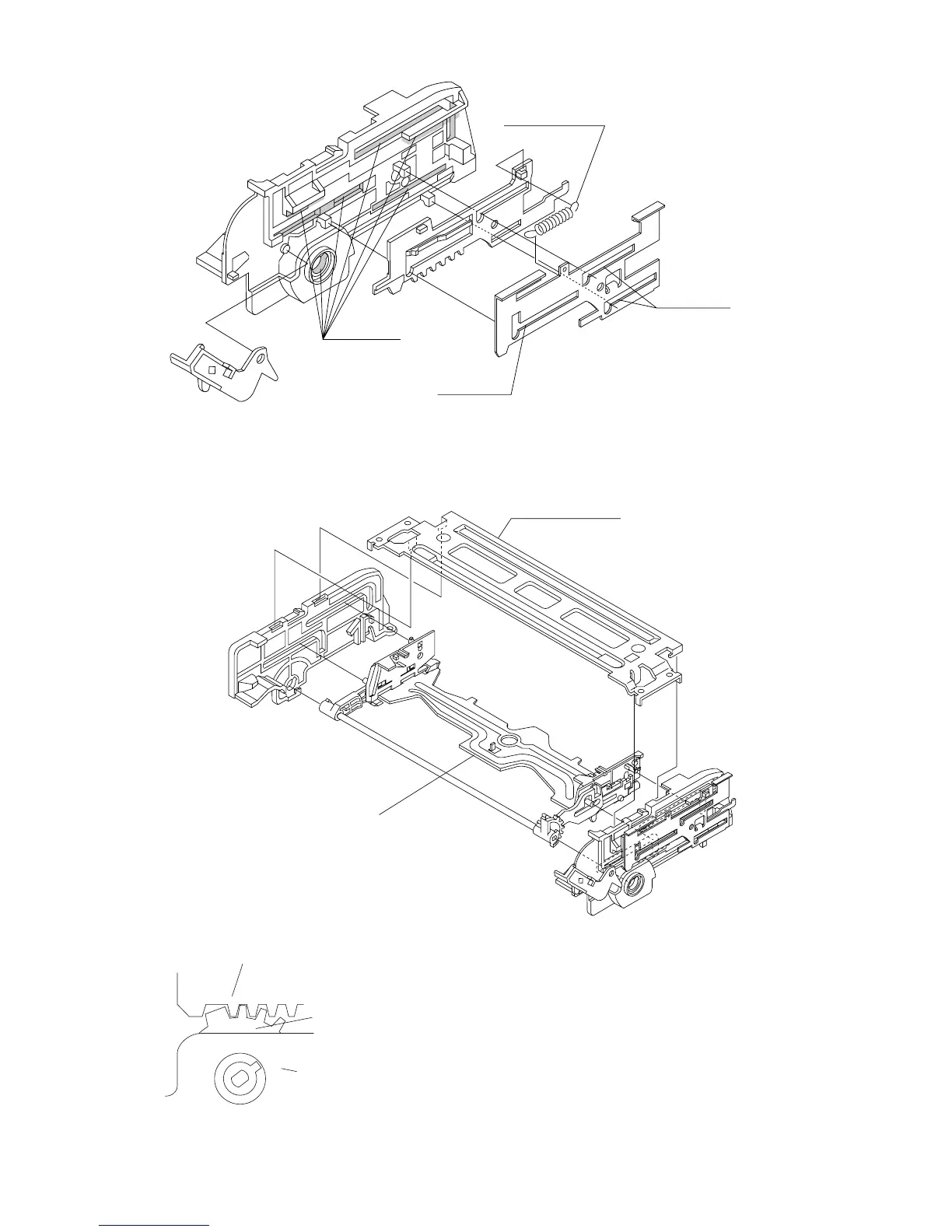

2. Synchro Gear, Drive Gear L and Drive Gear R
4-26 ASSEMBLY OF CASSETTE HOUSING
1. Drive Gear and R Drive angle ass’y
Figure 4-47.
MSPRT0381AJFJ
Apply grease
Apply grease
Apply grease
LANGF9592AJFW
Top surface should be free from scratches or soil.
Drive angle
Drive gear R
Frame
Figure 4-48.
