Ref. No. Part No. ★ Description Code Ref. No. Part No. ★ Description Code
10-23
VL-E610S/VL-E610H
VL-E660S/VL-E96E
VL-E98E
1 PCOVM8016TA00 Dustproof Rubber AC
2 LANGK0324TAFW CCD Retaining Plate AG
3 PFiLW0060TAZZ Optical Filter AS
4 VHiLZ2423H5-1 CCD Sensor BD
5 DUNTK2800PM00 CCD PWB Unit —
6 LX-HZ0013TAFF Screw (1.7 X 6) AA

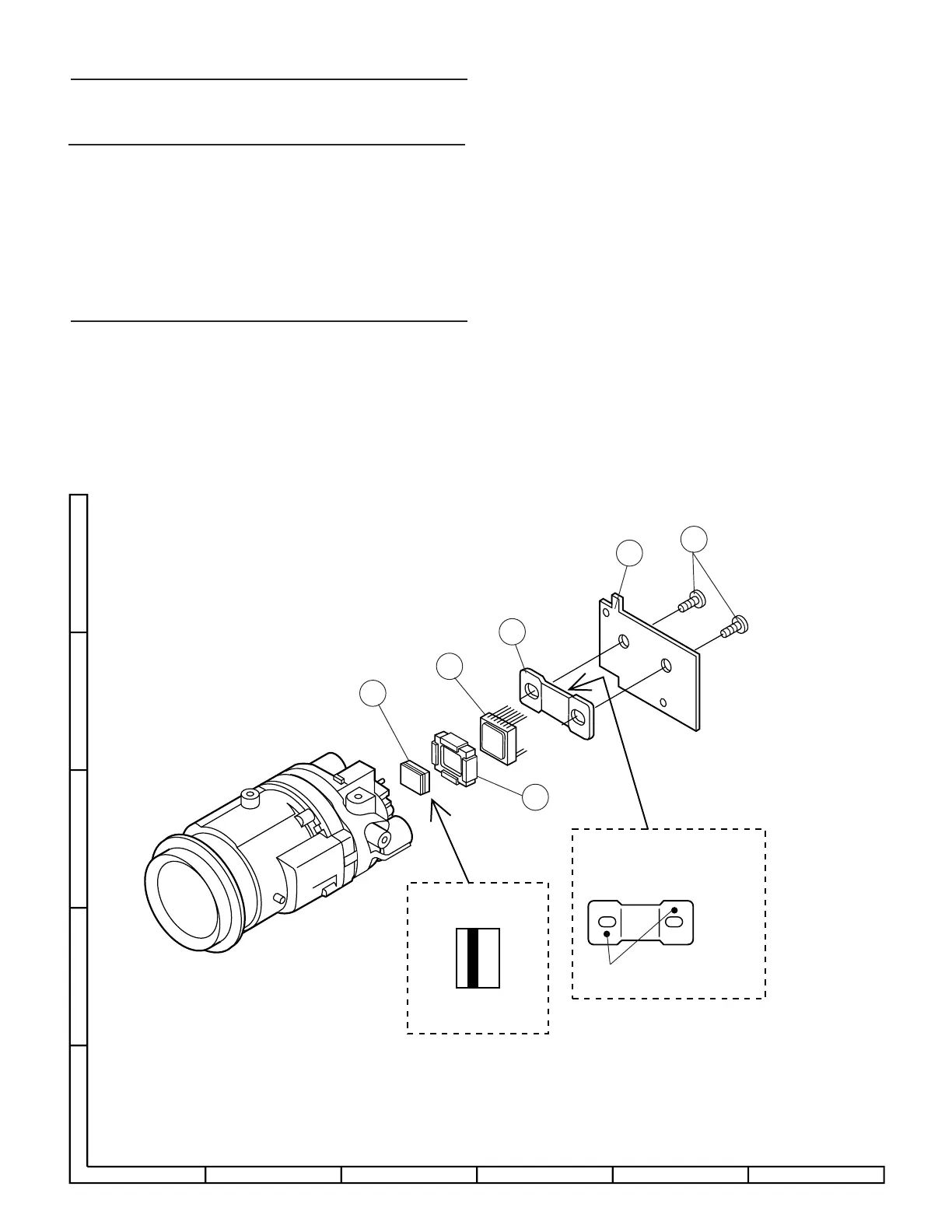

CAMERA UNIT PARTS
4
1
3
Lens
side
CCD
side
Face the thinner part
toward the lens side.
Mark
The mark must be on the face.
5
2
6
A
B
C
D
E
123456
—— End of Camera Unit Parts ——
