4-7
VL-E610S/VL-E610H
VL-E660S/VL-E96E
VL-E98E
Note:
• Tightening torque of screw (1) 70 mN·m
• To check the position, be sure to run the tape.
• If the cassette compartment assembly is removed, it makes the work easier. (Refer to Item 4-5-3.)
4-3-5. Checking the take-up torque for rewind playback (VS-REW)
(1) Remove the cassette compartment ass'y and set to the sensor OFF mode.
(2) Set the torque gauge (TG0045) on the S reel disk, and check in the rewind playback (VS-REW) that the torque at
the supply side is within the specified range.
Standard of take-up torque in rewind playback (SP mode)
31 ± 5 g.cm with ripples less than 5 g.cm.
(If the torque ripples appear, read the center value of torque between the ripples.)
4-3-6. Checking the back tension torque for rewind playback (VS-REW)
(1) Set the torque cassette (8T-032) in position, and check in the rewind playback (VS-REW) mode that the torque at
the tape take-up side is within the specified range.
Standard of back tension torque in rewind playback (SP mode):
14 ± 5 g.cm with ripples less than 5 g.cm
(If the torque ripples appear, read the center value of torque between the ripples.)

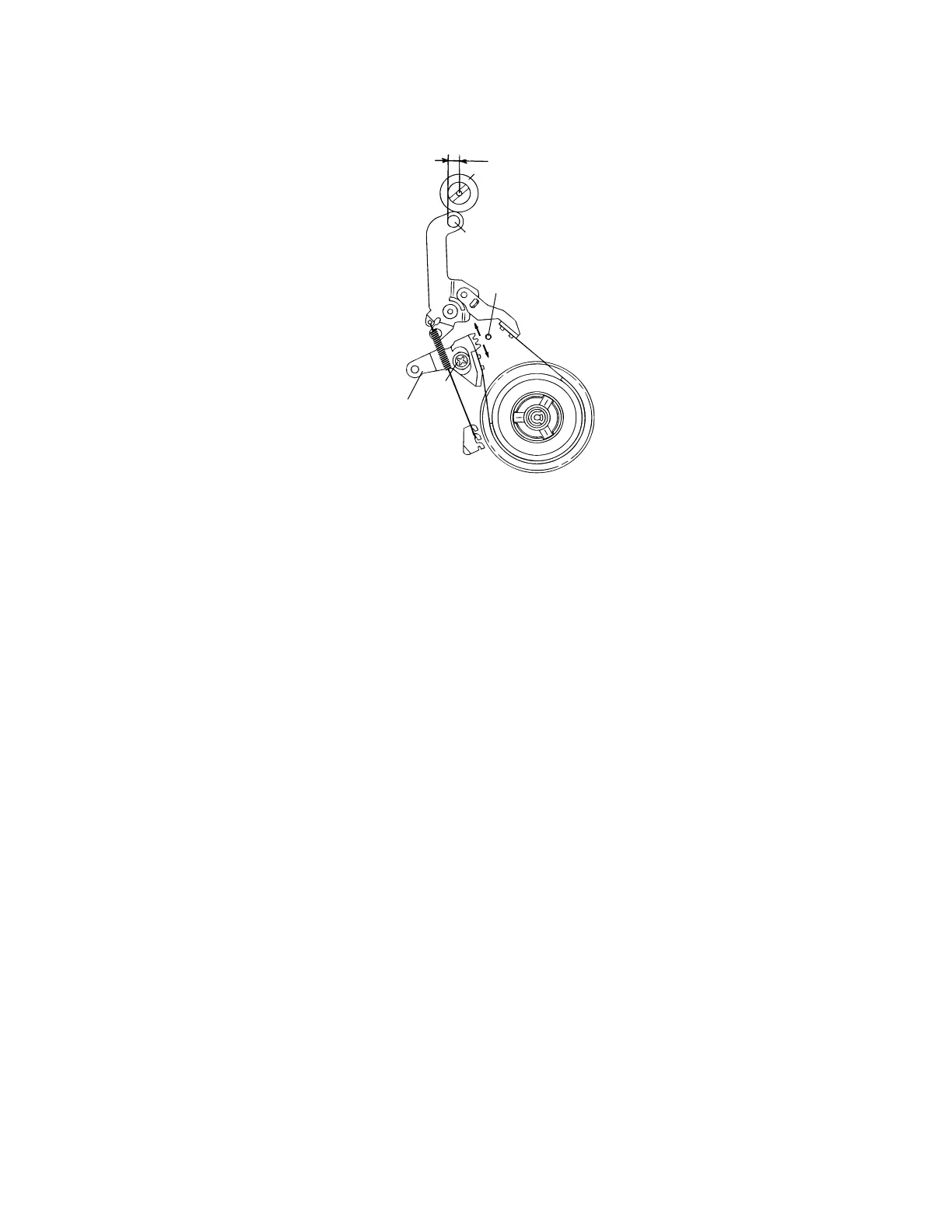

3 – 0.5
0
Si roller
Tension pole
T Band
Holder B
Screw
(1)
(B)
Hole (C)
(A)
To Next Page
