5-2
VL-E610S/VL-E610H
VL-E660S/VL-E96E
VL-E98E
5-1-2. Servicing the VCR section Adjustment

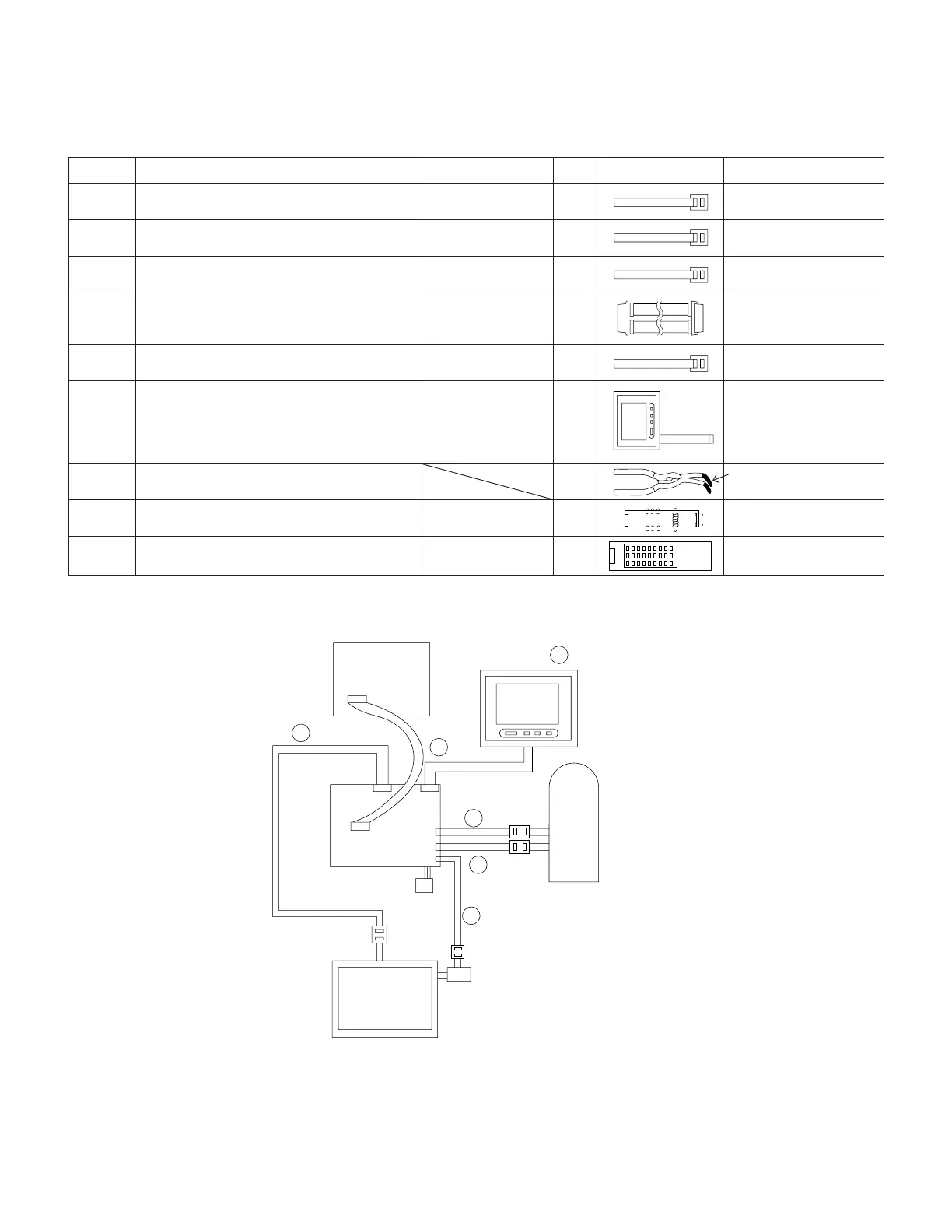

5-1-2-1. Typical connections
1 Extension Cable Inverter~VCR (7pin) QCNW-1265TAZZ AX
2 Extension Cable Camera~VCR (17pin) QCNW-1380TAZZ BD
3 Extension Cable Camera~VCR (15pin) QCNW-1311TAZZ BA
4 Extension Cable MECHA~VCR (70pin) QCNW-1534TAZZ BS
5 Extension Cable LCD~VCR (24pin) QCNW-1382TAZZ BD
6 Operation Unit
QSW-Z0286TAZZ AR
7 Connector fitting and withdrawing
extractor
8 Connector fitting and withdrawing 9EQPiNSET06GE BR
tweezers
9 Service remote control
RRMCG0033TASA
BT
Extension Cable etc.
insulating sleeve
NAMENO.
CONFIGURATION
REMARKS
PART NO.
Code
MECHA
UNIT
4
2
3
1
VCR
UNIT
CAMERA
UNIT
OPERATION
UNIT
INVERTER
LCD
UNIT
5
6
To Next Page
