7-2
VL-E610S/VL-E610H
VL-E660S/VL-E96E
VL-E98E
6-1
* On this model, all the circuits of the VCR and camera sections are controlled by IC703 and IC501.
1) IC501 and IC401 are controlled with the serial data from IC703.
2) IC303, IC702 is a memory that serves to store the adjustment data of the VCR section.
3) IC2 is a memory that serves to store the adjustment data of the camera section.
4) The other circuits and ICs are under the L/H level or the PWM control.

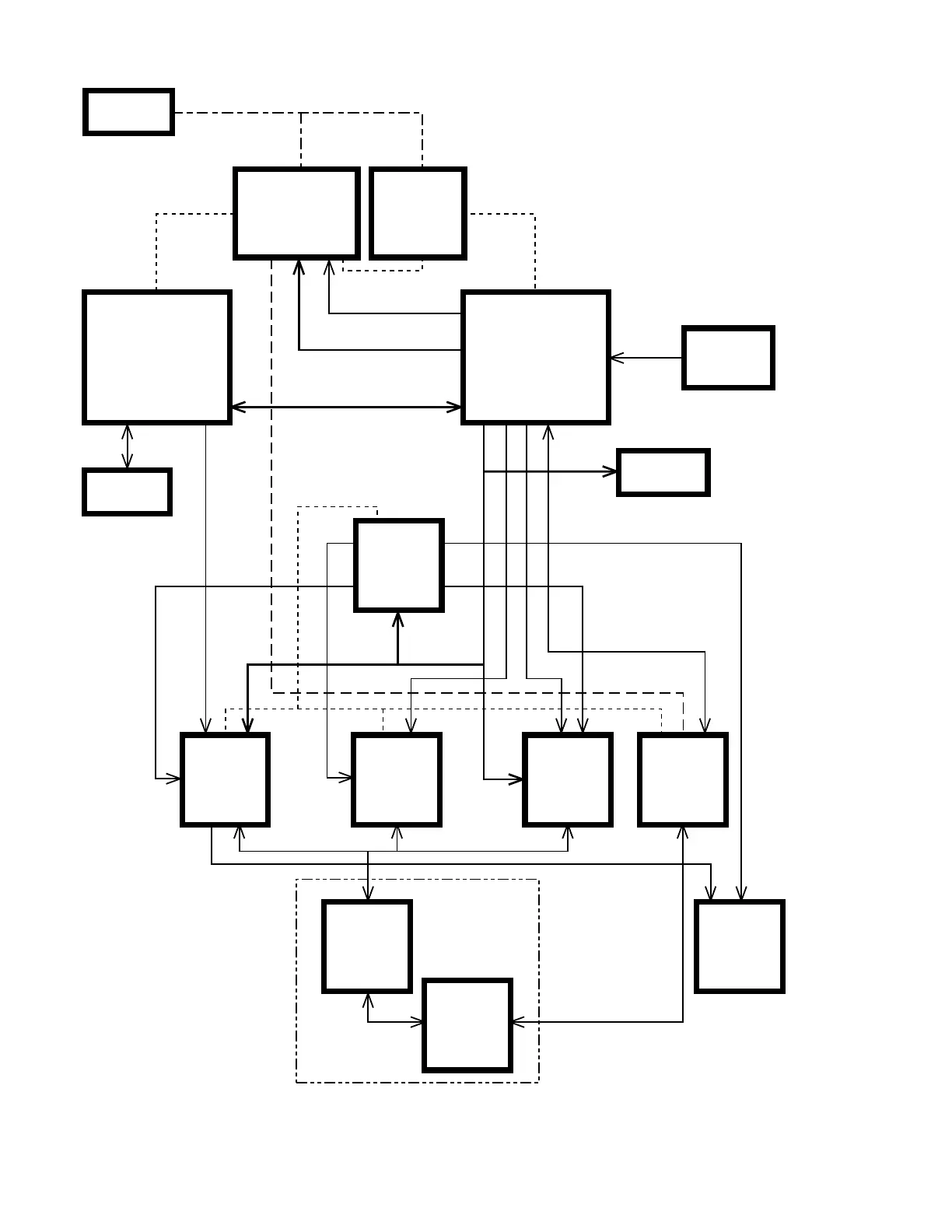

6. SYSTEM BLOCK DIAGRAM
BATTERY
NONREGE 3.6V
IC901
IC501
IC2
IC2701
D/A
IC703
IC702
POWER (CAMERA)
E
2
PROM
E
2
PROM
SERIAL BUS
SERIAL BUS
Y/C AUDIO ATF
SERVO
CIRCUIT
LCD
CIRCUIT
H/A
UNIT
MECHA-
NISM
MECHA-
CHASSIS
POWER (SIGNAL)
POWER (MOTOR)
SYSTEM SERVO
CONTROLLER
KEY
3.3V
Converter
POWER (AT 3.3V)
POWER (SYS 3.3V)
DC/DC
CONVERTOR
CAMERA
MICRO-
COMPUTER
IC701 & Q701
To Next Page
