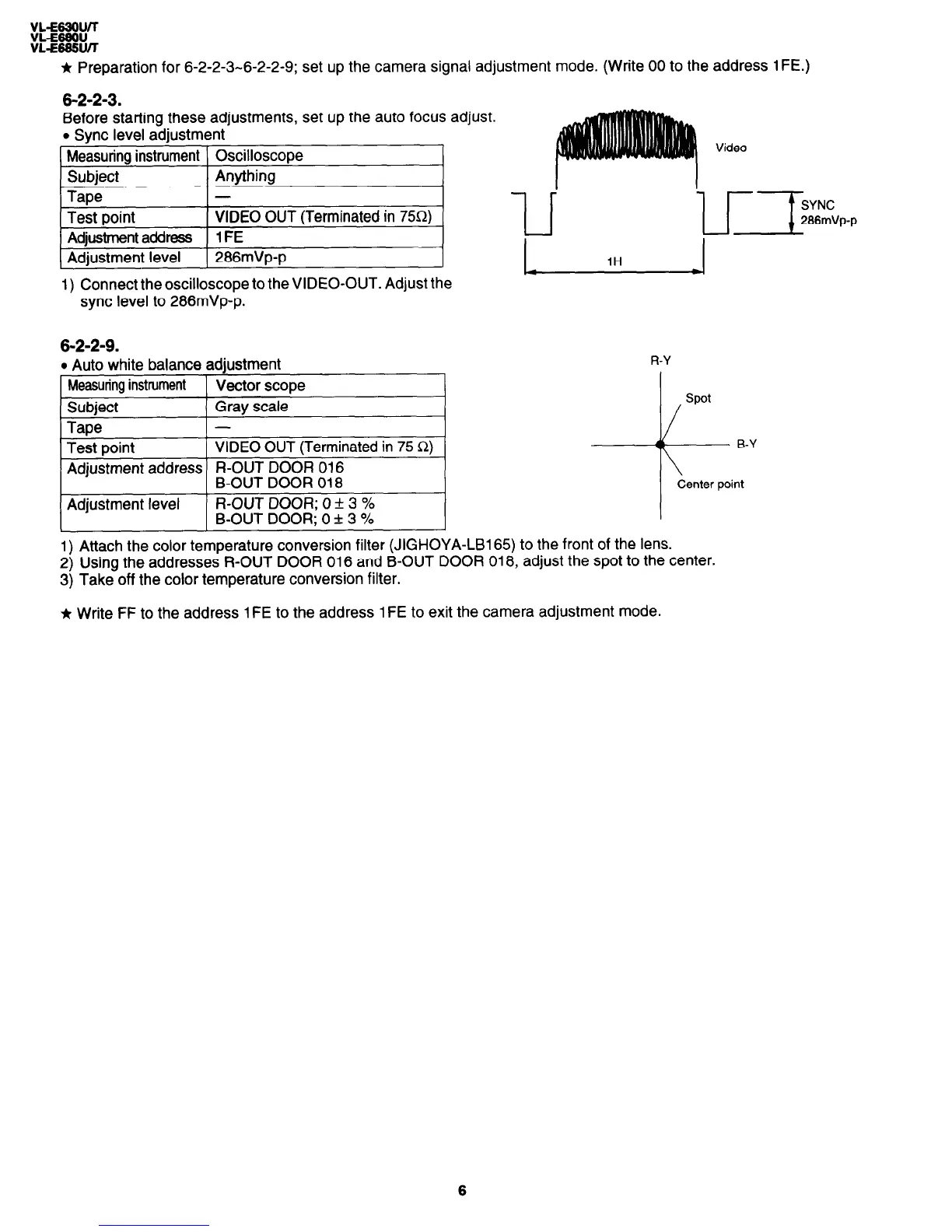

* Preparation for 6-2-2-3-6-2-2-9; set up the camera signal adjustment mode. (Write 00 to the address 1 FE.)
6-2-2-3.
Before starting these adjustments, set up the auto focus adjust.
l Sync level adjustment
Measuring instrument Oscilloscope
Subject
Anything
Tape
-
Test point
VIDEO OUT (Terminated in 75Q)
Adjustment address
1FE
Adjustment level
286mVp-p
1) Connect the oscilloscope to the VIDEO-OUT. Adjust the
sync level to 286mVp-p.
6-2-2-9.
l Auto white balance adjustment
Measuring instrument
Vector scope
Subject
Gray scale
Tape
-
Test point
VIDEO OUT (Terminated in 75 Q)
Adjustment address R-OUT DOOR 016
B-OUT DOOR 018
Adjustment level
R-OUT DOOR; 0 + 3 %
B-OUT DOOR; 0 + 3 %
Video
1H
R-Y
/
spot
1) Attach the color temperature conversion filter (JIGHOYA-LB165) to the front of the lens.
2) Using the addresses R-OUT DOOR 016 and B-OUT DOOR 018, adjust the spot to the center.
3) Take off the color temperature conversion filter.
Ir Write FF to the address 1 FE to the address 1 FE to exit the camera adjustment mode.
To Next Page
