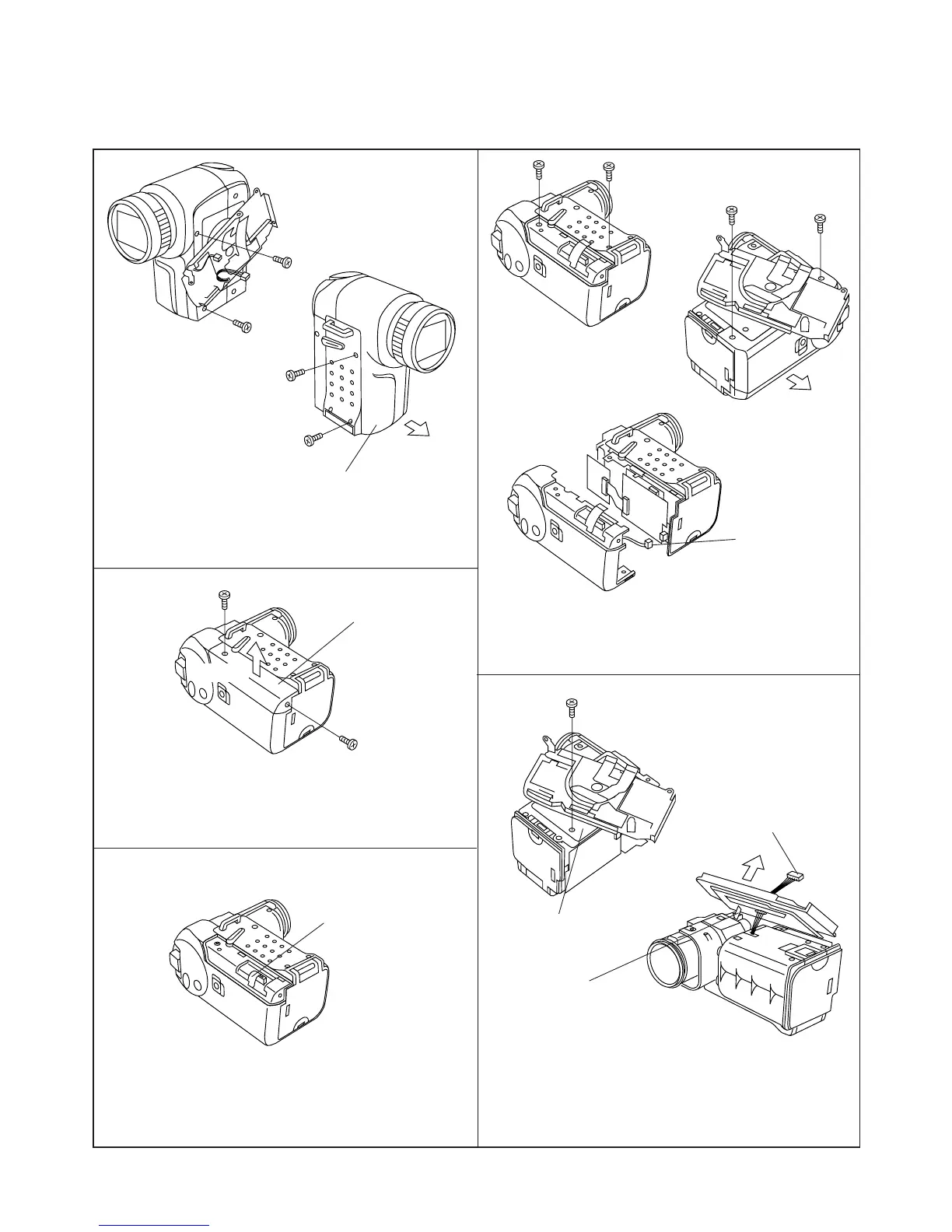

4-2. REMOVAL OF THE CAMERA PARTS
Note:
Before removing the Cabinet, turn off the power supply,and ascertain that the battery has been removed.
1. Remove the screws (b)LX-HZ0018TAFF(1pc.),(a)LX-HZ
0018TAFN(1pc.),(c)LX-HZ0045TAFN(1pc.)and
(d)XiPSF20P04000(1pc.), pull out the Front cabinet.
(g)
(g)
Camera rear grip cover
3. Remove the connector.
2. Remove the screws (g)LX-HZ0045TAFF(2pcs.) and the Cam-
era rear grip cover .
(b)
(d)
4. Remove the screws(b)LX-HZ0018TAFF(1pc.),(c)LX-
HZ0045TAFN(2pcs.)and (d)XiPSF20P04000(1pc.),pulling out
the Camera rear Cabinet, and remove the Speaker connec-
tor.
(c)
(c)
Speaker connector
(c)
Tilt Frame C
Battery catcher connector
Claw
Pull out
Pull out
5. Remove the screw(c)LX-HZ0045TAFN(1pc.)and pull out the
Tilt Frame C.
Pull out the Tilt Frame C. at right angle, because of closing the
claw.
Then, pull out the battery catcher connector from the Tilt
Frame C.
(a)
(c)
Camera front cabinet
(b)
(d)
Pull out
Remove
Connector
