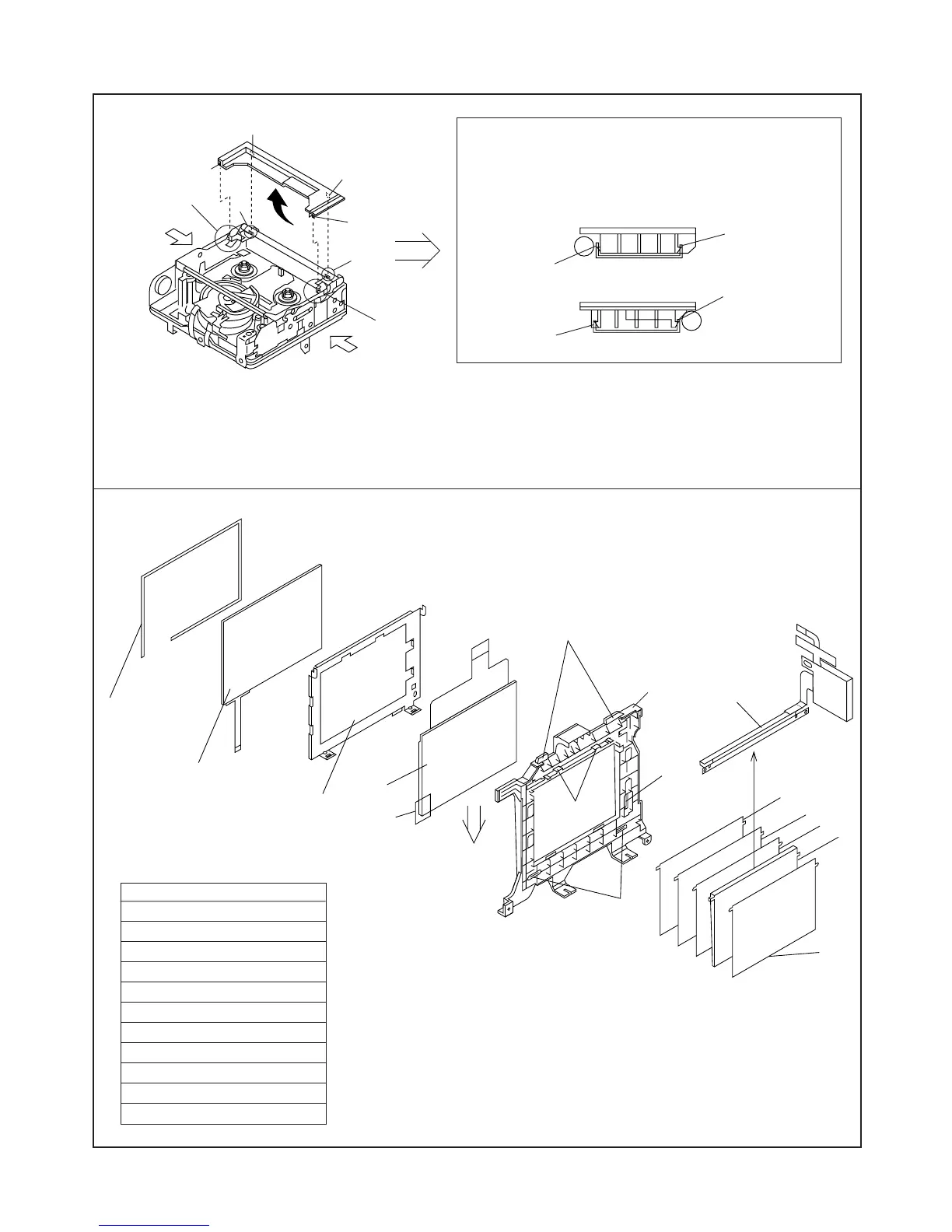

<7. Removal of the cassette compartment lid>
4-3
Claw C
Claw A
Claw B
Claw D
View E
View F
Note:
When fixing the cassette compartment lid, first engage the
claws A and B, and then engage the claws C and D, verify that
the four claws (A, B, C and D) of the cassette compartment lid
are securely engaged as shown in the view below.
F
B
D
A
C
E
D
B
C
A
(1) Using the slotted precision screwdriver, push and turn the two claws (C and D) which fasten the cassette compartment lid, and
the cassette compartment lid will be removed from the hook area of the cassette component.
(2) Turning the cassette compartment lid in the arrow direction, lift it, and the claws A and B will be disengaged to remove the
cassette compartment lid.
Note:
Take care to prevent breaking the claws of the cassette compartment lid.
<8. Removal of LCD Unit>
(B)
(L)
(A)
(I)
(3)
(a)
(D)
(J)
(1)
(K)
(C)
(4)
(2)
(E)
(F)
(G)
(H)
(A) Touch Panel Fitting A
(B) Touch Panel
(C)LCD Panel
(D)LCD Holder A
(E) DBEF Sheet
(F) Prism Sheet
(G)Diffusion Sheet
(H)Light Guide Plate
(I) Reflection Polarizing Sheet
(J) Lamp Inverter
(K) LCD Holding Sheet
(L) Touch Panel Sheet
•At the time of removing from the LCD Holder A(D), and take off the hooks(1)(2pcs.).
•At the time of removing from the LCD Holder A(D), take off (K), remove the FPC from
the hooks(3)(2pcs.), disengage the claw(2), and slide the LCD Panel (C) in the (a)
direction to remove the LCD Holder A (D).
•At the time of removing from the LCD Holder A(D), remove the claws (4)(2pcs.).
``
``
` Refer to the item CABINET EXPLODED VIEW about other parts.
