Sharp WF-2100W - REMOVING AND REINSTALLING THE MAIN PARTS

WF-2100W
– 5 –
REMOVING AND REINSTALLING THE MAIN PARTS
Figure 5-5
Figure 5-4
Record/Playback
Head
Erase
Head
(A1)x1
ø2x3mm
(A1)x1
ø2x7mm
Hook
(A2)x2
TAPE 1
TAPE 2
(B1)x1
ø2x6mm
(B1)x1
ø2x6mm
Playback
Head
Pinch Roller
(C2)x1
TAPE 2
Pinch Roller
Pawl
Pinch Roller
(C1)x1
Pinch Roller
Pawl
TAPE 1
<A>
<B>
<A>
<B>
Figure 5-1
Figure 5-2
Figure 5-3
Motor
(D2)x3
Special Screw
Motor
Bracket
(D1)x2
ø2x4mm
(D1)x2
ø2x4mm
Motor
Motor
Bracket
TAPE 2
TAPE 1
TAPE 2
Main Belt
(F1)x1
TAPE 1
Main Belt
(E1)x1
Motor
Motor
REW/FF
Clutch Ass'y
REW/FF
Clutch Ass'y
Main
Belt
(E1)x1
Main
Belt
(F1)x1
REW/FF
Belt
(F2)x1
REW/FF
Belt
(E2)x1

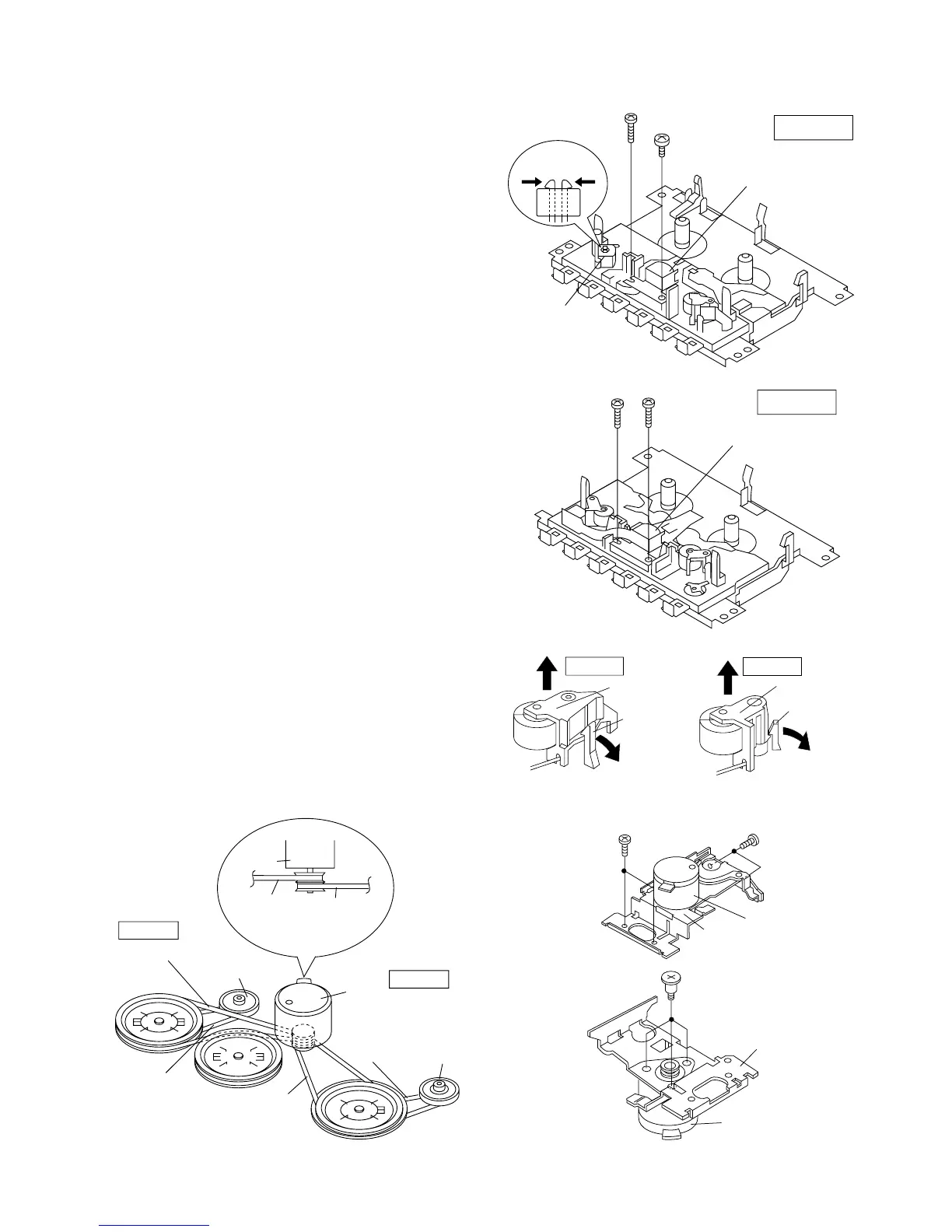

TAPE MECHANISM SECTION
Perform steps 1, 2 and 3 of the disassembly method to
remove the tape mechanism. (See page 4.)
How to remove the record/playback and erase
heads (TAPE 1) (See Fig. 5-1)
1. When you remove the screws (A1) x 2 pcs., the recording/
playback head can be removed.
2. Move the hooks (A2) x 2 pcs., toward the center position as
shown in Fig. 5-1 and then lift the erase head.
How to remove the playback head (TAPE 2)
(See Fig. 5-2)
1. When you remove the screws (B1) x 2 pcs., the playback
head can be removed.
How to remove the pinch roller (TAPE 1/2)
(See Fig. 5-3)
1. Carefully bend the pinch roller pawl in the direction of the
arrow <A>, and remove the pinch roller (C1) x 1 pc. and
(C2) x 1 pc., in the direction of the arrow <B>.
Note:
When installing the pinch roller, pay attention to the spring
mounting position.
How to remove the motor (See Fig. 5-4)
1. Remove the belt.
2. Remove the screws (D1) x 4 pcs., to remove the motor
bracket.
3. Remove the screws (D2) x 3 pcs., to remove the motor.
How to remove the belt (TAPE 1)
(See Fig. 5-5)
1. Remove the main belt (E1) x 1 pc., from the motor side.
2. Remove the FF/REW belt (E2) x 1 pc.
How to remove the belt (TAPE 2)
(See Fig. 5-5)
1. Remove the main belt (F1) x 1 pc., from the motor side.
2. Remove the FF/REW belt (F2) x 1 pc.
