MX-M200D EXTERNAL VIEWS AND INTERNAL STRUCTURES 5-1
[5] EXTERNAL VIEWS AND INTERNAL STRUCTURES

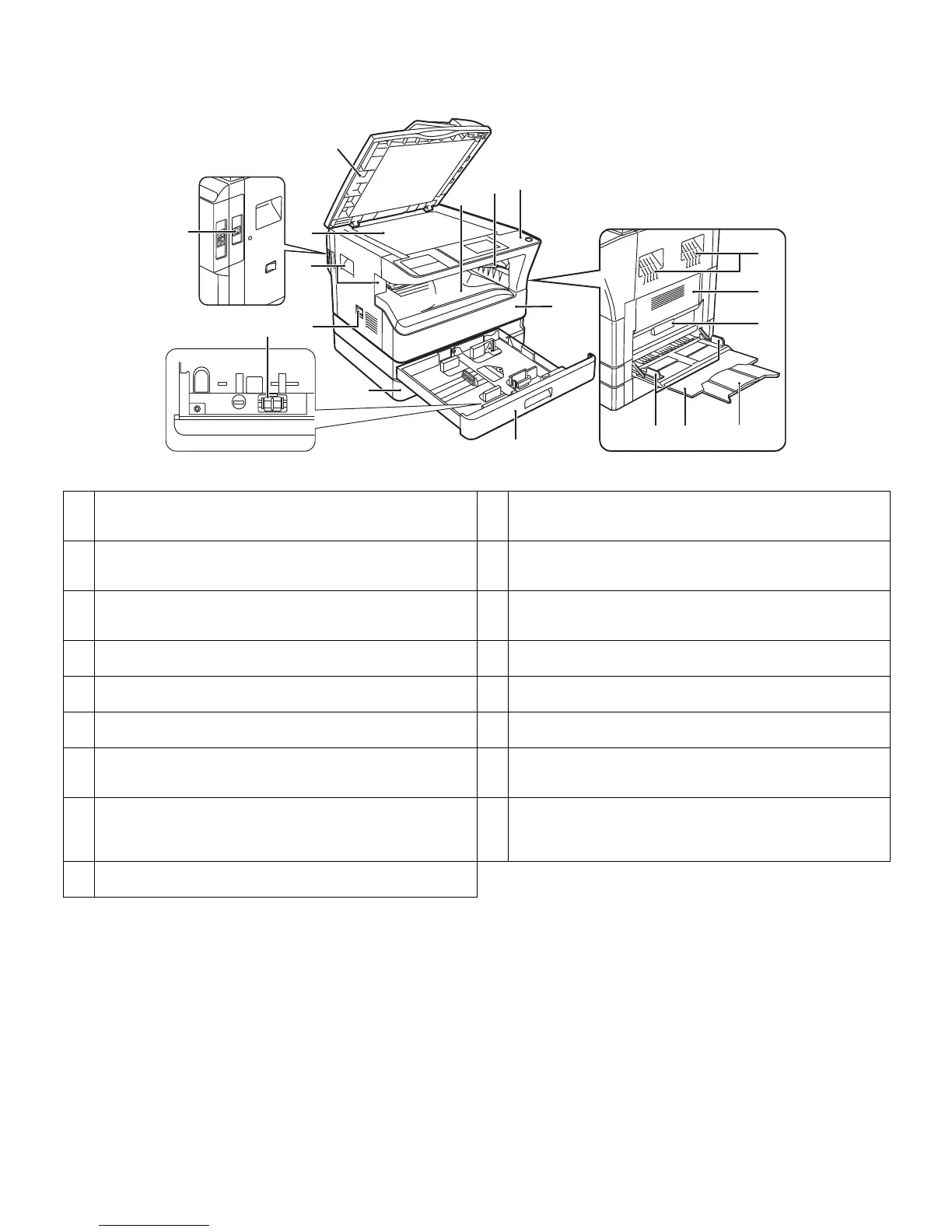

1. Appearance
1 USB 2.0 port
Connect to your computer to this port to use the printer and scanner
functions.
10 Front cover
Open to remove paper misfeeds or replace the toner cartridge.
2 Charger cleaner
Use to clean the transfer charger.
11 Tray 1
Tray 1 can hold approximately 250 sheets of copy paper (20 lbs. (80
g/m
2
)).
3 Glass cleaner
Use to clean the original scanning glass.
12 Tray 2
Tray 2 can hold approximately 250 sheets of copy paper (20 lbs. (80
g/m
2
)).
4 Document glass
Place an original that you wish to scan face down here.
13 Side cover
Open to remove misfed paper.
5 Handles
Use to move the machine.
14 Side cover handle
Pull to open the side cover.
6 Power switch
Press to turn the machine power on and off.
15 Bypass tray guides
Adjust to the width of the paper when using the bypass tray.
7 Center tray
Copies and printed pages are output to this tray.
16 Bypass tray
Special paper (heavy paper or transparency film) can be fed from
the bypass tray.
8 Top tray
(when the job separator tray kit is installed)
Received faxes (when the fax option is installed) and print jobs are
delivered to this tray.
17 Bypass tray extension
Pull out when feeding large paper such as 11" x 17" and 8-1/2" x 14"
(A3 and B4).
9 Operation panel
Contains operation keys and indicator lights.
1
2
3
7
4
5
6
8
9
10
11
171615
5
14
13
12
