XG-P25X
65

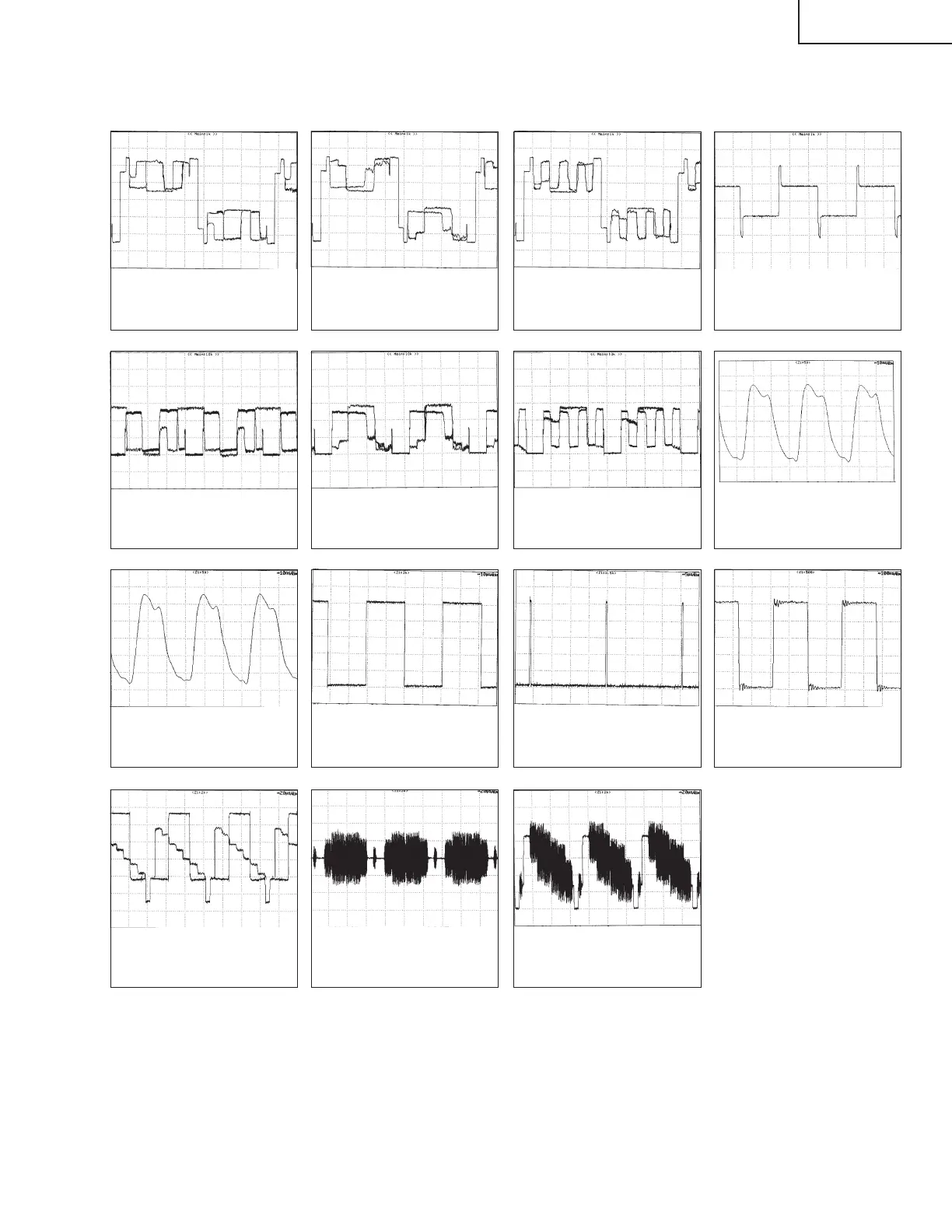

1 (R), TP1101
H:5µsec/div
V :2V/div
2 (G), TP1201
H:5µsec/div
V :2V/div
3 (B), TP1301
H:5µsec/div
V :2V/div
4 P-SiG
H :10µsec/div
V :2V/div
5 (R), Pin 10 of SC8405
H:5µsec/div
V :0.5V/div
6 (G), Pin 6 of SC8405
H:5µsec/div
V :0.5V/div
7 (B), Pin 2 of SC8405
H:5µsec/div
V :0.52V/div
8 Q5302
H :10nsec/div
V :0.2V/div
9 Q5304
H:10nsec/div
V :0.2V/div
0 VST
H:10µsec/div
V :1V/div
q HST
H:5µsec/div
V :1V/div
w HCK2.2
H :100nsec/div
V :1V/div
e Pin 14 of P4303
H:20µsec/div
V :0.2V/div
r Pin 12 of P4303
H:20µsec/div
V :0.2V/div
t Pin 1 of P4303 Video
H:20µsec/div
V :0.2V/div
WAVEFORMS / WELLENFORMEN
