Sharp XG-P25X Service Manual

XG-P25X
8

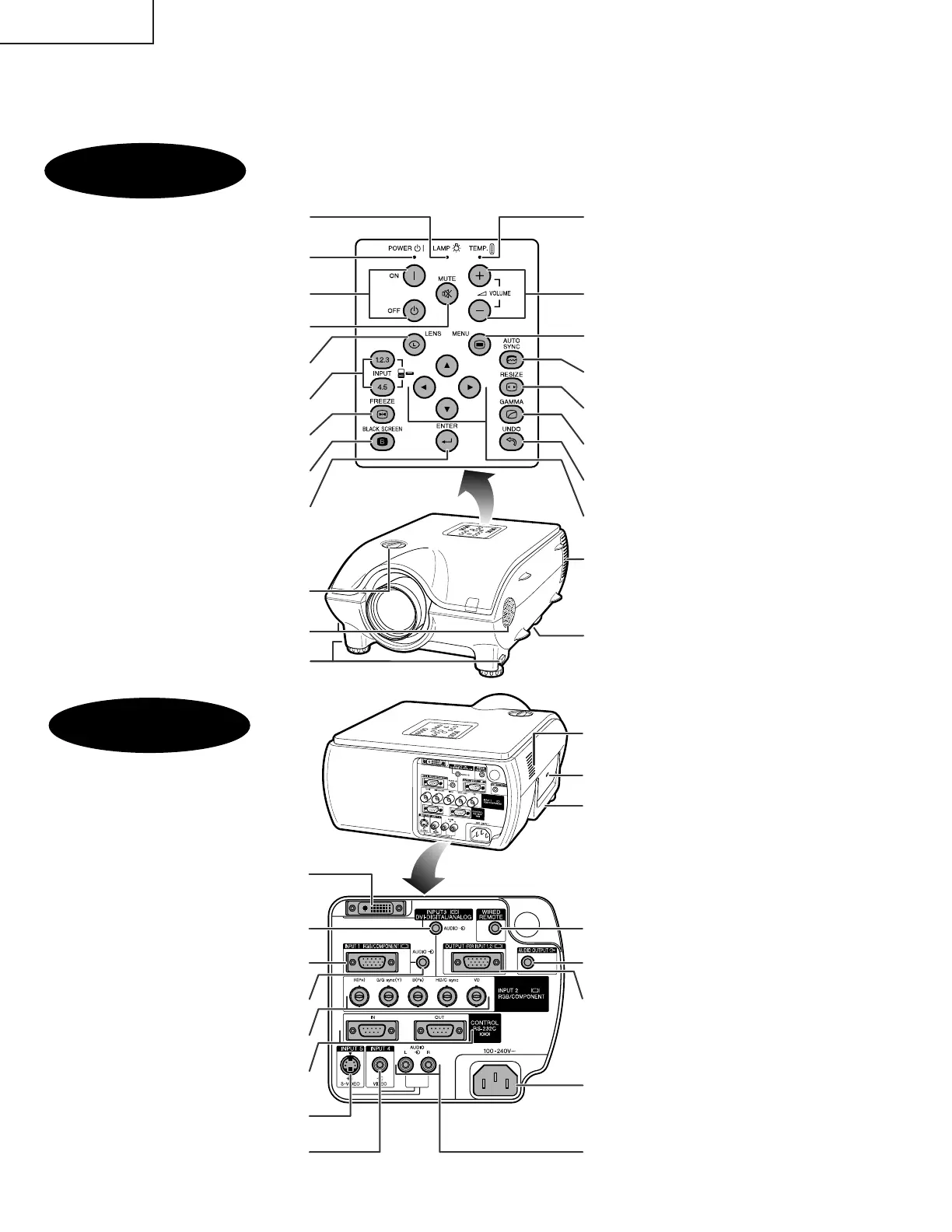

Location of Controls
Front View
Projector
MUTE button
VOLUME buttons ( / )
MENU button
ADJUSTMENT buttons
(///)
AUTO SYNC button
RESIZE button
GAMMA button
Foot releases
POWER buttons (ON/OFF)
LENS button
ENTER button
INPUT 1, 2, 3, 4, 5 buttons
FREEZE button
BLACK SCREEN button
UNDO button
LAMP REPLACEMENT indicator
POWER indicator
Rear View
Air filter/Cooling fan
(Intake vent)
Cooling fan (Exhaust vent)
RS-232C INPUT port/
RS-232C OUTPUT port
INPUT 1 port (15-pin Mini D-sub)
VIDEO INPUT 4 terminal (RCA)
INPUT 3 port (DVI)
INPUT 2 terminals (BNC)
Computer AUDIO INPUT 2/3 terminal
(ø3.5 mm stereo minijack)
Computer AUDIO INPUT 1 terminal
(ø3.5 mm stereo minijack)
AUDIO OUTPUT terminal
(ø3.5 mm stereo minijack)
WIRED REMOTE control
input terminal
(ø3.5 mm stereo minijack)
OUTPUT port (15-pin Mini
D-sub) for INPUT 1, 2
AUDIO INPUT 4/5
terminals (RCA)
TEMPERATURE WARNING
indicator
S-VIDEO INPUT 5 terminal
(4-pin Mini DIN)
AC socket
Speakers
Kensington Security
Standard connector
Cooling fan (Intake vent)
Carrying handle
Lens shift dial
|
|
|
|
-+

Sharp XG-P25X Specifications

General

Resolution	1024 x 768 pixels
Dimensions (WxDxH)	319 x 155 x 423 mm
Display diagonal	1.3 \
Noise level	37 dB
Contrast ratio (typical)	600:1
Lamp power	270 W
Light source type	Lamp
Service life of light source	1500 h
Number of built-in speakers	2
Market positioning	Portable

Weight and Dimensions

Weight	9700 g
