Accessories
Optional lenses
No lens is attached to XG-P560W-N. The standard zoom lens is attached to XG-P560W.
The optional lenses from Sharp are also available for specialized application. Please see
your nearest Sharp Authorized Projector Dealer for details on all the lenses. (Refer to the
lens operation manual when using a lens.)
Throw Distance

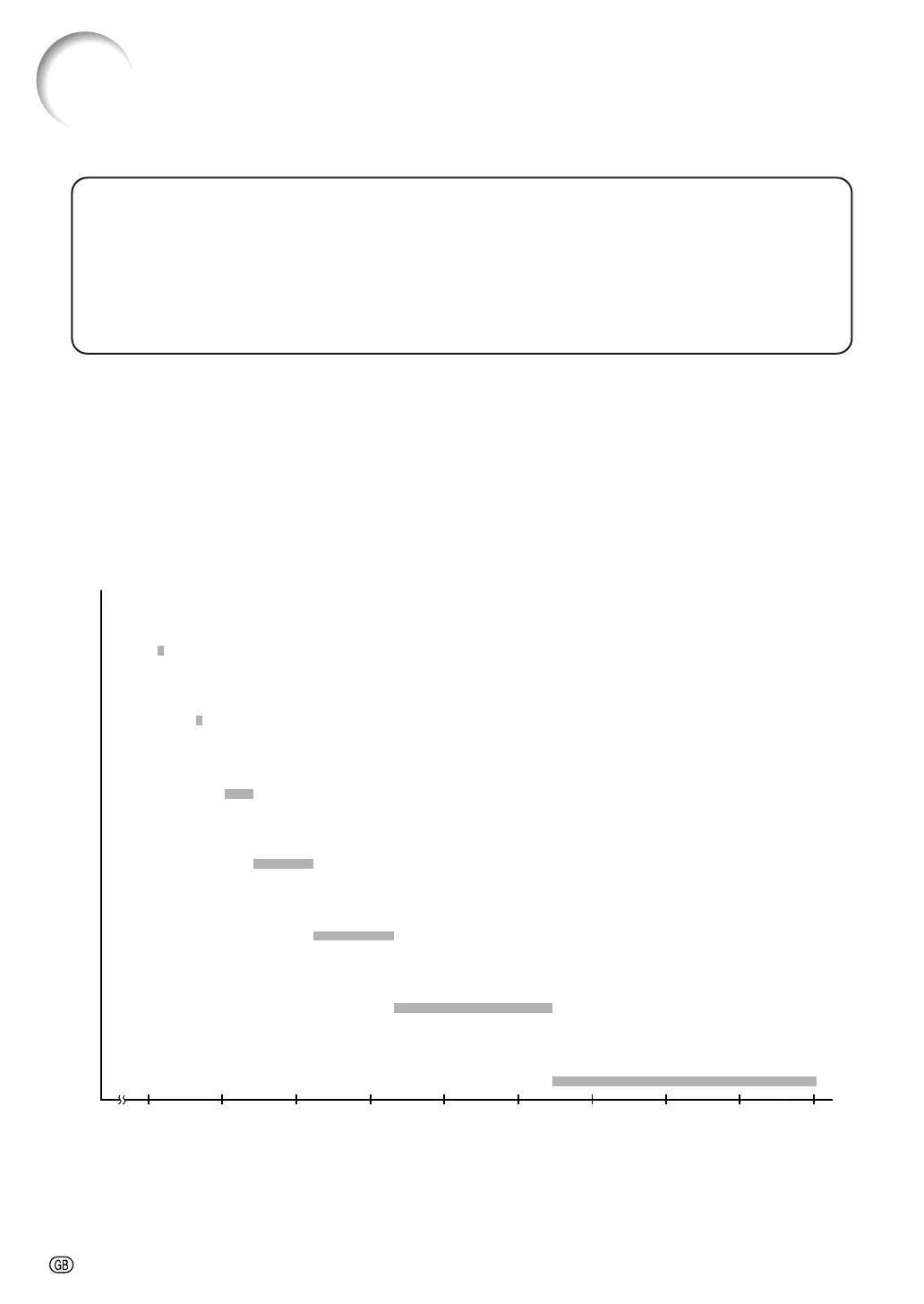

The graph below is for 100-inch (254 cm) screen with 16:10 normal mode.
Screen
5101520253035 455040 (ft)
Standard zoom lens (AN-P18EZ : Standard equipment with XG-P560W)
12'10" – 16'1" (3.9 m – 4.9 m)
Throw distance ratio 1:1.8–2.25
Fixed wide lens (AN-P8EX)
5'9" (1.7 m)
Throw distance ratio 1:0.8
Tele-zoom lens (AN-P23EZ)
16'1" – 21'6" (4.9 m – 6.5 m)
Throw distance ratio 1:2.25–3.00
Tele-zoom lens (AN-P30EZ)
21'6" – 32'3" (6.5 m – 9.8 m)
Throw distance ratio 1:3.0–4.5
Tele-zoom lens (AN-P45EZ)
32'3" – 50'1" (9.8 m – 15.3 m)
Throw distance ratio 1:4.5–7.0
Wide-zoom lens (AN-P15EZ)
10'9" – 12'10" (3.3 m – 3.9 m)
Throw distance ratio 1:1.5–1.8
Fixed wide lens (AN-P12EX)
8'7" (2.6 m)
Throw distance ratio 1:1.2
■ Lens Projection distance for 100" screen size
Fixed wide lens (× 0.8) AN-P8EX 5'9" (1.7 m)
Fixed wide lens (× 1.2) AN-P12EX 8'7" (2.6 m)
Wide-zoom lens (× 1.5 – 1.8) AN-P15EZ 10'9" – 12'10" (3.3 m – 3.9 m)
Standard zoom lens (× 1.8 – 2.25) AN-P18EZ 12'10" – 16'1" (3.9 m – 4.9 m)
(attached to XG-P560W)
Tele-zoom lens (× 2.25 – 3.0) AN-P23EZ 16'1" – 21'6" (4.9 m – 6.5 m)
Tele-zoom lens (× 3.0 – 4.5) AN-P30EZ 21'6" – 32'3" (6.5 m – 9.8 m)
Tele-zoom lens (× 4.5 –7.0) AN-P45EZ 32'3" – 50'1" (9.8 m – 15.3 m)
