Sharp XL-3000H Service Manual

– 3 –
XL-1000H/1100H

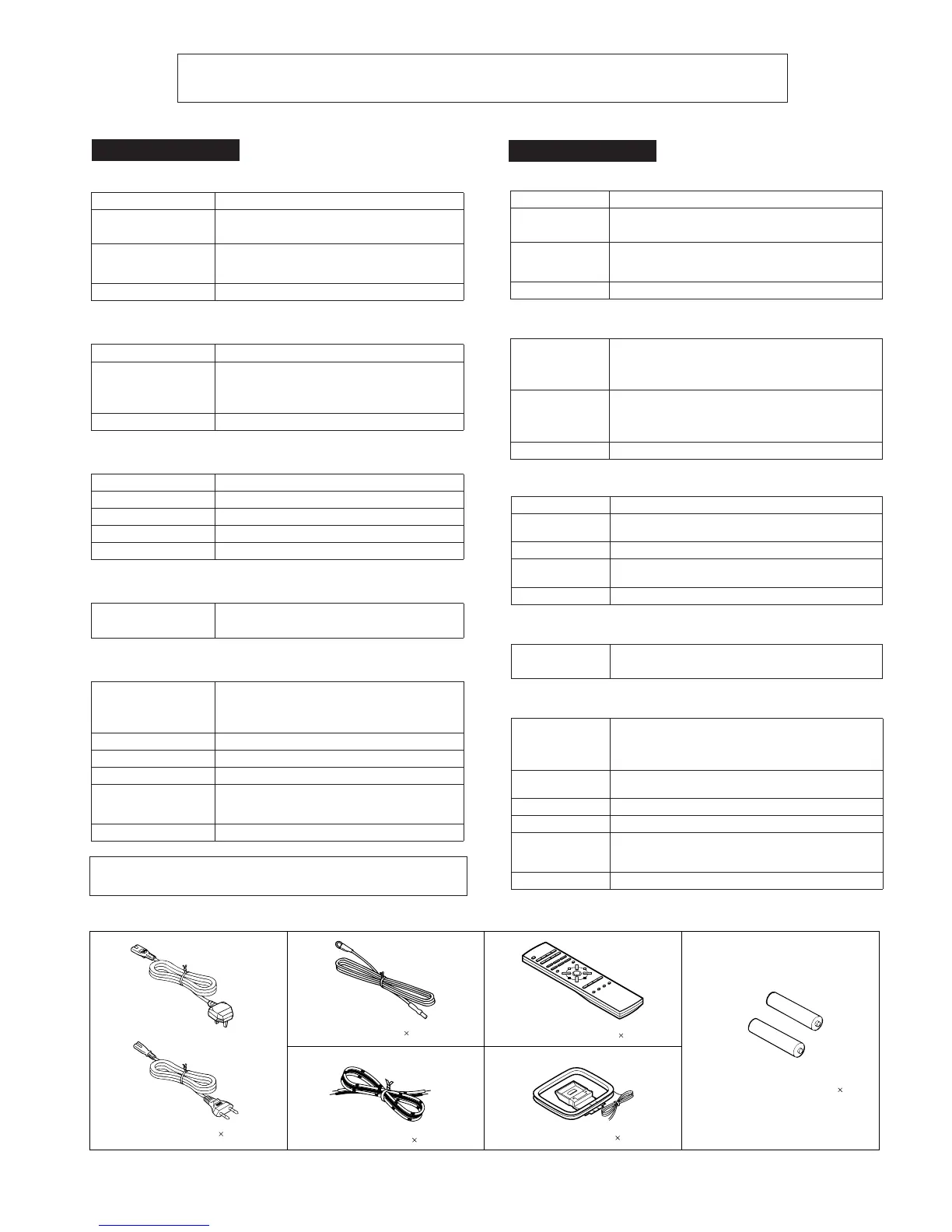

SPECIFICATIONS
Specifications for this model are subject to change without
prior notice.
FOR A COMPLETE DESCRIPTION OF THE OPERATION OF THIS UNIT, PLEASE REFER
TO THE OPERATION MANUAL.
For U.K.
For Europe
■
General
■
Amplifier
■
CD player
■
Tuner
■
Speaker
Power source AC 230 V, 50 Hz
Power
consumption
Power on: 30 W
Power stand-by: 0.6 W
Dimensions Width: 230 mm (9-1/16")
Height: 128 mm (5-1/16")
Depth: 293 mm (11-9/16")
Weight 2.5 kg (5.5 lbs.)
Output power PMPO: 60 W (total)
MPO: 30 W (15 W + 15 W) (DIN 45 324)
RMS: 20 W (10 W + 10 W) (DIN 45 324)
Output terminals Speakers: 8 ohms
Headphones: 16 - 50 ohms (recommended:
32 ohms)
CD digital output (optical)
Input terminals Video/Auxiliary (audio signal): 500 mV/47 kohms
Type Compact disc player
Signal readout Non-contact, 3-beam semiconductor laser
pickup
D/A converter 1-bit D/A converter
Frequency
response
20 - 20,000 Hz
Dynamic range 90 dB (1 kHz)
Frequency range FM: 87.5 - 108 MHz
AM: 522 - 1,620 kHz
Type 2-way type speaker system
Tweeter
10 cm (4") Woofer
Maximum input
power
20 W
Rated input power 10 W
Impedance 8 ohms
Dimensions Width: 140 mm (5-9/16")
Height: 263 mm (10-3/8")
Depth: 187 mm (7-3/8")
Weight 1.5 kg (3.3 lbs.)/each
■
General
■
Amplifier
■
CD player
■
Tuner
■
Speaker
Power source
AC 230 V, 50 Hz
Power consumption
Power on: 30 W
Power stand-by: 0.6 W
Dimensions
Width: 230 mm (9-1/16")
Height: 128 mm (5-1/16")
Depth: 293 mm (11-9/16")
Weight
2.5 kg (5.5 lbs.)
Output power
RMS: 20 W (10 W + 10 W) (10 % T.H.D.)
Output terminals
Speakers: 8 ohms
Headphones: 16 - 50 ohms (recommended: 32 ohms)
CD digital output (optical)
Input terminals
Video/Auxiliary (audio signal): 500 mV/47 kohms
Type
Compact disc player
Signal readout
Non-contact, 3-beam semiconductor laser pickup
D/A converter
1-bit D/A converter
Frequency response
20 - 20,000 Hz
Dynamic range
90 dB (1 kHz)
Frequency range
FM: 87.5 - 108 MHz
AM: 522 - 1,620 kHz
Type
2-way type speaker system
Tweeter
10 cm (4") Woofer
Maximum input power
20 W
Rated input power
10 W
Impedance
8 ohms
Dimensions
Width: 140 mm (5-9/16")
Height: 263 mm (10-3/8")
Depth: 187 mm (7-3/8")
Weight
1.5 kg (3.3 lbs.)/each
ACCSSORIES
Note:
Only the above accessories are included.
AC power lead 1
Remote control 1
"AAA" size battery (UM-4,
R03, HP-16 or similar) 2
AM loop aerial 1
FM aerial 1
Speaker wire 2
(For U.K.)
(For Europe)
(For Europe Only)

Sharp XL-3000H Specifications

General

Brand	Sharp
Model	XL-3000H
Category	Stereo System
Language	English
