XL-1000H/1100H
(C1) x1
ø3 x8mm
(E2) x7
ø3 x8mm
(E2) x1
ø3 x14mm
(D2) x1
(C1) x1
ø3 x6mm
(D1) x1
(E1) x1
Power PWB
Holder PWB
Tuner PWB
Main PWB
(C2) x1
Tuner PWB
(C2) x1
Main PWB
Hook
Bottom Cabinet

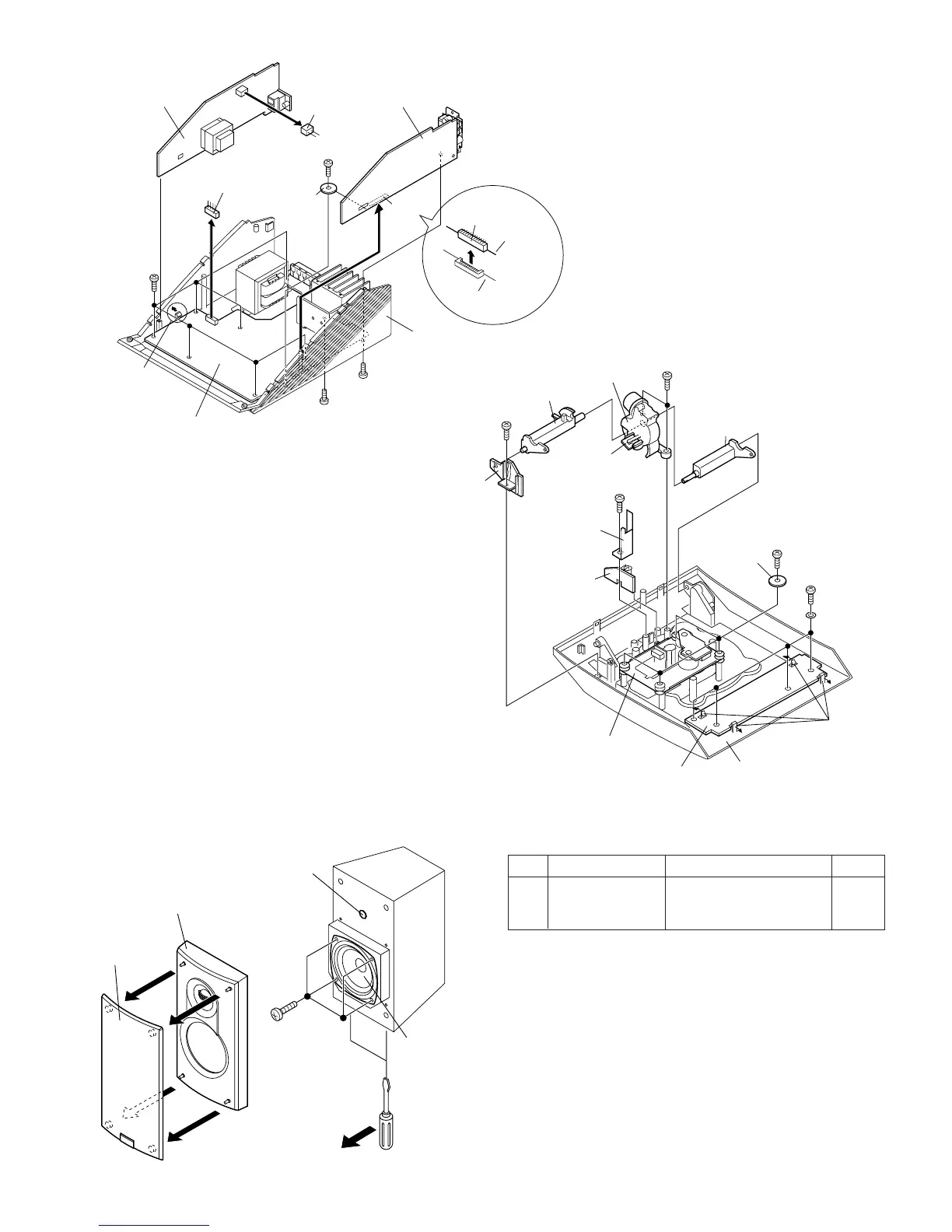

Figure 9-1
Figure 9-2
(G1) x4
ø2.5 x10mm
(H1) x1
ø3 x8mm
(H2) x1
(H5) x1
(H4) x2
ø2.5 x10mm
(J1) x1
ø2.5 x10mm
(F1) x4
ø2.5 x10mm
Hook
(F2) x4
Display PWB
LED PWB
Switch
PWB
Gear Box
CD Mechanism
Top Cabinet
Holder PWB
(H3) x1
Bracket
1 Speaker 1. Net Frame ........... (A1) x1 9-3
2. Front Panel ......... (A2) x1
3. Screw .................. (A3) x4
STEP REMOVAL
PROCEDURE
FIGURE
Figure 9-3
( A3 ) x4
ø4 x12mm
Screwdriver
Net Frame
( A1 ) x1
Front Panel
( A2 ) x1
Woofer
Tweeter
