– 15 –
XL-560,570/C
• The indicated voltage in each section is the one measured
by Digital Multimeter between such a section and the chas-
sis with no signal given.
1. In the tuner section,
( ) indicates AM
< > indicates FM stereo
2. In the main section, a tape is being played back.
3. In the deck section, a tape is being played back.
( ) indicates the record state.
4. In the power section, a tape is being played back.
5. In the CD section, the CD is stopped.
• Parts marked with “ ” ( ) are important for
maintaining the safety of the set. Be sure to replace these
parts with specified ones for maintaining the safety and
performance of the set.
NOTES ON SCHEMATIC DIAGRAM
• Resistor:
To differentiate the units of resistors, such symbol as K and
M are used: the symbol K means 1000 ohm and the symbol
M means 1000 kohm and the resistor without any symbol is
ohm-type resistor. Besides, the one with “Fusible” is a fuse
type.
• Capacitor:
To indicate the unit of capacitor, a symbol P is used: this
symbol P means micro-micro-farad and the unit of the
capacitor without such a symbol is microfarad. As to
electrolytic capacitor, the expression “capacitance/withstand
voltage” is used.
(CH), (TH), (RH), (UJ): Temperature compensation
(ML): Mylar type
(P.P.): Polypropylene type
• Schematic diagram and Wiring Side of P.W.Board for this
model are subject to change for improvement without prior
notice.
SW700 JOG DIAL ON—OFF
SW701 CD EJECT ON—OFF
SW702 VOLUME/JOG DIAL ON—OFF
SW703 PLAY ON—OFF
SW704 STOP ON—OFF
SW705 FUNCTION ON—OFF
SW706 BAND ON—OFF
SW707 MEMORY/SET ON—OFF
SW708 RECORD PAUSE ON—OFF
REF. NO DESCRIPTION POSITION POSITIONREF. NO DESCRIPTION
SW710 FAST FORWARD ON—OFF
SW711 REWIND ON—OFF
SW717 BASS/TREBLE ON—OFF
SW718 ON/STAND-BY ON—OFF
SW719 CLOCK/TIMER/SLEEP ON—OFF
SW801 PICKUP IN ON—OFF
SW901 FOOL PROOF ON—OFF
SW902 CAM ON—OFF

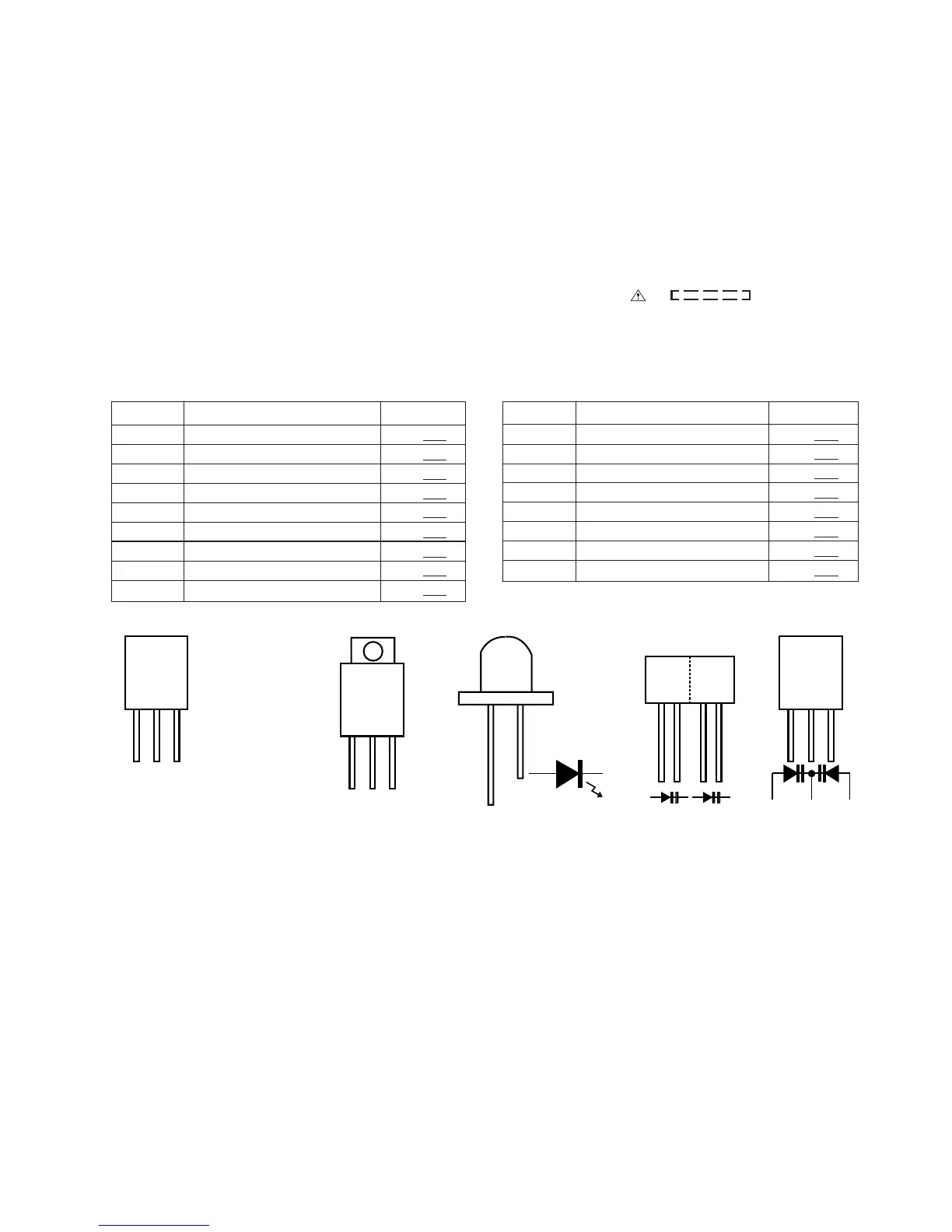

Figure 15 TYPES OF TRANSISTOR AND LED
ECB
(S)(G)(D)
(1) (2) (3)
FRONT
VIEW
FRONT
VIEW
BCE
FRONT
VIEW
2SB562 C
2SC2001 K
2SC535 C
2SD468 C
KRA102 M
KRC102 M
KRC104 M
KRC107 M
KTA1266 GR
KTC3199 GR
2SD2012 Y L1154GDA
KV1236Z23
FRONT VIEW
FRONT
VIEW
KDV147C

Sharp XL-560 Specifications

General

Type	Stereo System
Speakers	2-Way Speakers
CD Player	Yes
Tuner	AM/FM
Functions	CD Player, Cassette Deck, Tuner
Frequency Response	20 Hz - 20 kHz
