– 9 –
XL-560,570/C

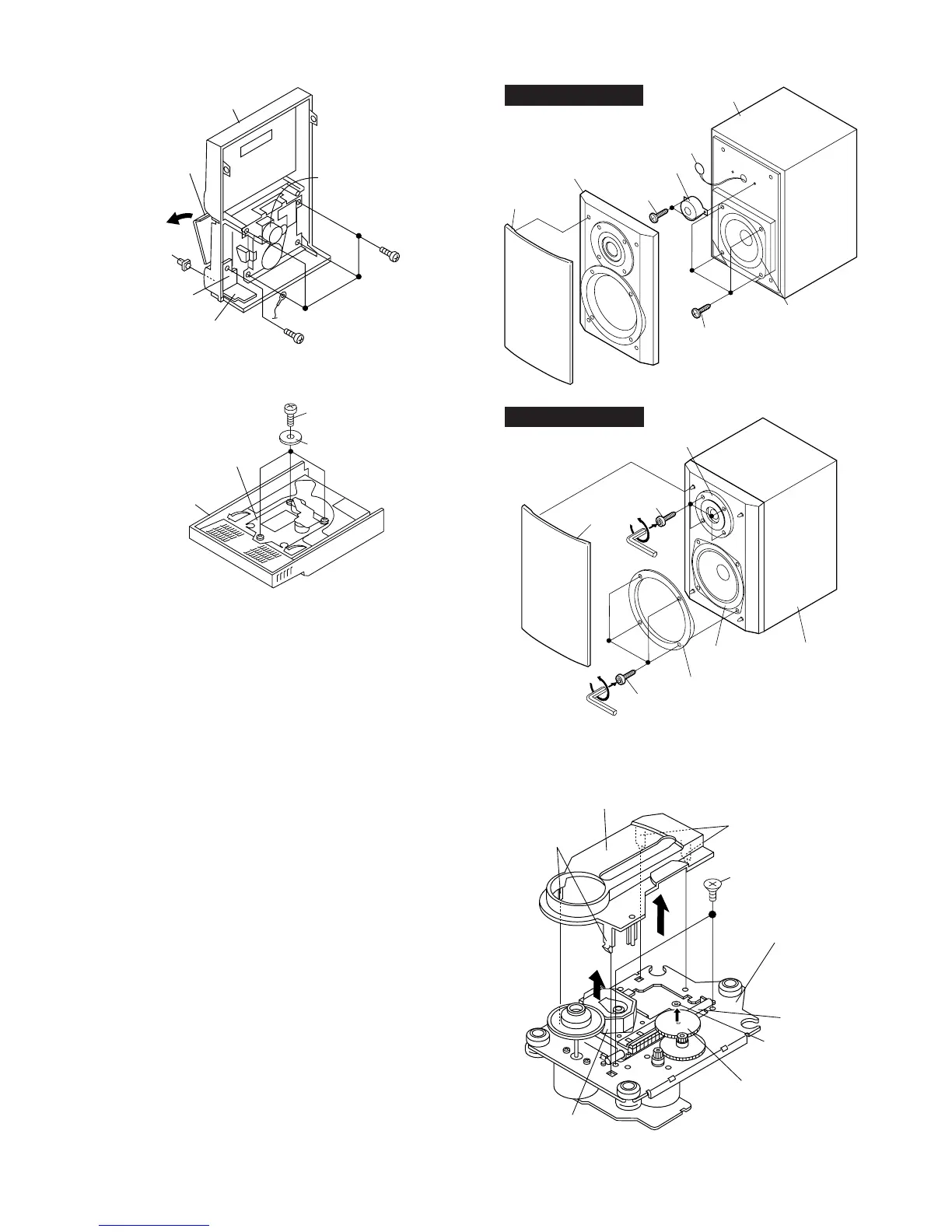

How to remove the pickup (See Fig. 9-5)
1. Remove the mechanism cover, paying attention to the
pawls (A1) x 4 pcs.
2. Remove the screws (A2) x 2 pcs., to remove the shaft (A3)
x 1 pc.
3. Remove the stop washer (A4) x 1 pc., to remove the gear
(A5) x 1 pc.
4. Remove the pickup.
Note:
After removing the connector for the optical pickup from the
connector, wrap the conductive aluminium foil around the
front end of connector to protect the optical pickup from
electrostatic damage.
REMOVING AND REINSTALLING THE MAIN PARTS
CD MECHANISM SECTION
Perform steps 1 to 6 and 11 of the disassembly method to
remove the CD mechanism.
Pickup Unit
(A2) x2
ø2.6 x6mm
(A1) x2
CD Mechanism
Shaft
(A3) x1
Gear
(A5) x1
StopWasher
(A4) x1
Mechanism Cover
(A1) x2
CP-XL560U
Figure 9-4
Figure 9-3
CP-XL570U
Figure 9-1
Figure 9-2
Figure 9-5
Tape
Mechanism
Open
(K1)x4
ø2.5x10mm
(J1)x1
ø2.5x10mm
Front Panel
Cassette
Holder
CD Digital
PWB
PWB
Holder
(J2)x1
CD Mechanism
(L1)x3
ø2.5x10mm
PWB Washer x3
Top Cabinet
(A1)x1
(A2)x1
(A5)x1
(A4)x2
ø3x12mm
Woofer
Tweeter
(A3)x4
ø4x20mm
Speaker Box
(A1)x1
(A3)x1
(A4)x4
ø3x12mm
Woofer
Tweeter
(A2)x4
ø4x16mm
Speaker Box
