Sharp XR-10X-L User Manual

XR-10X-L/XR-10S-L/XG-MB50X-L/XR-11XC-L/XR-HB007X-L
2 – 1
XR-10X-L
Service Manual
CHAPTER 2. REMOVING OF MAJOR PARTS

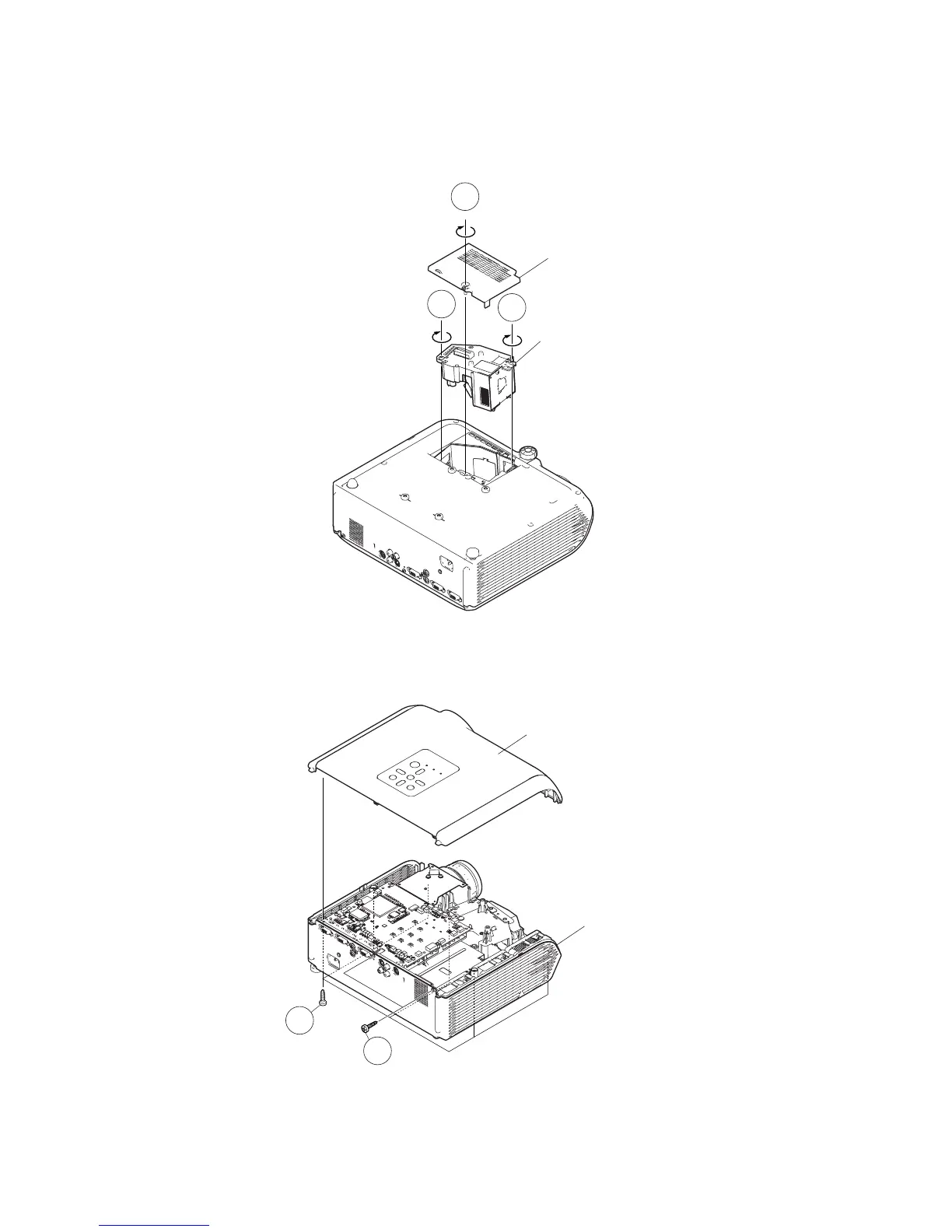

[1] Removing the lamp door and the lamp unit
1. Loosen the lamp door fixing screw. Lift off the lamp door.
2. Remove 2 lamp unit fixing screws to detach the lamp unit.
[2] Removing the top body
1. Remove 8 top body fixing screws to detach the Top body.
1-1
1-2
1-2
Lamp Door
Lamp Unit
Top Body
Bottom Body
2-1
2-1
