Sharp XR-10X-L User Manual

XR-10X-L/XR-10S-L/XG-MB50X-L/XR-11XC-L/XR-HB007X-L
3 – 2

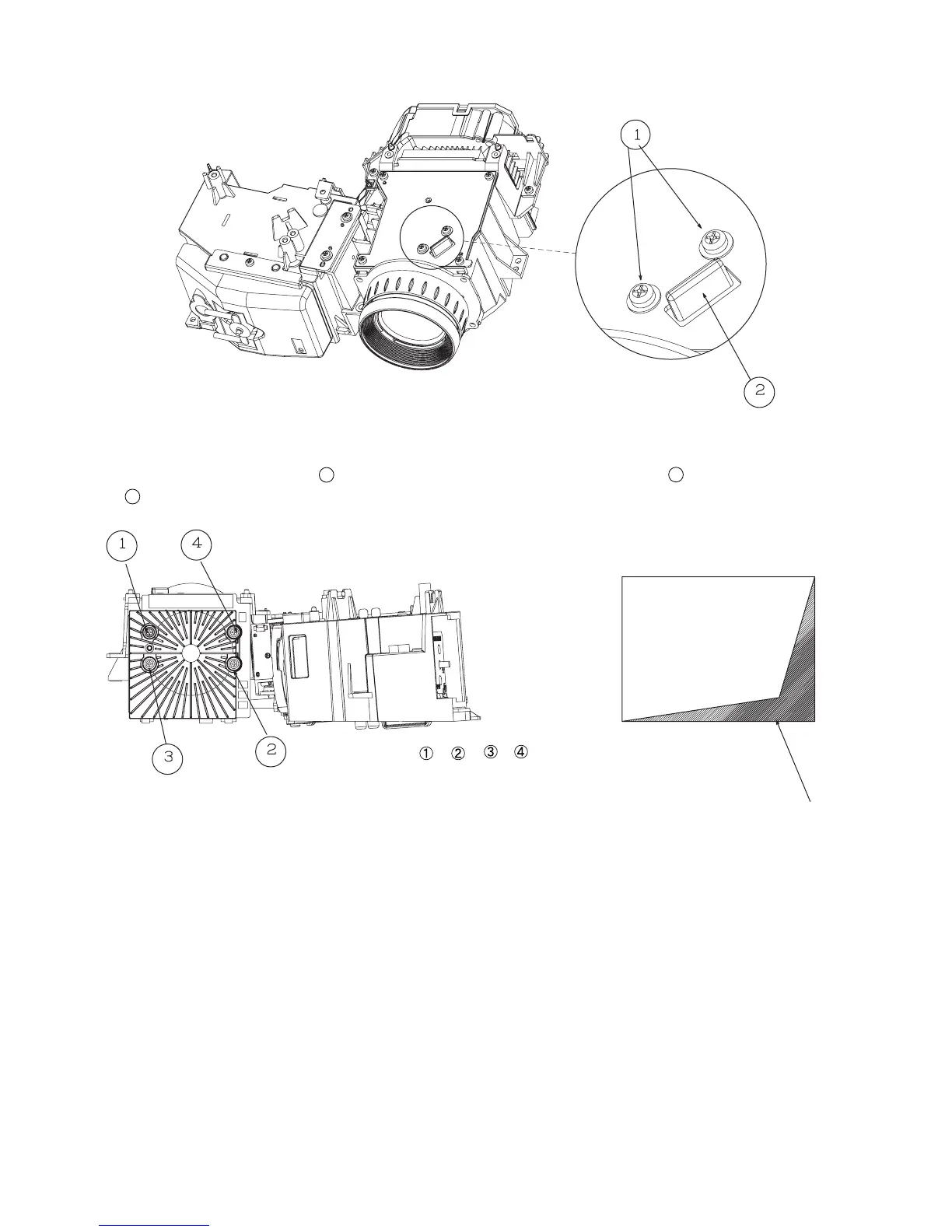

2. When the DMD unit has been replaced
If shading shown in Figure 1 appears on the screen after replacing DMD, turn the adjustment screw of the optical engine to adjust the lighting area of
DMD.
1. Loosen the adjustment lever fixing screw . After adjusting the lighting area with the adjustment lever , tighten the adjustment lever fixing
screw .
When mounting DMD, tighten the 4 screws evenly.
1
2
1
Fig. 1
Shading
Tightening order: →→→
Screw torque: 0.44 ± 0.05 N·m
