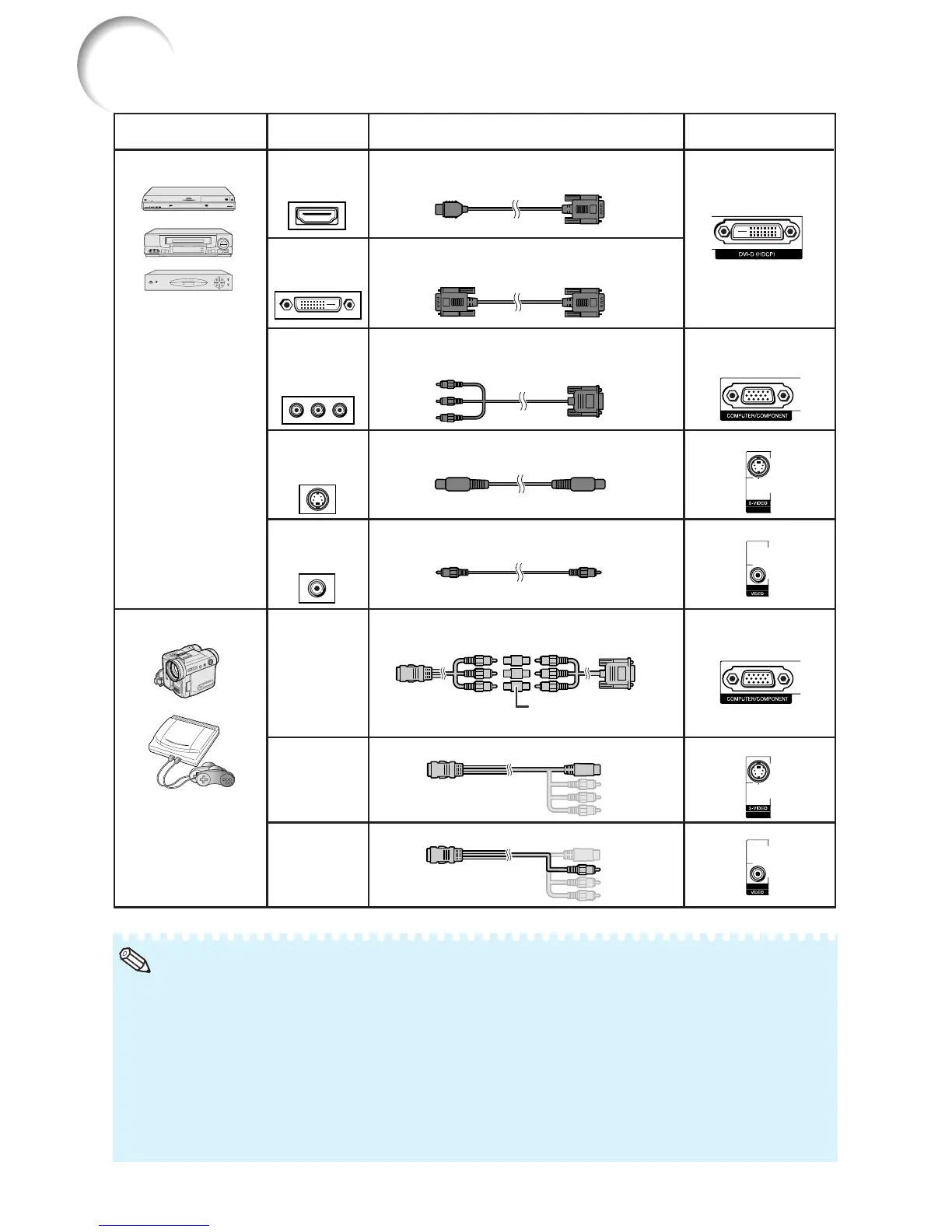

Connecting the Projector to Other Equipment (Continued)
S-VIDEO
VIDEO
COMPUTER/
COMPONENT
Equipment
Video equipment
Camera/Video game
Cable
S-video cable (commercially available)
Video cable (commercially available)
Cables for a camera or a video game
Cables for a camera or a video game
Cables for a camera or a video game/3 RCA
to mini D-sub 15 pin cable (optional,
AN-C3CP2)
Terminal on
connected equipment
Terminal on the
projector
S-video
output
terminal
Video
output
terminal
S-video
output
terminal
Video
output
terminal
Component
video
output
terminal
RCA adaptor plug
(commercially available)
S-VIDEO
VIDEO
3 RCA to mini D-sub 15 pin cable
(optional, AN-C3CP2)
COMPUTER/
COMPONENT
Component
video
output
terminal
HDMI to DVI cable
(commercially available)
DVI-D
HDMI
output
terminal
DVI digital
output
terminal
DVI Digital cable (commercially available)
• While the projector is connected to video equipment that has an HDMI output terminal, only the
video signal can be input to the projector. (Connect the AUDIO input terminal for audio input.)
• Depending on specifications of video equipment or HDMI to DVI digital cable, the signal transmission
may not work property. (The HDMI specification does not support all connections to video equipment
that has HDMI digital output terminal using HDMI to DVI digital cable.)
• For details on compatibility for connection, see support information on DVI connection provided by
the video equipment manufacturer.
• When you connect video equipment with a 21-pin RGB output (Euro-scart) to the projector, use a
commercially available cable that fits in the projector terminal you want to connect.
• The projector does not support RGBC signals via the Euro-scart.
