Sharp XR-30X User Manual

23
Connections
Note
• When using the ø3.5 mm mono audio cable, the volume level will be half of when using the ø3.5 mm
stereo audio cable.
•You can select “Audio 1” or “Audio 2” for “Audio Input” in the “PRJ-ADJ” menu. (See page 43.)
• RGB signals and Component signals can be output to the monitor.

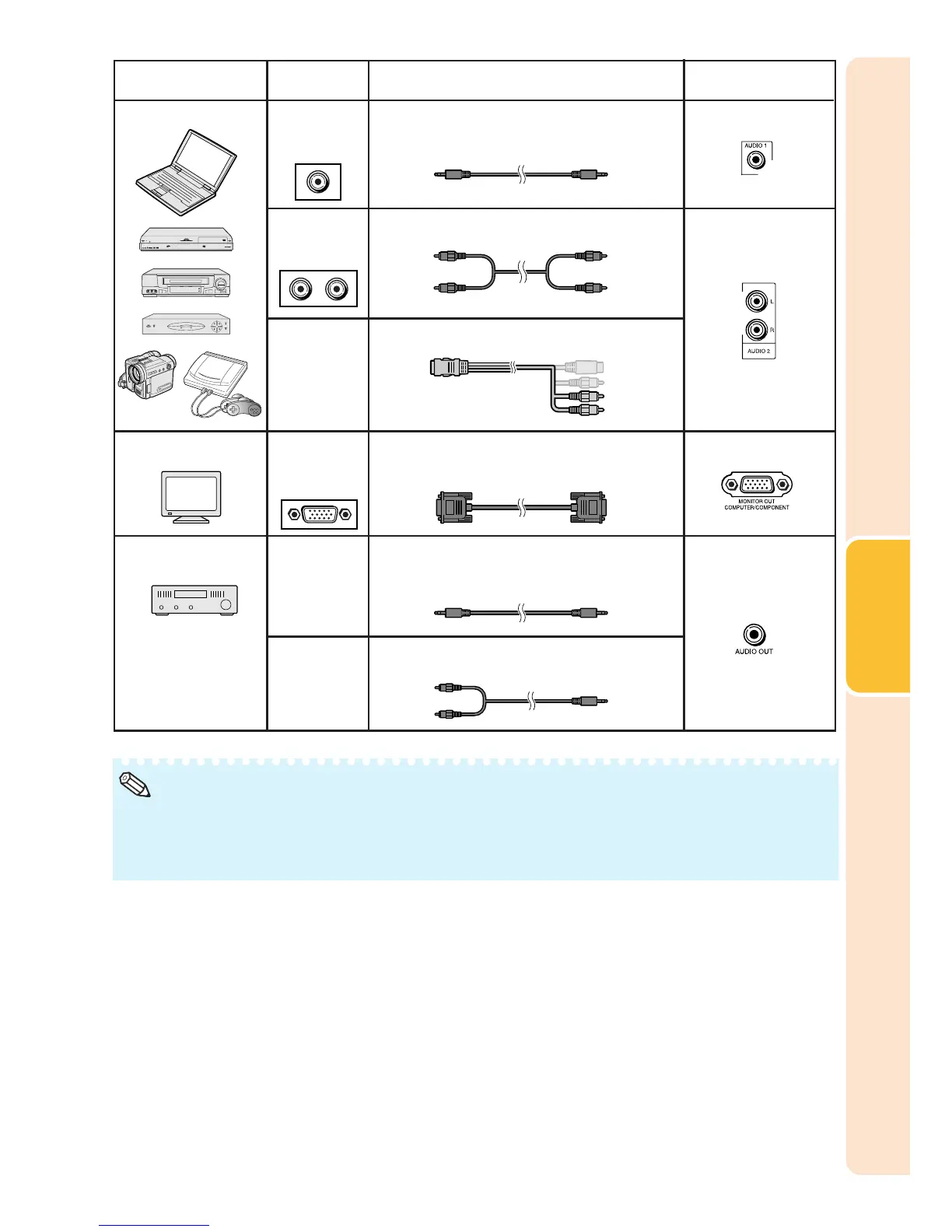

Equipment Cable
Terminal on
connected equipment
Terminal on the
projector
Audio
output
terminal
Monitor
Amplifier
MONITOR OUT
AUDIO OUT
RGB
input
terminal
RGB cable (supplied or commercially
available)
AUDIO 1
Audio equipment
ø3.5 mm stereo or mono audio cable
(commercially available or available
as Sharp service part QCNWGA038WJPZ)
ø3.5 mm
audio output
terminal
ø3.5 mm
audio input
terminal
RCA audio
output
terminal
RCA audio
input
terminal
ø3.5 mm stereo or mono audio cable
(commercially available or available
as Sharp service part QCNWGA038WJPZ)
ø3.5 mm stereo minijack to RCA audio cable
(commercially available)
RCA audio cable (commercially available)
Cables for a camera or a video game
AUDIO 2
