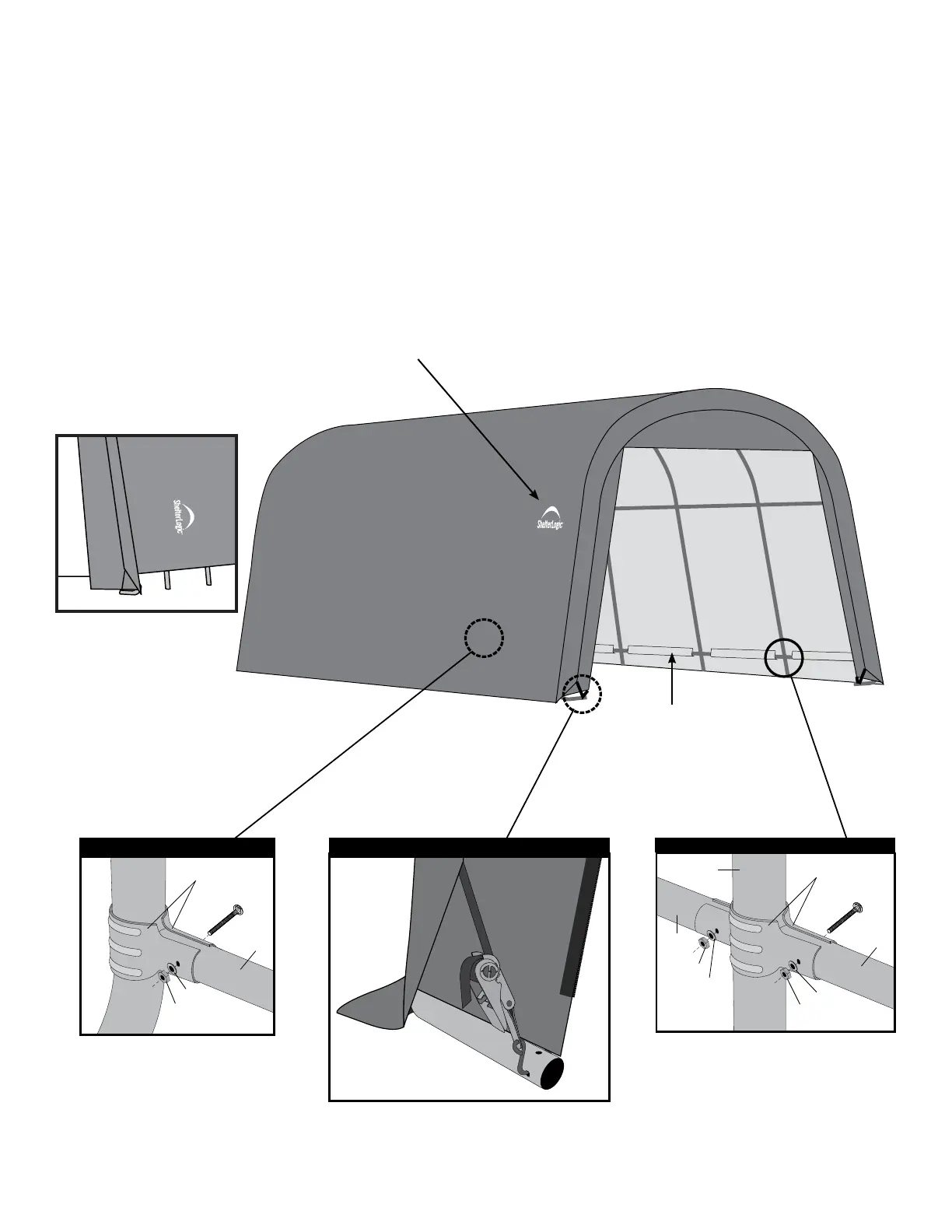

10. INSTALLING COVER WITH COVER RAILS
A. Lay the cover on the ground next to the frame with inside of the cover (the side with the pipe pockets) facing
down and the webbing on the front and rear of the corner of the building. Pull cover over the frame.
B. Insert the “S”- Hook on ratchet into hole on the leg bend. Insert the webbing into the spindle of the ratchet
and pull tight. Wind the ratchet so that the webbing overlaps itself.
C. Disassemble cover rails and slide through fabric pockets at each leg and reattach with clamps to each leg.
Repeat this on other side. Push down on cover rails to tighten cover, before tightening bolts completely.
D. Check and tighten Ratchets and Cross Rails monthly to ensure the cover is tight.
NOTE: The ShelterLogic
®
logo should
be oriented as shown below.
CORRECT
802695
COVER RAILS
Webbing and Ratchets Securing Cover
INCORRECT
End Rib Cover Rail Clamps
10115
802695
802695
13201
800923
01010
01011
01010
01011
Middle Rib Cover Rail Clamps
