ShelterLogic Garage-in-a-Box RoundTop 62780 User Manual

05_62780_62783_0BPage 5
10115
802695
13202
800958
01011
01010
03032
800939
03032
01010
01010
800920
802129
800921
10115
802695
13201
800923
01010
01011

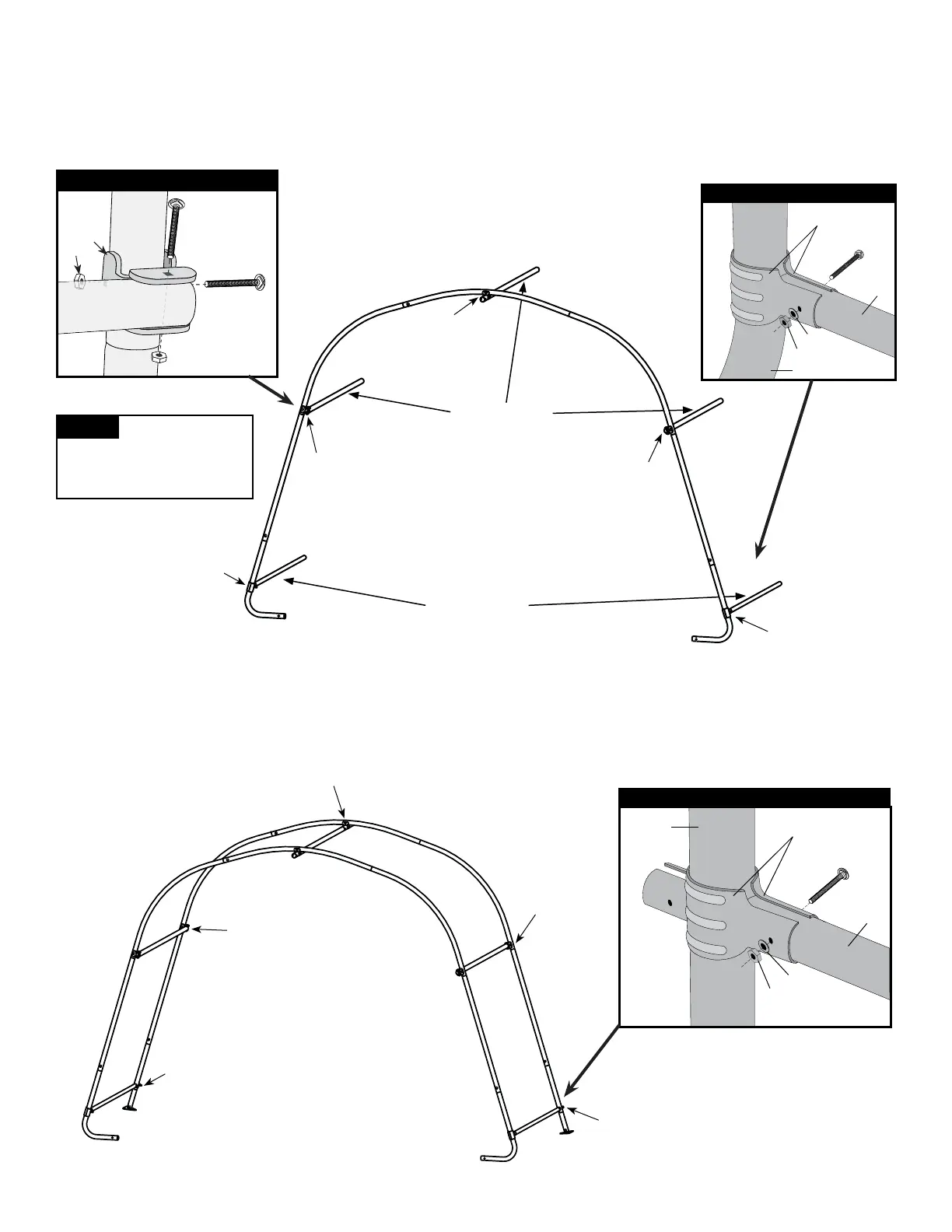

3. ATTACH CROSS RAILS AND COVER RAILS TO FRONT END RIB
4. CONNECT FIRST MIDDLE RIB TO FRONT END RIB
802695
802695
13202
802129
800939
800939
800939
800939
800939
800939
13201
13201
802129
802129
End Rib Cover Rail Clamps
Middle Rib Cover Rail Clamps
13202
A. Place a Cover Rail (#802695) at each leg and secure it with a Cover Clamp as shown.
Only HAND-TIGHTEN these bolts!
B. Slide the Cover Rails so they are 8 inches up from the ground.
ShelterLock
®
connections use #03032 (1
7
/
8
") Bolts. Cover Rail Clamp connections use #10115 (1
5
/
8
") Bolts.
ShelterLock
®
connections use #03032 (1
7
/
8
") Bolts. Cover Rail Clamp connections use #10115 (1
5
/
8
") Bolts.
Cover Rails
Cross Rails
NOTE:
The bolt heads at
the end ribs must be facing
outward to avoid damaging
your cover.
ShelterLock
®
End Rib Connection
