• The jacks of VIDEO 1/VIDEO 2 can be connected to a BD player, DVD player, cable TV tuner, satellite system, etc.
• Connect the jacks of VIDEO 2 to the video component in the same way.
• The jacks of AUX can be connected to an additional video component without analog video jacks.
The AUDIO jacks of AUX can be also connected to an additional audio component such as a CD player, tape deck, etc.
• There are two types of video jacks (COMPONENT, (composite) VIDEO) for analog video connections and the HDMI
connectors for digital video and audio connections.
Connect them to the corresponding video jacks according to their capability.
• For your reference, the excellence in picture quality is as follows : “HDMI” > “COMPONENT” > “(composite) VIDEO” .
• When making COMPONENT VIDEO connections, connect “Y” to “Y”, “PB/CB” to “CB”(or “B-Y”, “PB”) and “PR/CR” to “CR”(or
“R-Y”, “PR”).
• When viewing video program sources through MONITOR OUT jack, you must use the same type of video jacks that you did
connect to video playback components such as BD player, DVD player, cable TV tuner, etc.

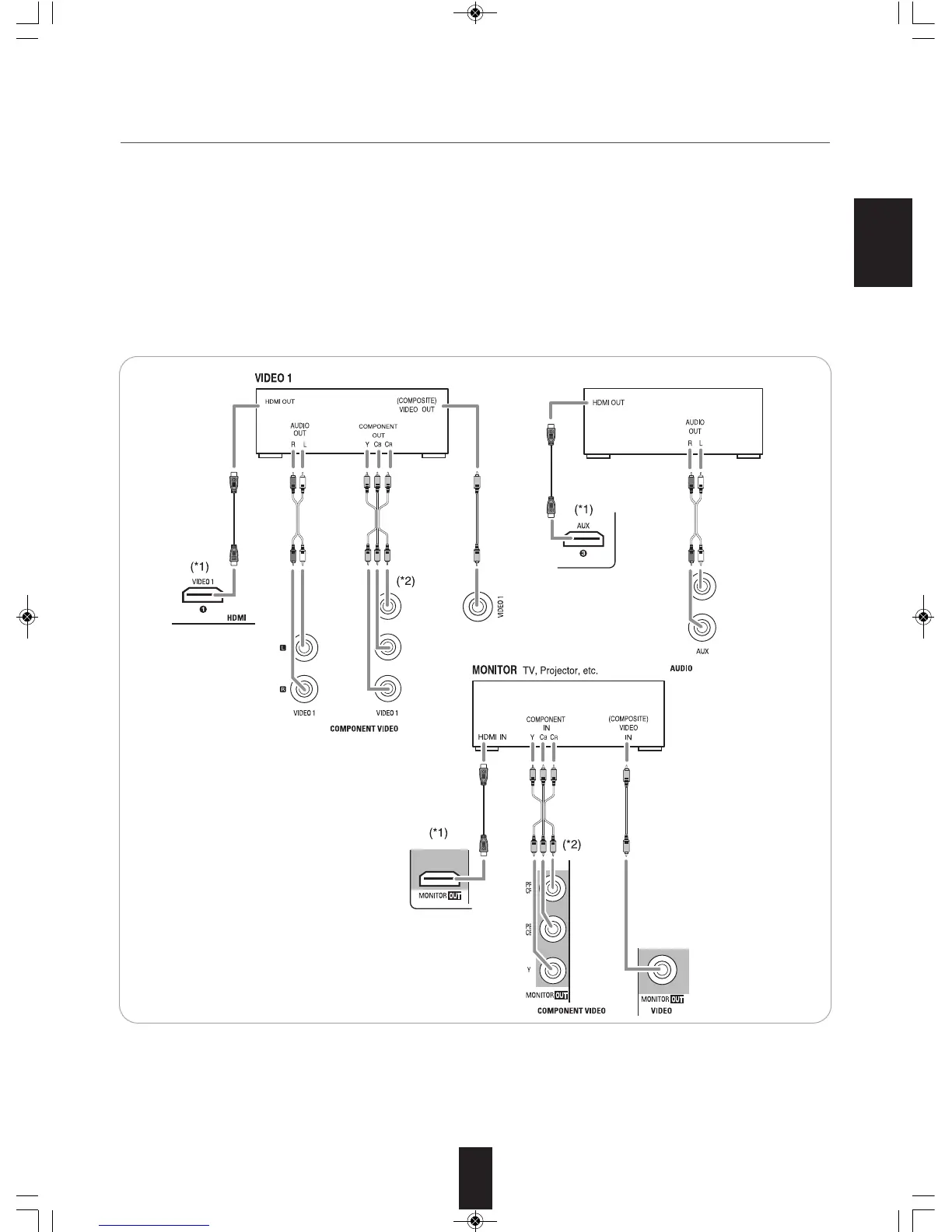

3. CONNECTING VIDEO COMPONENTS
ENGLISH
■Note :
• You can connect Apple iPod to this receiver via Sherwood iPod dock. If Sherwood iPod dock is connected to DIGILINK-i jack
for system control, you should connect its video and audio jacks to the “VIDEO 2” jacks of this receiver. Because, when you
control your iPod with the unit's remote control, the VIDEO 2/iPod is automatically selected as an input source and the
corresponding operation is performed.
