Shibaura SG280E - FUNCTION OF EACH PART

16
1616
16
SECTION 4-FUNCTION OF EACH PART

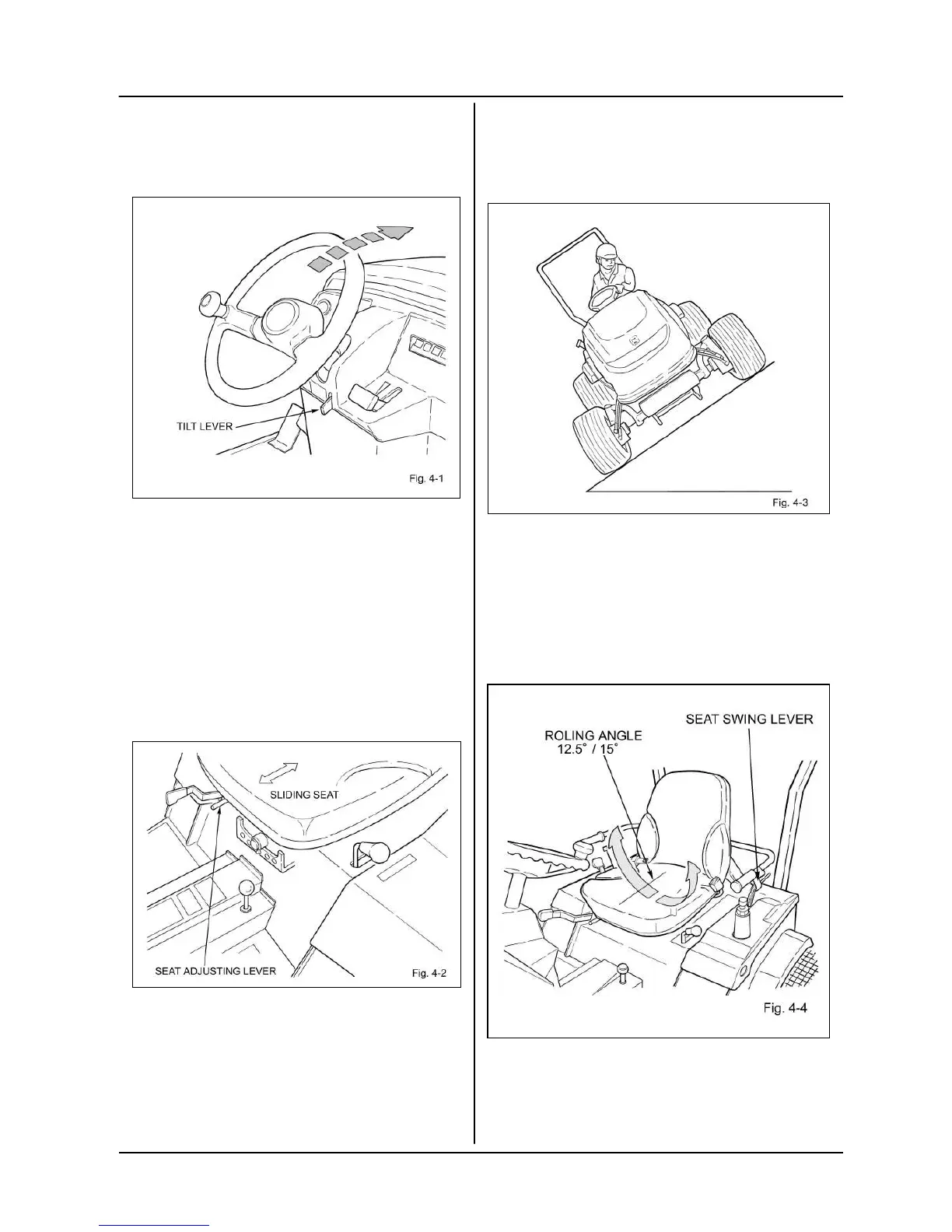

1. Steering Wheel and Seat Systems
①
①①
① Steering wheel
Angle of the steering wheel can be adjusted.
Position of the steering wheel can be adjusted
by pulling the tilt lever.
After the position is determined, pull dow
n the
tilt lever forward and fix. Do not adjust these
functions while the vehicle is traveling.
②
②②
② Front / back seat adjustment
The seat slides forward and backward
.
Release the seat by
movement of the lever.
Adjust the seat properly to your op
erating
position.
③
③③
③ Rolling seat
Seat angle can be adjusted
when you operate on
a slopes.
By grasping the seat swing lever above the oil
tank, the seat rolls laterally in 2 steps to 12.5 and
15°. Continuous operation along the slope
allows
safe operation at a comfortable position.
