SECTION 4 – SXM54, SXM60 MOWER DECK
4-22

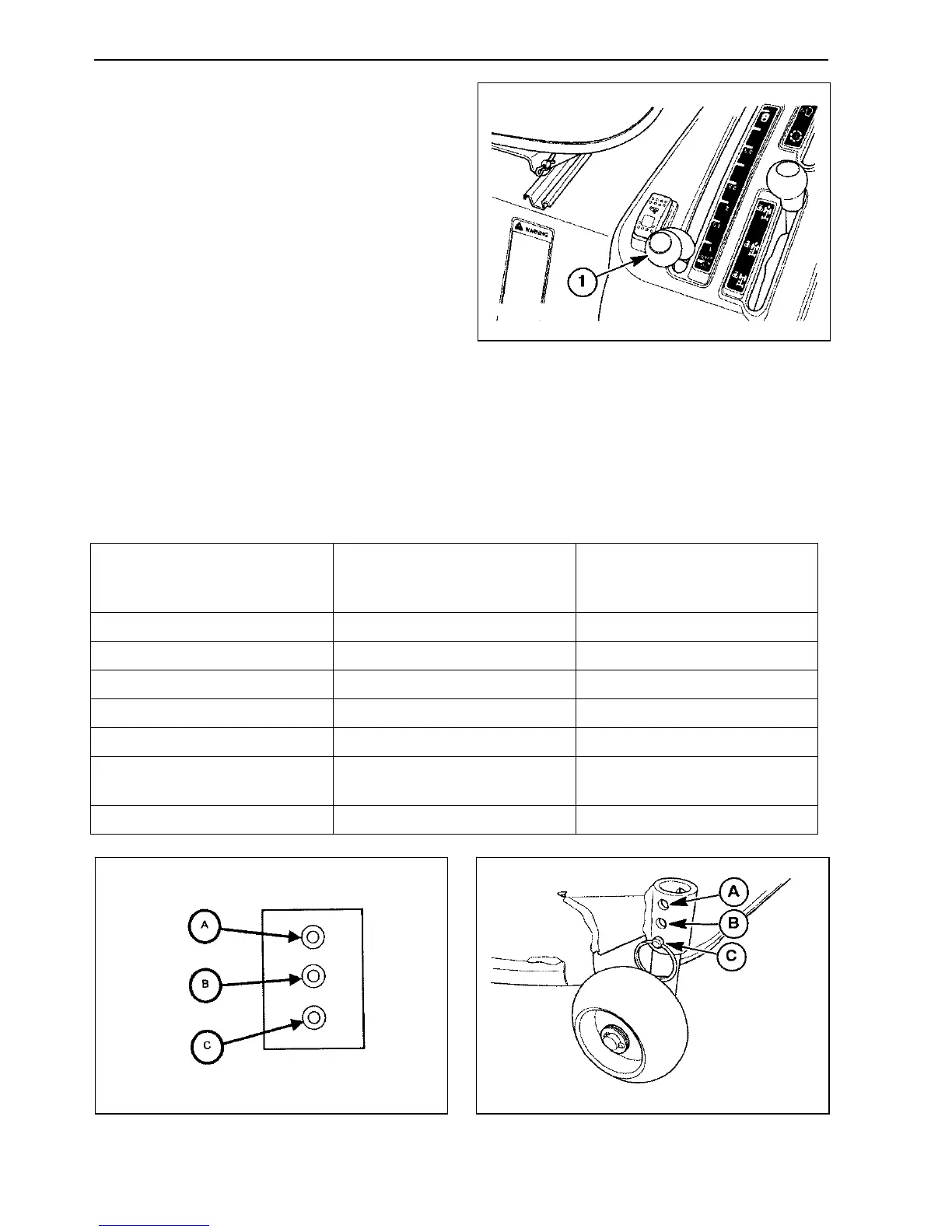

CUTTING HEIGHT ADJUSTMENT
Cutting height is controlled by the height
adjustment control lever ①. The cutting height
can be set to seven different heights; 1", 1.5", 2",
2.5", 3", 3.5" and 4".
IMPORTANT: Deck must be in the "full up"
position before cutting height can be changed.
Do Not attempt to change cutting height with
deck in any other position than "full up".
IMPORTANT: When gauge wheels are properly
adjusted, gauge wheels will not contact the
ground! Gauge wheels are NOT meant to
continuously contact the ground, the wheels act
as anti scalp rollers on the four corners of the
deck.
Gauge wheels must be adjusted according to the
cutting height setting. Use the following chart for
gauge wheel position.
CUTTING HEIGHT POSITION
(On control lever)
FRONT and REAR GAUGE
WHEEL HEIGHT
(ground to center of wheel)
HOLE POSITION
1.0" 66 mm A
1.5" 78 mm A
2.0" 91 mm A
2.5" 104 mm A
3.0" 97 mm B
3.5" 89 mm
109 mm
C
B
4.0" 102 mm C
