LUBRICATION
Before operating the SXM54 or SXM60 mower,
make sure all indicated lubrication points have
been properly lubricated according to the
diagram.
Always wipe the fitting to be lubricated with a
clean cloth before using a grease gun. Dirt
injected through the grease fitting will damage
closely machined parts.
Use SAE multi-purpose lithium base grease on
all lubrication points. Do not allow excess grease
buildup on or around parts, especially when the
mower is used in sandy areas.
Lubricate all grease points every 25 hours.

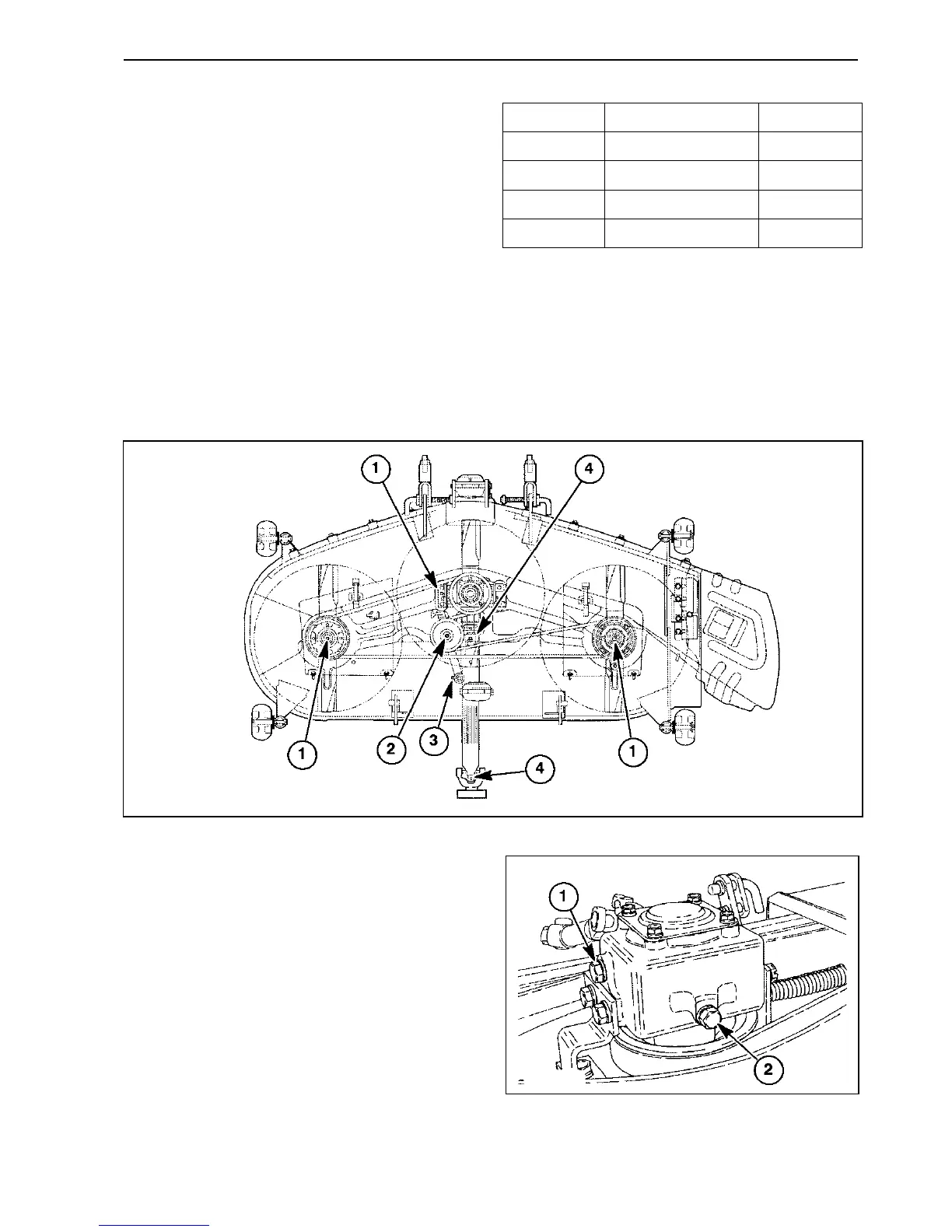

REF. NO. DESCRIPTION 25 HRS.
1 Blade Spindle (3) •
2 Idler Pulley Shaft (1) •
3 Idler Arm Shaft (1) •
4 Driveline U-Joint (2) •
Gearbox
Check the oil in the gearbox weekly. To check oil
level, remove the oil level check/fill plug ① from
the gearbox. Oil should be at that level. If
necessary to add oil, use only SAE 80-90W gear oil.
To fill gearbox with oil, remove the check/fill plug
① and add oil until excess exits the check hole.
Gearbox oil level should be checked daily. The
oil must be changed at 50 hours of service.
Change the gearbox oil every 150 hours after the
initial oil change at 50 hours. Loosen and remove
the drain plug ② to drain the oil from the
gearbox.
