SECTION 2 – OPERATION
2-11

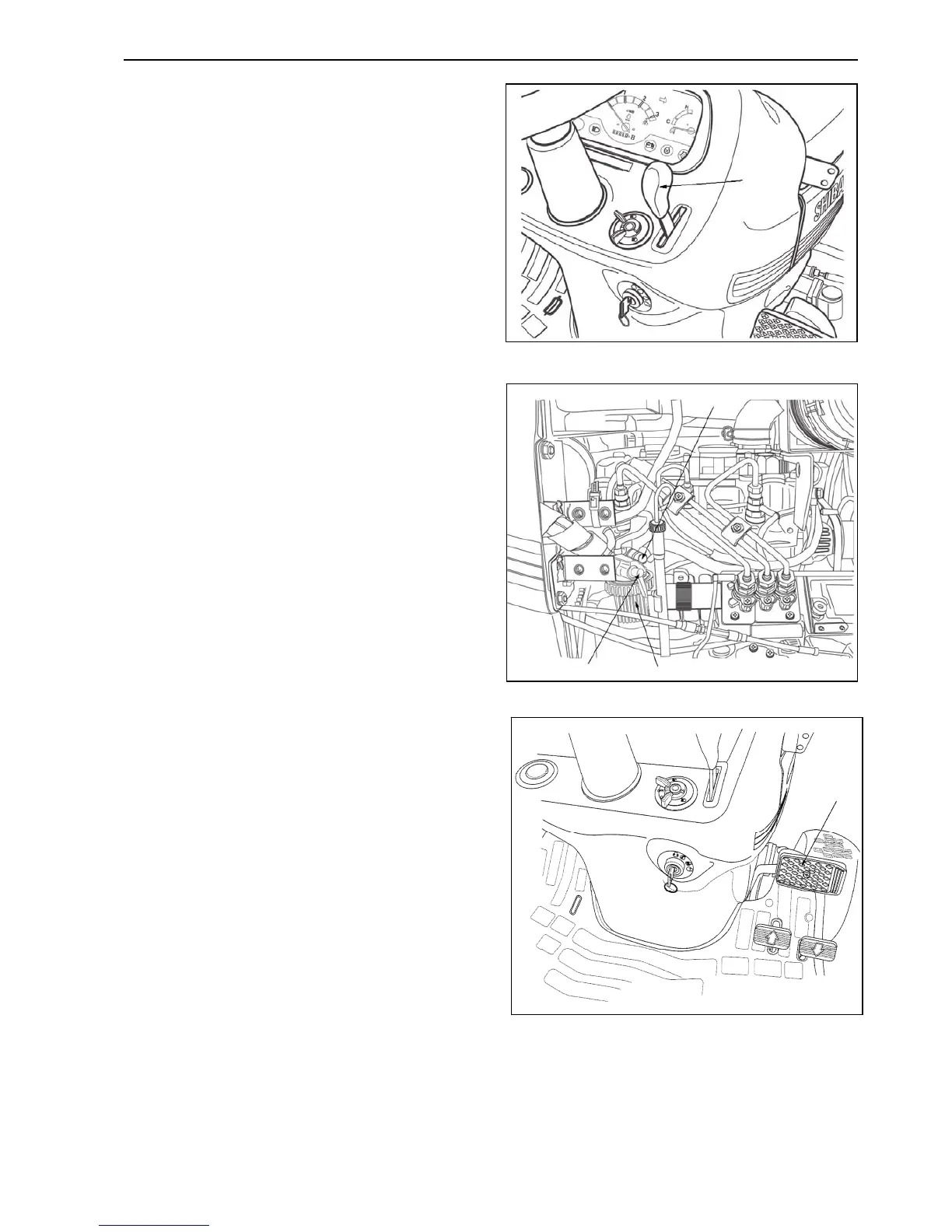

THROTTLE CONTROLS
The hand throttle ① is located on the RH side of
the console. Push the throttle forward to increase
the engine RPM, Pull the throttle rearward to
decrease the RPM.
FUEL SHUTOFF VALVE
The fuel shutoff valve ① is located in the fuel
line, on top of the fuel filter ②. The fuel filter is
accessed from the RH side of the tractor.
To open the fuel shutoff valve, rotate the handle
③ until it points straight up and down. To close
the valve, rotate the handle clockwise to the
horizontal position. Always close the fuel shutoff
valve when servicing any part of the fuel system.
BRAKE CONTROLS
Brake Pedal
The brake pedal ① located on the RH side of
the tractor, controls the braking action of the rear
wheels. There are no separate left and right
brakes on this model tractor.
