SECTION 2 – OPERATION
2-19
TRACTOR HYDRAULICS
HYDRAULIC POWER LIFT (H.P.L.) (3 PT)

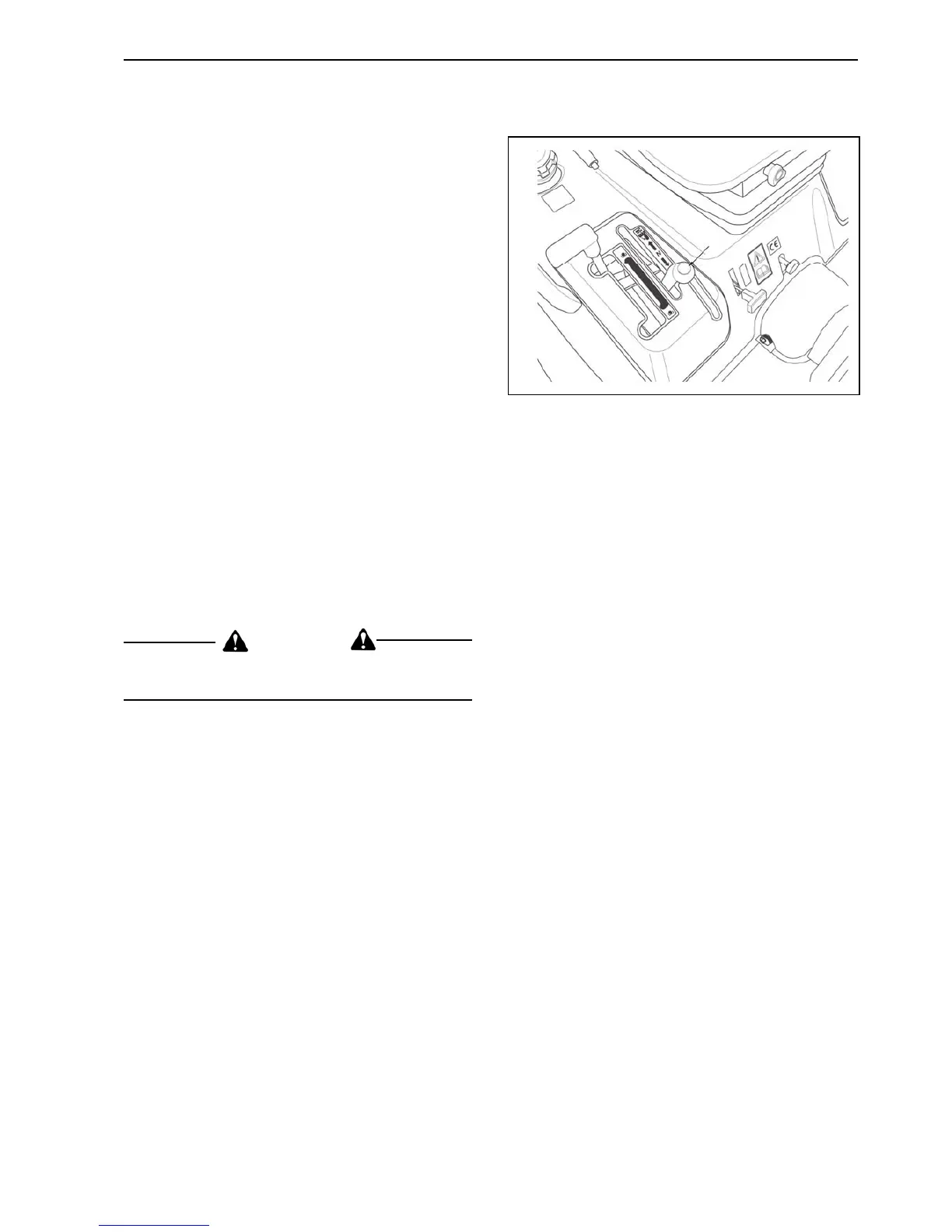

The H.P.L. lever ① is located on the RH control
pod, inboard of the PTO clutch lever. This lever
controls the position of the two lift arms.
Operating the hydraulic control lever actuates the
hydraulic lift arms, which controls the elevation of
3-point hitch mounted implement.
To lower implement, move the hydraulic control
lever forward.
To raise implement, move the hydraulic control
lever rearward.
The hydraulic control lever is automatically
returned to the neutral position ONLY when the
lift arms have reached the upper position.
IMPORTANT: While raising or lowering the lift
arms the hydraulic control lever must be
manually placed in the neutral position to stop
the travel of the lift arms.
WARNING
Make sure the area is clear of people before
lowering equipment.
