SECTION 3 – LUBRICATION AND MAINTENANCE
3-25

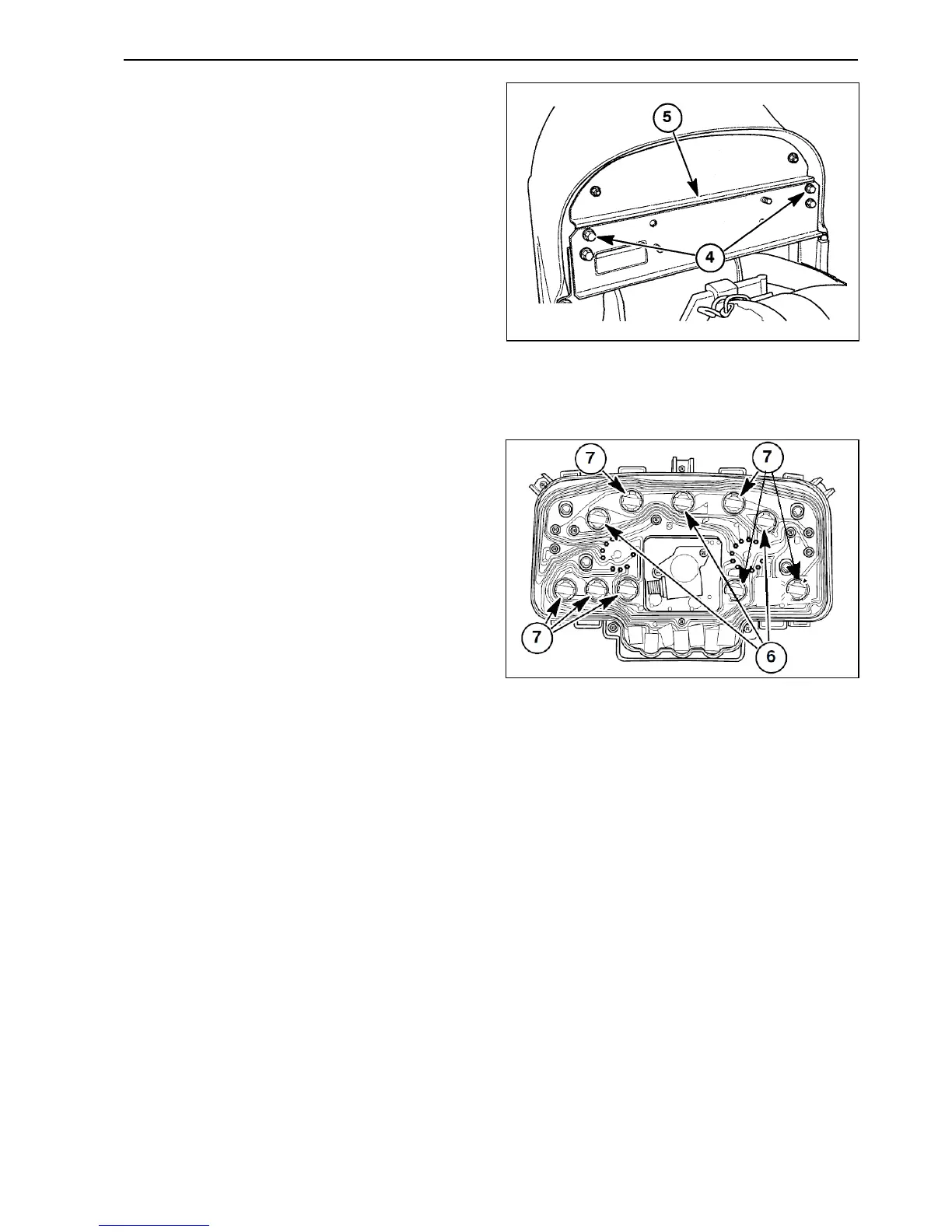

4. Remove the two bolts ④ securing the
dashboard guard plate ⑤ to the firewall
crossmember.
5. Lift the dashboard guard plate out of the way
to access the rear of the instrument panel.
6. Rotate the defective bulb assembly
counter-clockwise a quarter turn and remove
it from the instrument panel.
7. Replace the defective bulb assembly with a
new one of the correct rating. Insert the new
bulb assembly into the rear of the panel and
turn it clockwise a quarter turn to secure it in
place.
NOTE: Replace the defective bulb with a new
bulb of the correct rating for that function: either
a (1.7W) bulb
⑥
for gauge lights, or a (3.4W)
bulb
⑦
for indicator lights.
8. Reinstall the dashboard guard plate.
9. Reattach the hood and reconnect the
headlight electrical harness.
