SECTION 4 – SXM54, SXM60 MOWER DECK
4-9
TRACTOR PREPARATION

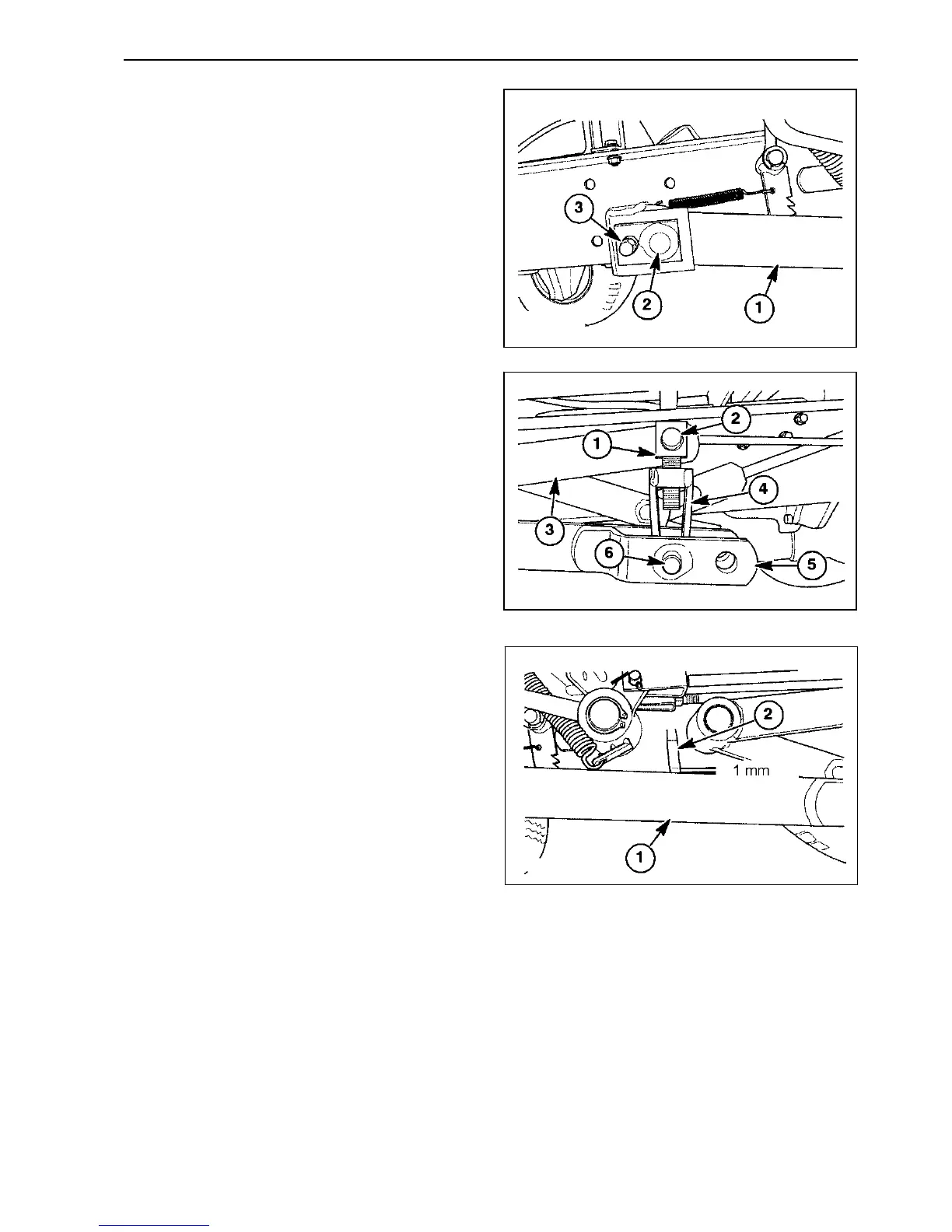

1. Install the left rear link ① on the left side of
the tractor.
2. Install the pin ② through the frame and rear
link. Secure pin with the M8×1.25×20 bolt
③.
3. Place the adjuster ① over the pin ② on the
PTO lift arm ③.
4. Position the lower part of the adjuster ④ in
the rear of the lift link ⑤ and secure with the
pin ⑥ from the inside towards the outside.
5. With the 3 PT control lever in the full "UP"
position, the clearance between the link ①
and stop ② should be 1 mm.
