SECTION 4 – SXM54, SXM60 MOWER DECK
4-10

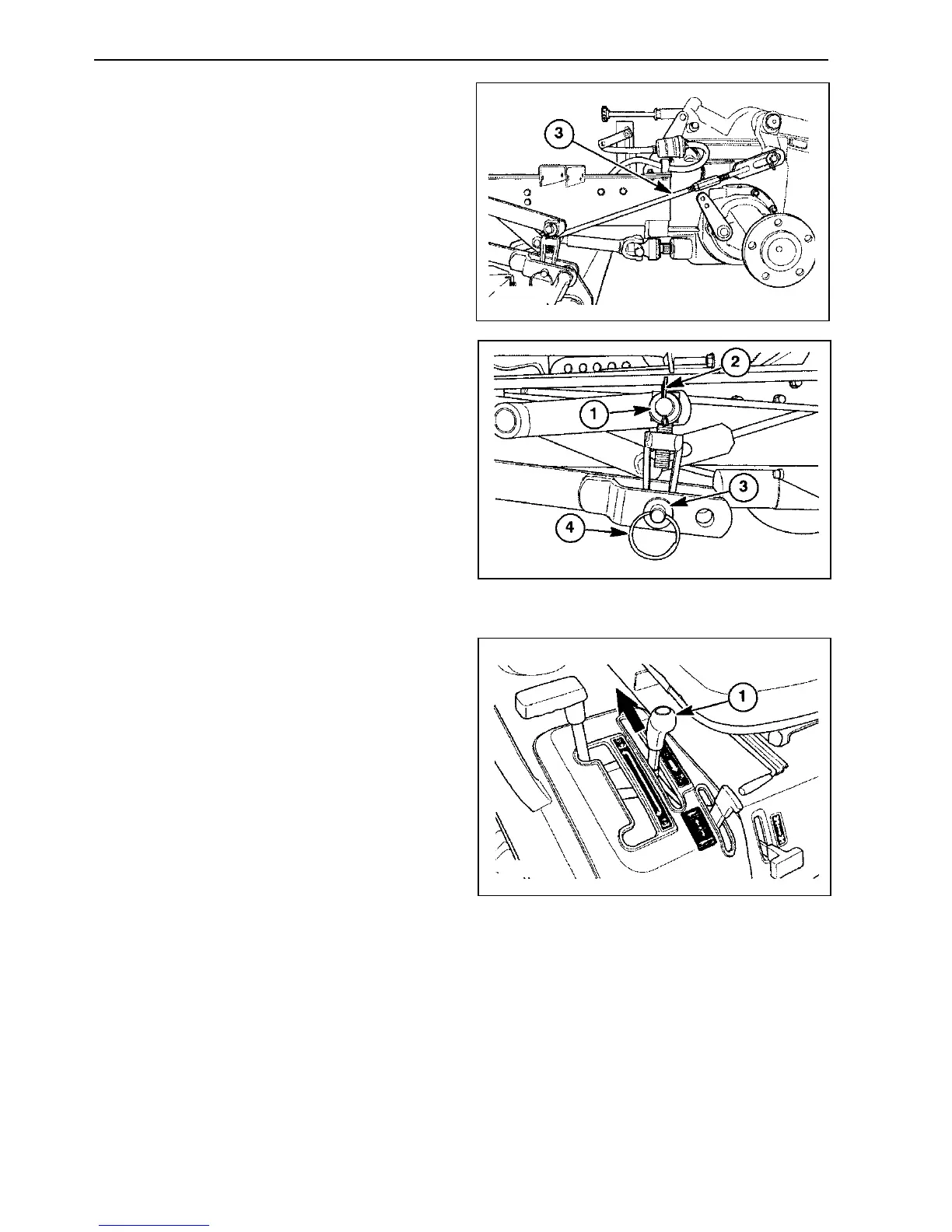

If clearance is not correct adjust primary link ③.
6. With the proper clearance set between the
link arm and stop, secure the top of the
adjuster with a M16 flat washer ① and
cotter pin ②.
7. Secure the lower part of the adjuster to the
link arm with a M16 flat washer ③ and wire
ring ④.
8. Repeat steps 1 - 7 for the right side, rear link.
MOUNTING THE MOWER DECK TO THE
TRACTOR
1. Start the tractor and pull the 3 PT control
lever ① rearward to lift the 3 PT linkage all
the way up.
