30
Installation/removal
Installing the switch unit
3.

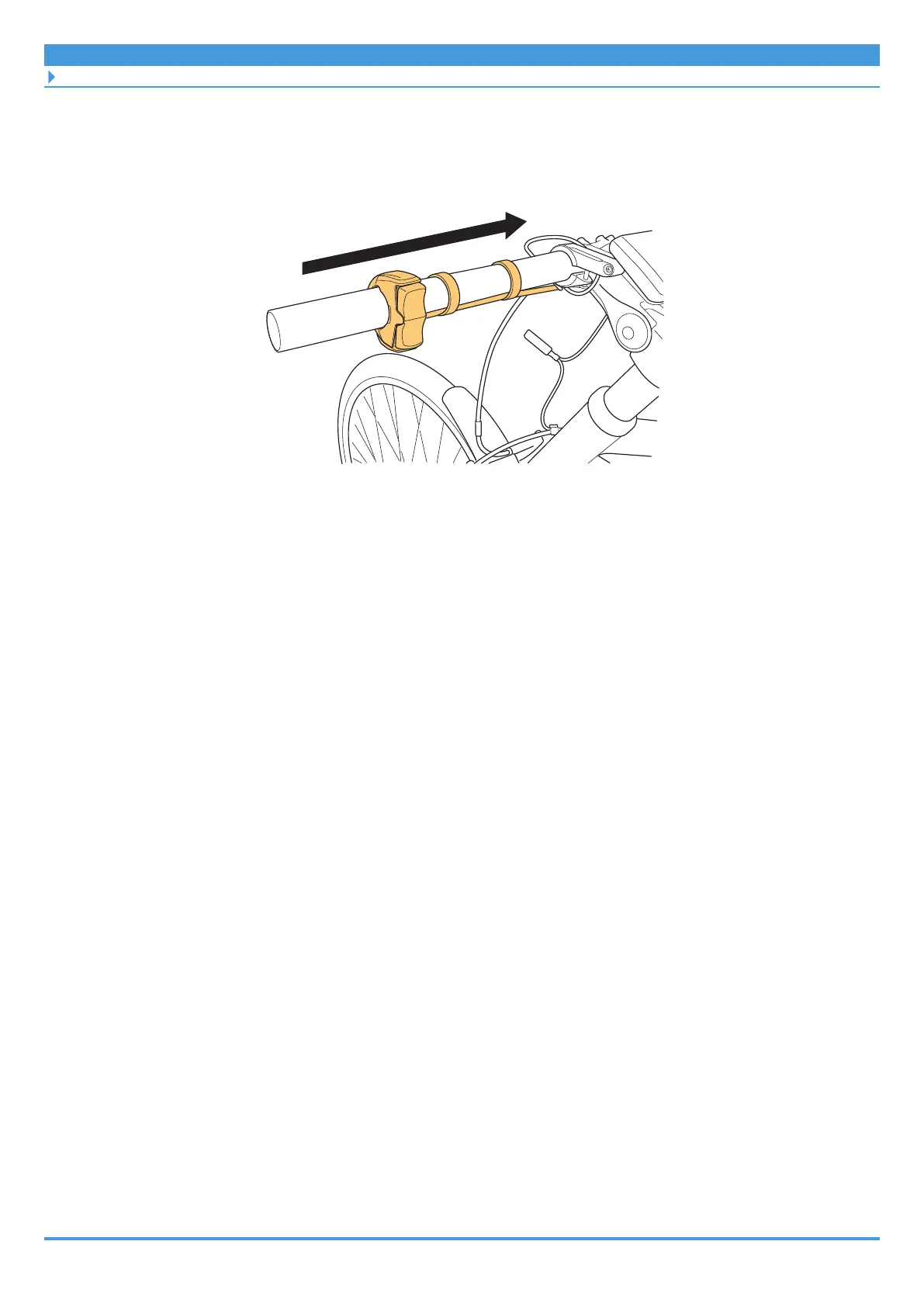

Push the cor
d bands and switch unit along fr
om the edge of the
handlebar
.
Make sure the electric wire of the switch unit is facing downward.
4.
Confirm the location of the clamp scr
ew
, and secur
e the switch unit to
the handlebar
.
•
The location of the clamp screw di
ffers depending on the model.
29
31
Table of Contents
Table of Contents
2
Contents
2
Important Notice
4
To Ensure Safety
5
List of Tools to be Used
10
Installation/Removal
11
Electric Wires
11
Supported Products
11
Conversion Adapter
12
Connecting / Disconnecting the Electric Wire
12
Installing the Cycle Computer/Junction [A]
17
Clamp Band Type / Switch Unit Integrated Type Cycle Computer
17
Bracket Installation Type Cycle Computer
19
Junction [A]
23
Installing the Switch Unit
25
MTB Type Switch Unit
25
2-Switch/3-Switch Type Switch Unit
28
Wiring Around the Cockpit (Clamp Band Type Cycle Computer)
31
Example: Routing the Electric Wire
32
Wiring Around the Cockpit (Switch Unit Integrated Type Cycle Computer)
36
Example: Routing the Electric Wire
37
Wiring Around the Cockpit (Bracket Installation Type Cycle Computer)
37
Example: Routing the Electric Wire
38
Wiring Around the Cockpit (Junction [A])
41
Example: Routing the Electric Wire
42
Connection and Communication with Devices
44
Connection with All SHIMANO STEPS Components
44
Clamp Band Type Cycle Computer
45
Switch Unit Integrated Type Cycle Computer
45
Bracket Installation Type Cycle Computer
46
Junction [A]
47
Single Component Connection
48
Drive Unit Setting Backup Function
48
Maintenance Alert
48
Maintenance
49
Replacing the Clamp Band
49
Gear Shifting Adjustment with the Electronic Gear Shifting Unit [Adjust]
50
Notation Method for Operations
50
Checking the Setting Value
51
Adjusting When the Setting Value Is [0]
52
Adjusting When the Setting Value Is Not [0]
54
Gear Shifting Adjustment When Using Junction [A]
55
Time Settings
58
Troubleshooting
59
