Shimano BB-MT501 - Threaded Bottom Bracket Installation

10
INSTALLATION
Threaded bottom bracket
INSTALLATION

Threaded bottom bracket

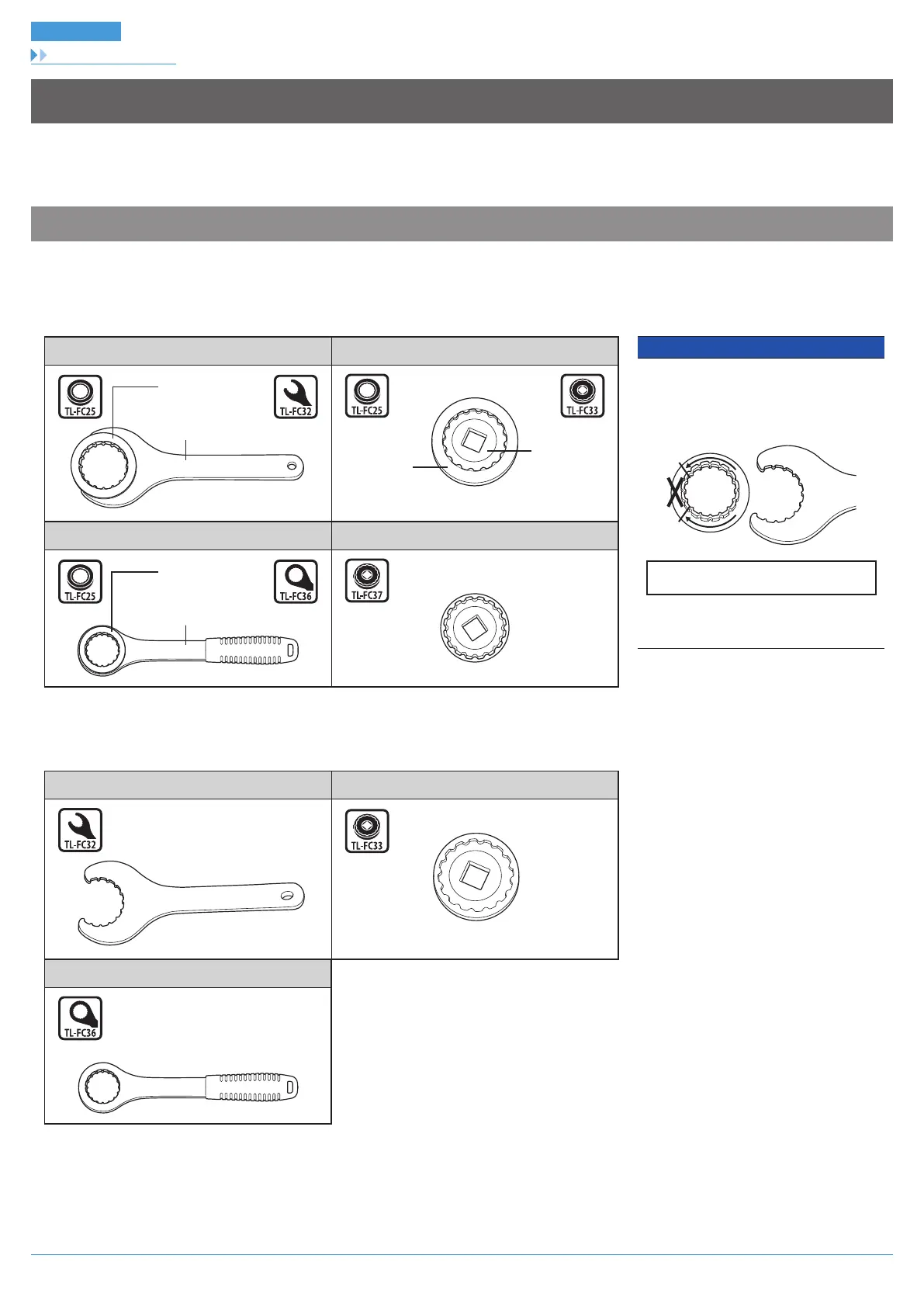

List of tool combinations
Use the tools in the correct combination.
BB-MT800 / BB-MT801
TL-FC25 & TL-FC32 TL-FC25 & TL-FC33
TL-FC25
TL-FC32
TL-FC25
TL-FC33
TL-FC25 & TL-FC36 TL-FC37
TL-FC25
TL-FC36
NOTICE
• For an impact wrench, use TL-FC37. Using
other tools may damage the tool.
• When setting TL-FC25 in TL-FC32, check the
possible setting position.
When setting in TL-FC32, check the possible
setting position.
• Any position is possible when setting to
TL-FC33/FC36.
SM-BB52 / BB-MT501
TL-FC32 TL-FC33
TL-FC36
