13
INSTALLATION
PRESS-FIT BB
PRESS-FIT BB
BB-MT500-PA / BB-MT800-PA

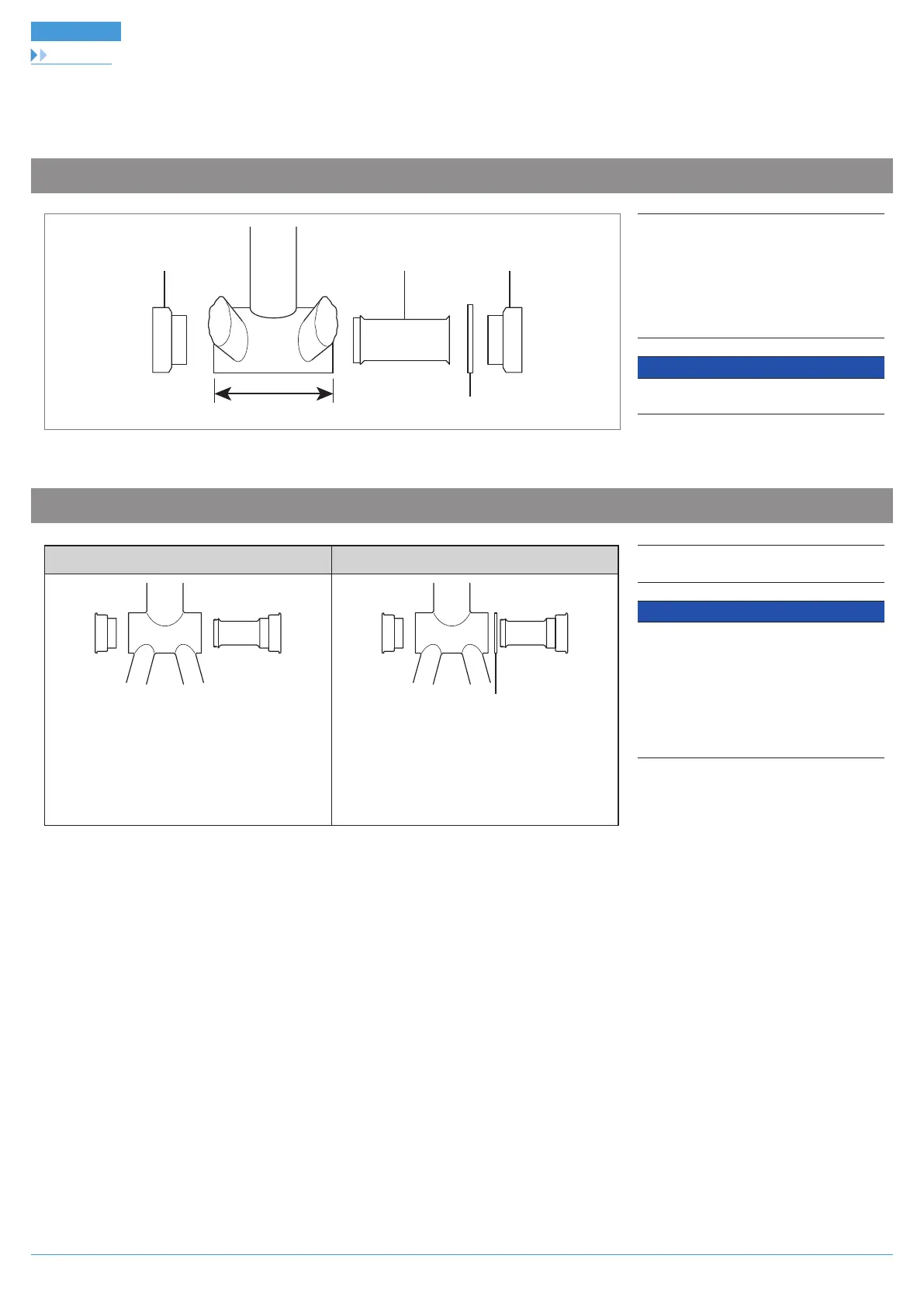

Bottom bracket cups
(A) (C)(B)
(A)
Left-hand cup
(B)
Inner cover
(C)
Right-hand cup
(D)
Bottom bracket shell width
(E)
2.5 mm spacer
NOTICE
Some models do not need spacers.
Assembly example
Bottom bracket shell with 92 mm width Bottom bracket shell with 89.5 mm width
•
The 2.5 mm spacer is not needed for a bottom
bracket shell width of 92 mm.
•
Use the inner cover.
•
For a bottom bracket shell width of 89.5 mm,
insert the 2.5 mm spacer into the right-hand
side (between the frame and the right-hand
cup).
•
Use the inner cover.
(A)
2.5 mm spacer
NOTICE
•
If the frame has openings for the bottom
bracket shell, attach an inner cover sleeve
to prevent foreign objects from getting
inside.
•
If the frame has no openings inside the
bottom bracket shell, it can be installed
without the inner cover sleeve.
