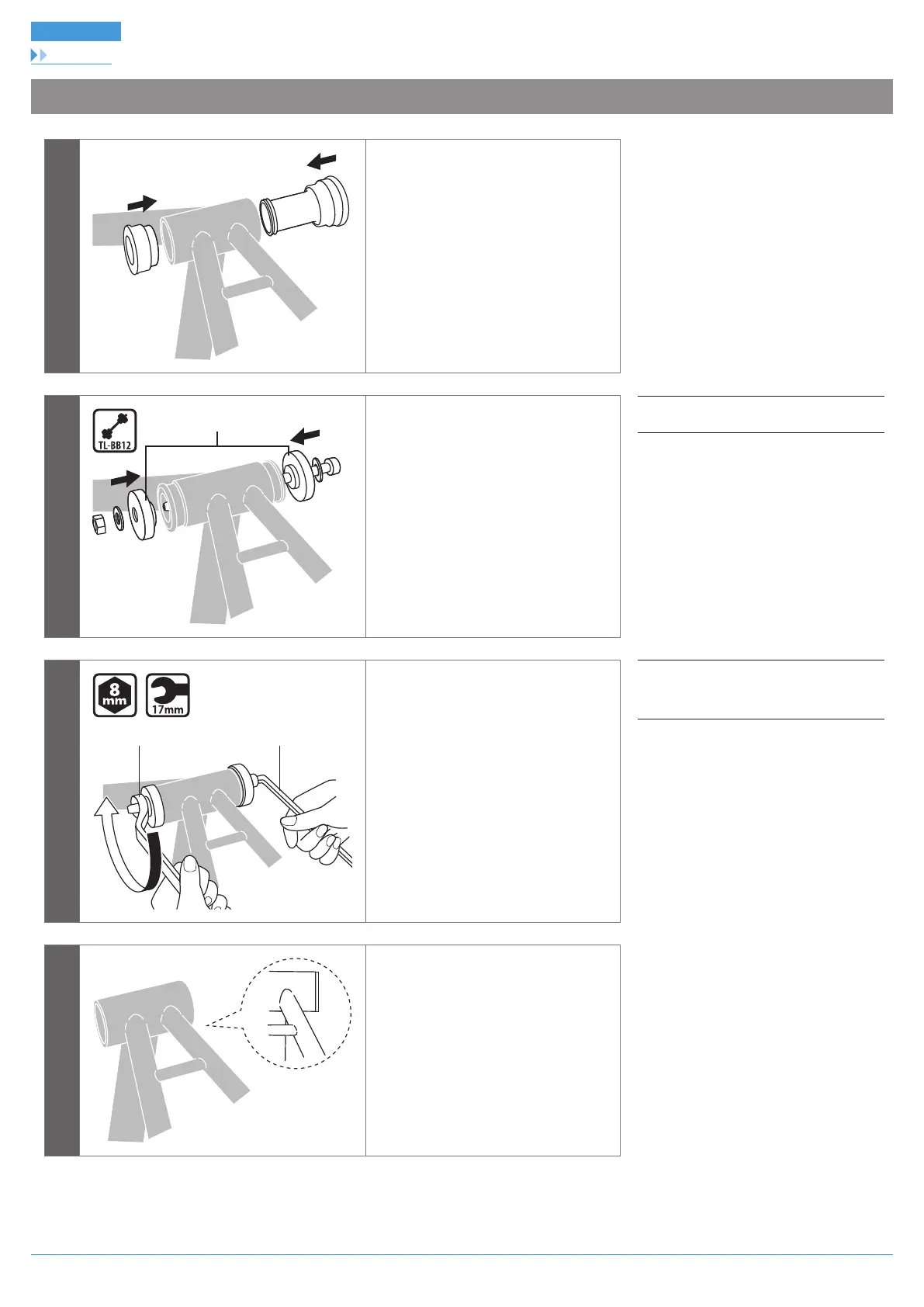

INSTALLATION
PRESS-FIT BB
Installation to the bottom bracket shell
1
Insert the bottom bracket into the
bottom bracket shell.
2
(A)
Insert the SHIMANO original tool into
the bottom bracket.
(A) TL-BB12
3
(A)(B)
Press fit the bottom bracket by
tightening with a spanner while making
sure that the contact surface of the
bottom bracket stays parallel to the
contact surface of the bottom bracket
shell.
(A) 8 mm hexagon wrench
(B) 17 mm spanner
4
Check to confirm that there is no gap
between the bottom bracket and the
bottom bracket shell.
