6
ADJUSTMENT
Adjusting the gripping force
1.
Remove spacers or add pins to adjust the gripping force between the shoes and the pedals.
•

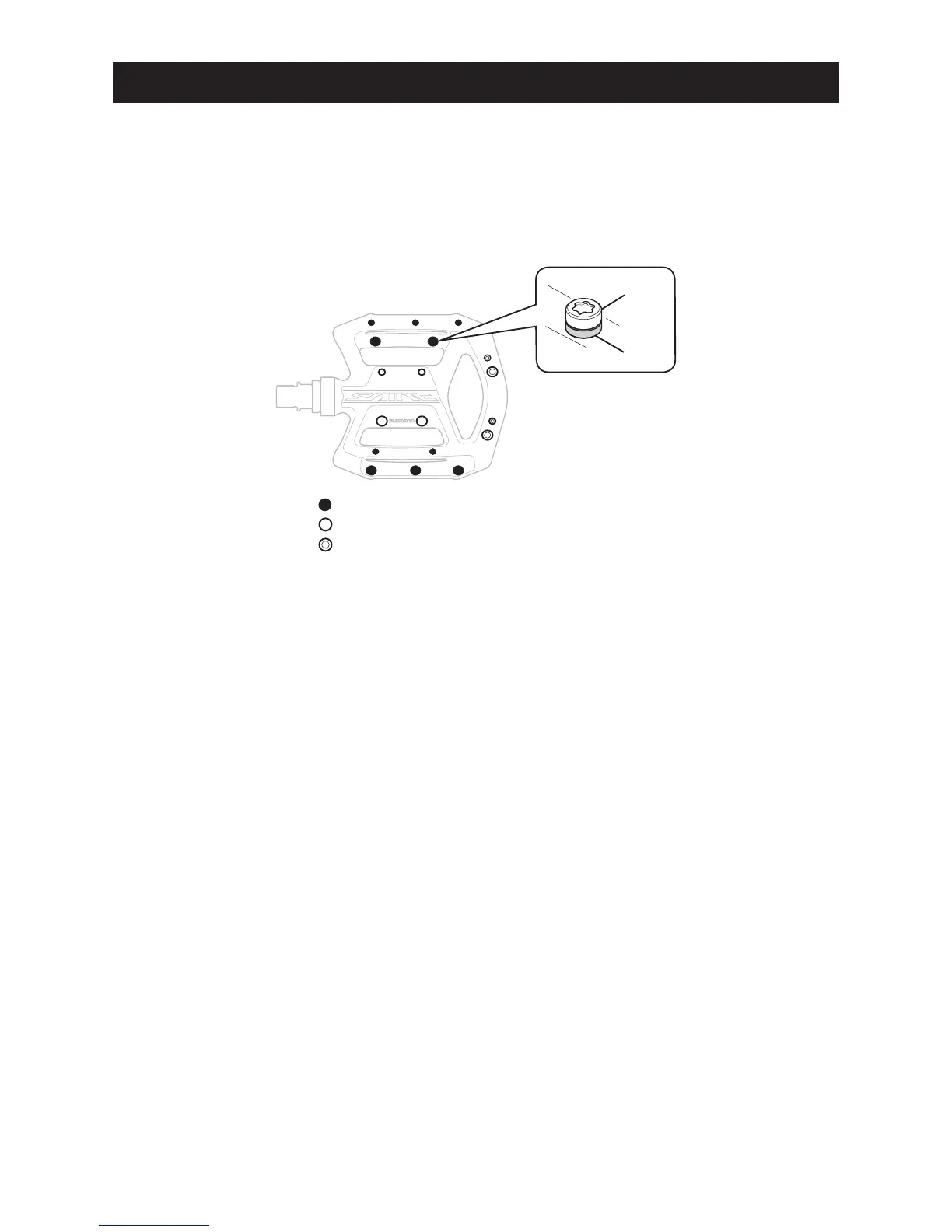

On this pedal, there are 18 pin mounting locations on top and bottom in total. The pedal is shipped with the setup as shown
below.
•
Install spacers to reduce the protrusion of pins.
: Spacers installed (short pins, low gripping forces)
: Spacers not installed (long pins, high gripping forces)
: No pins
Pin
Spacer
