20

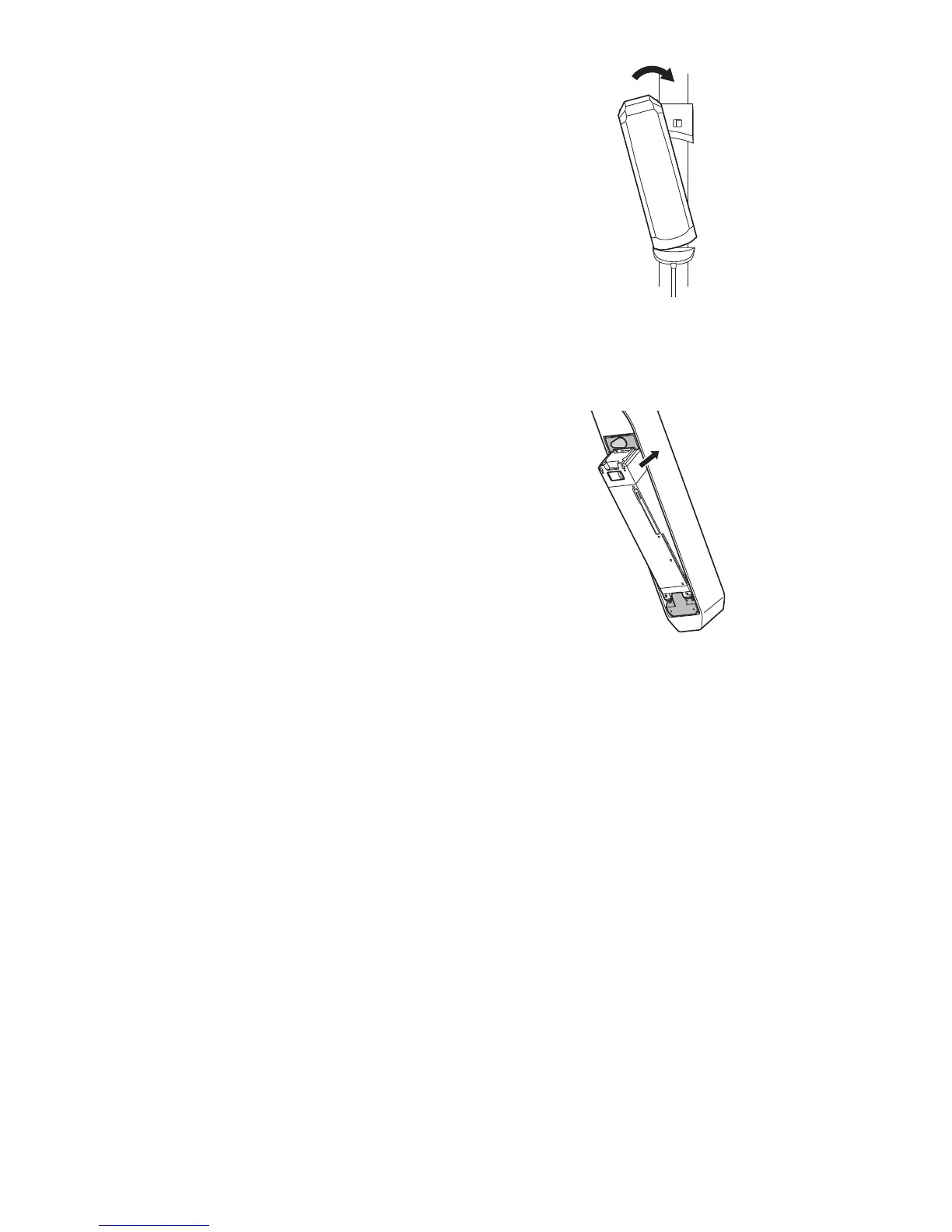

2. Slide the battery.
• Push in the battery until there is a click.
3. Remove the key.
• Return the key to the locked position and then
remove the key.
BT-E8020
This procedure is an example using a frame whose battery is removed/installed from below.
1. Insert the battery from bottom side.
2. Slide the battery.
• Push in the battery until there is a click.
